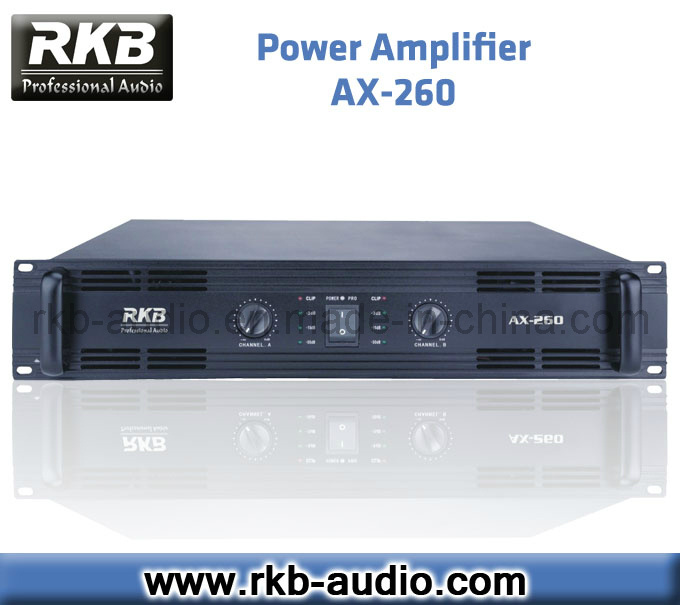

Professional Power Amplifier(AX-260)
AX series professional audio power amplifiers are with high performance and high efficiency. Its excellent audio resolution and extraordinary stability is highly recognized by all users. It adopts high integrated circuit parallel design, greatly reduces the failure rate. The advanced cooling system and low noise design, enables it to protect the power amplifier from overloading and overvoltage; Ensures the speaker equipment working stable and safely under difficult circumstance.
Applications:
*Gymnasium, Large Performance, Disco
*Pub, Nightclub, Club, KTV room etc.
Features:
*With switch buffer protection of overheating, clipping, overcurrent, overload, short circuit.
*Separation of grounding switch
*Working mode conversion ( stereo, mono bridged and connected )
*Input sensitivity selection
*The 30Hz high-pass filter
*Protecting status indication ( overheating / clipping / overcurrent / overload / short circuit )
*With soft clipping process, ensure quality of sound.
*Excellent sound quality and strong power output
*Adopting high integrated parallel circuit design, greatly reduces the breakdown rate
*Advanced cooling system and low noise design
*Professional input and output terminals
## Our main products are: PRO Audio. Including Professional Full Range Speaker / Loudspeaker; Line Array Speaker; Subwoofer / Sub-bass; Power Amplifier; Processor; Mixer; Effector; Microphone; And other Peripheral Equipment. ##
|
Stereo power (RMS/THD1%): |
8 ohms |
600W x 2 |
|
4 ohms |
900W x 2 |
|
2 ohms |
1100W x 2 |
|
Bridge power(RMS/THD1%): |
8 ohms |
1800W |
|
4 ohms |
2000W |
|
Slew rate: |
60v / us |
|
S/N Ratio: |
> 105dB |
|
Total Harmonic Distortion(THD): |
< 0.01% |
|
Intermodulation: |
< 0.01% |
|
Damping factor: |
> 500 |
|
Frequency Response: |
20Hz-20kHz, +/-0.1dB |
|
Input Sensitivity: |
0.775v /1.0v / 1.55v |
|
Input Impedance: |
20k ohms Balanced, 11k ohms Unbalanced |
|
Panel Indicators: |
Signal-Blue, Power-Blue, Peak-Red, Protection-Yellow |
|
Stereo/Mono: |
Stereo, mono bridged and connected |
|
Protection: |
Overheating, clipping, overcurrent, overload, short circuit |
|
Power Supply: |
AC 220v 50~60Hz |
|
Dimensions(WxDxH): |
483 x 418 x 88 mm / 2U |
|
Weight: |
22 Kg |
|
