| Prod Model: |
TRM9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capsule: |
Pure Gold-Coated Large Diaphragm Capsule |
| Signal Transmission: |
Wired |
| Application: |
Recording |
| Transducer Principle: |
Condenser Microphone |
| Sound Field Force: |
Pressure Type |
| Directivity: |
Uni/Bi/Omni/etc |
Product Description

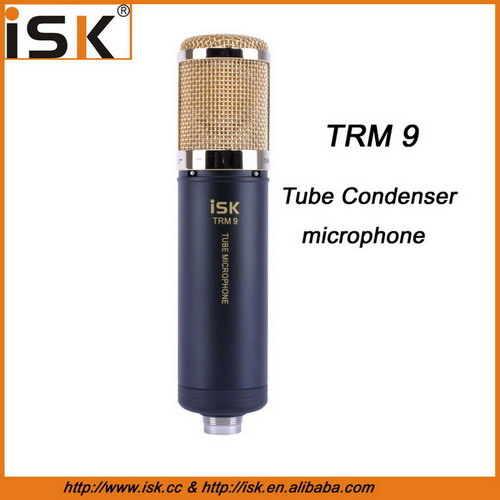

TRM 9 is an extremely high quality vacuum tube microphone featuring a special patented pure gold-coated large diaphragm capsule. Utilising quality electronic circuitry that uses specially imported components plus output transformer, the TRM 9 condenser microphone has an extremely flat frequency response.
Featuring a low cut filter and -10dB low frequency attenuation switche on the microphone body. The nine variations of polar pattern are available by adjusting the control knob on the dedicated phantom power supply for various recording situations. TRM 9 has a wide range of uses in professional situations such as studio recordings, broadcast & TV stations, live sounds, voiceovers and computer recordings.
|
Polar Pattern: |
Uni/Bi/Omni/ect |
|
Frequency Response: |
20Hz-20kHz |
|
Sensitivity: |
-34dB±2dB (0dB=1V/Pa at 1kHz) |
|
Output Impedance: |
50Ω±30% (at 1kHz) |
|
Load Impedance: |
≥1000Ω |
|
Equivalent Noise Level: |
13/14/15dB A |
|
S/N Ratio: |
81/80/79dB |
|
Max. Input SPL: |
135dB (at 1kHz ≤1% T.H.D) |
|
Electrical Current: |
3mA |
|
Weight: |
502g |
|
Dimensions: |
50.5x210mm |
