Guangzhou Ruizun Audio Technology Co., Ltd. >> Professional Digital Audio Processor

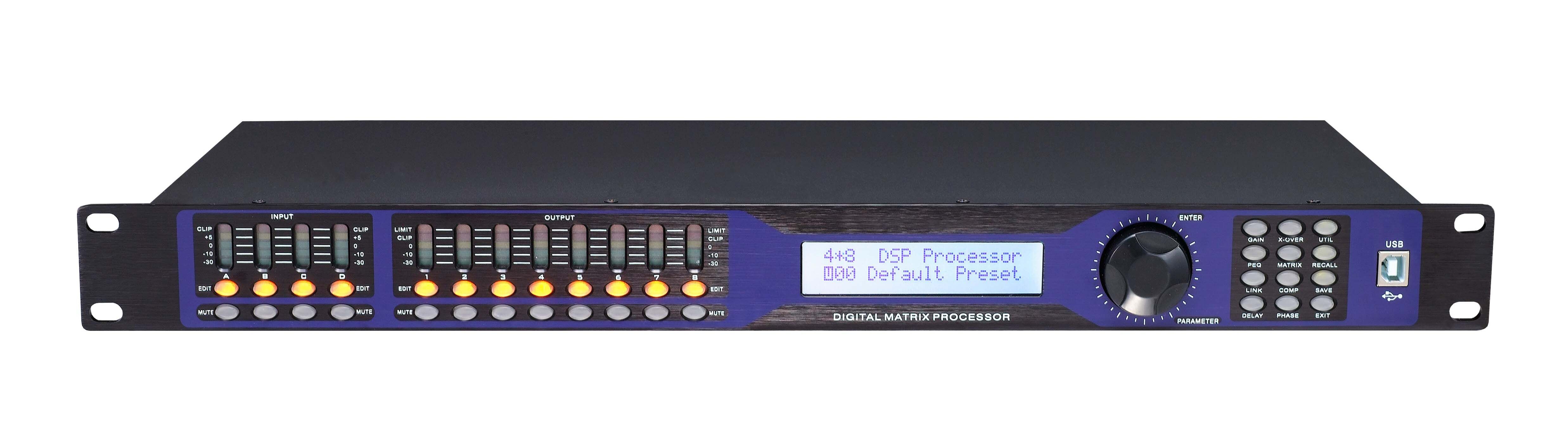

Professional Digital Audio Processor

Professional Digital Audio Processor
Price: US $ 100-350/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: DP48 I
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Digital Audio Processor: Digital Audio Processor
Hi-Fi: Hi-Fi
Operation Mode: Wire / Remote Control
Speaker Material: Wood
Application: Commercial
Certification: CE
Monitor: LED Screen
THD: <0.03%
Noise: 85 Db
Speaker System: 4 Channels

Product Description

General information:

4 In X 8 Out Speaker Processor can connect with PC .consist of four inputs and eight outputs. It shall utilize 32-bit double-precision fixed-point DSP filtering with 24 bit, 48kHz, 128X oversampling delta-sigma A/D and D/A converters. Digital processing includes Gain, Parametric EQ, Shelving Filters, Time Delay, Crossover Functions, Compression, Limiting, and Matrix Routing.

Specification

Input connector:4* Female XLR
Output connector8* male XLR
Input impedance20KΩ
Output impedance100Ω
Easy handlingcan connect with PC,  USB inputs ( front panel) and two RS-485 inputs( rear panel)
Input level  ≤+25dBu
Frequency response 20Hz-20KHz(-0.5dB)
Interchannel Crosstalk >110dB
THD<0.01% OUTPUT=0dBu/1KHz
Dynamic Range >110dB(1KHz)
Processor192KHZ Linked Stereo DSP Processing for ease of use , 32 bit DSP processing, -24-Bit A/D and D/A performance
Power Requirements: ≤25 WattsOperating Voltage: AC110V/220V   56/60 Hz,
Packing562 x 362 x 9mm
Weight4.6kgs

*1.     96kHz sampling rate, 32-bit DSP process, 24-bit AD/DA convert
2 .     Input processing includes Gain, Mute, LINK, high-cut, low-cut, 8 PEQ, noise gate, Phase, Delay and so on.
3.     Output processing includes crossover, 9 PEQ, Gain, Mute, Compressor/ Limiter, Phase, Delay, link and  so  on.
4.     All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEQ, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2
5.     All inputs / outputs can do Matrix.,and all the input and output channel name can be changed
6     All the input and output with independent phase curve adjust function, PEQ style choose ALLPASS1 is 180. Curve adjust,,ALLPASS2 is 360. Curve adjust

7     All high cut, low-cut filter , crossover type can be select by Butterworth,Link witz-Riley,Bessel, slope can be chosen from -6dB/Oct to -48dB/Oct

8     Compressor/ limiter threshold, ratio , attached time and released time can be adjustment for inputs

9.     Maximal delay time 680ms for all input/out channels.
10.      Pre settings can copy for every single channel, every channel can do link adjust
11.      every input and output channel PEQ curve adjusting picture can be found when you are in any input and output
12.      Inside single generator (pink, white noise and 20~20K sine wave, amplitude adjustable )
13.      Front panel has level indicator for input/output ,USB port, RS232,485 and net ports remote control at rear panel. Easy for user's operations.
14.      32 user presets can be save and recall, maximal 256 units can be link together via ID settings. Password protection function for high level applications.


Guangzhou Ruizun Audio Technology Co., Ltd. is a professional manufacturer and experienced exporter of audio products. We are specialized in producing all kinds of speakers and related audio accessories. Totally, we have more than 180 items for global market including Latin American, Middle East, Africa and other international markets with good reputation.

We have over 15 years experience in the audio system industry. We are not only the manufacturer, but also the professional audio designer. We are qualified and strong on site projects management, advising our clients the best solutions for their audio and visual requirements, and responsible for Installation of systems at various venues, providing backup, maintenance service and staff training on the equipment for all installations.

Our Company Missions are " Quality First, honesty and faithfully, continuous Improvement, customer satisfaction, win-win business for long term relationship". We are always welcomed and trusted by customers for superior quality goods, reasonable price and good after-sales services.

Quality First:

Because the issue of quality has always been our highest priority, Prince follows the standard of ISO 9001, which includes purchasing, processing, assembling, packing and shipping.

Continuous Improvement:

PRINCE is a business that is constantly looking at ways to progress. We set goals to improve our testing equipment, our production methods and our products. Our testing and inspection includes: Surface checking, , sound testing, function testing, performance testing in whole set audio system

Customer Satisfaction:

PRINCE believes that business development and growth is heavily reliant on customer satisfaction. PRINCE is fairly unique as a manufacturer as it owns its own full forging plant. Because of this, we provide our customers with a one-stop-solution. Once the customer advises us of their requirements and places their order, we can source other related audio products, which can save clients time and shipping cost.
