Prod Model: |
DSP1622 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Channel: |
16CH |
Warranty: |
3 Years |
Color: |
Silver |
Certification: |
CE Proved |
Effect: |
32 Kinds Dsp LCD Display |
Application: |
Commercial |
THD: |
0.005%-0.01% |
Noise: |
<95dB |
Product Description

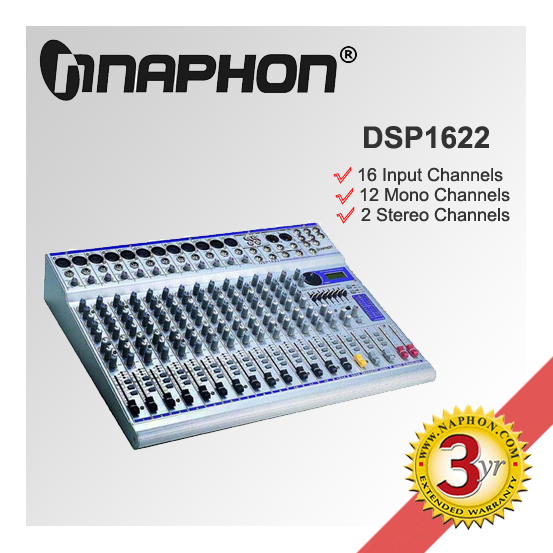

Professional Audio Mixer Console
*Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio;
*Lowest possible distortion 0.0007%(20Hz-20kHz);
*Integrated 24 bit digital stereo DSP processor with 32 Preset including reverb, delay, chorus, tube distortion, channel for easy to use applications;
*7 band stereo graphic EQ allow precise frequency correction of monitor or main mixer;
*2 fully equipped stereo input channels, 3 band EQ. MID Frequency control;
*Inserts on each MONO channel for flexible connection of outboard equipment high headroom line input;
*3 Aux send per channel: 1 pre/post fader for monitoring, 1 post fader for external send, 1 post fader for DSP processor;
*Clip indication and gain level set LED plus mute switches for each channel allow fast and accurate level setting;
*Two sub buses and output direct or mix to main buses;
*Balanced main mix output with gold-plated XLR Connectors, headphone/control room output and stereo tape outputs;
*Extremely rugged steel construction ensures long life even under most demanding conditions;
*Switchable +48V phantom power for condenser microphone;
*Long-wearing 60mm logarithmic-taper faders and sealed rotary controls;
*Response plus lowest possible power consumption for energy saving.
Model |
DSP0822 |
DSP1222 |
DSP1622 |
DSP2022 |
DSP2422 |
DSP2822 |
Mono Input Channels |
Balance MIC or Line Input |
Stereo Input Channels |
Balance or Unbalance Stereo Line Input |
Frequency Response |
10Hz~30KHz +/-3db 20Hz~20KHz +/-0.5db |
MIC Sensitivity(22Hz-22KHz) |
-129.5db, 150 Ohm Source; -132db, Input Short Circuit |
Gain Adjustable Range |
+10db~+60db |
Line Input Range |
-40db~+10db |
SNR |
More than or equal to 113db |
THD |
Less than or equal to 0.01%(+4db, 1KHz) |
EQ |
HF:12KHz+/-15db MF:5KHz+/-15db LF:80Hz+/-15db |
Max Input |
+22db |
Max Output |
+22db Balance, +16db Unbalance |
Effector |
24bit DSP, Multi-effect Processor, 48KHz Sampling Frequency, 32 effect modes memory, LCD display |
Phantom Power |
48VDC |
Power Supply |
AC100~120V/200~240V 50/60Hz |
Dimensions |
43.00x44.50
x15.50CM |
54.00x44.50
x15.50CM |
64.50x44.50
x15.50CM |
75.50x44.50
x15.50CM |
87.50x44.50
x17.50CM |
95.00x44.50
x17.50CM |
Gross Weight |
10.50KGS |
12.00KGS |
13.50KGS |
15.50KGS |
17.50KGS |
19.50KGS |
