| Prod Model: |
DC8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |

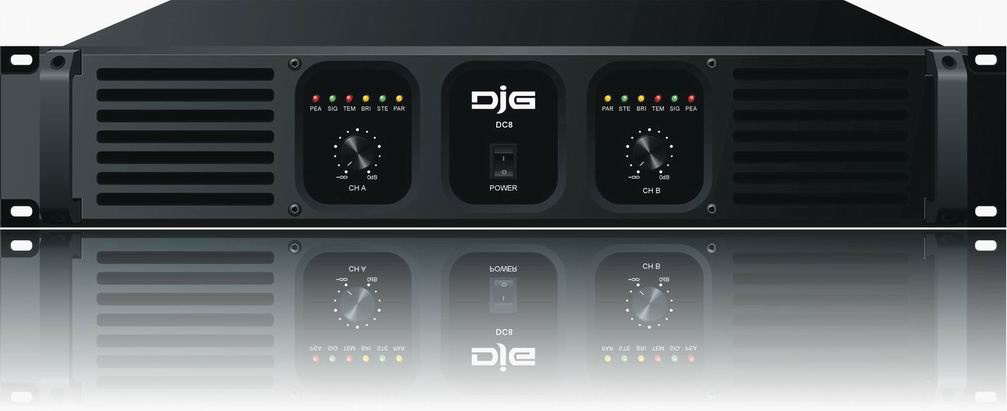

Product Description
Our Co. Engaged in professional amplifier, superior performance, S/n ratio more than 110dB or even higher, damping fact over1500, classic H type circuit design, higt efficiency power output, provide OEM service to many country. If u interesting in it, pls contanct me! Thanks!
1,the surround sound amplifier is an analog amplifier with transformer
2,2U height ,and fine design
3,specifications are as following :
THD+N
Rate power,1KHz
<0.025%
Smpte IMD
Rate power,60Hz/7kHz-4/1
<0.075%
Frequency response
Rate power,20Hz-20kHz
< +/- 0.25dB
Phase response
Rate power,20Hz-20kHz
< +/- 8 Degree
Signal to noise ratio
1KHz,0.775V input, A weight,
>110dB
Damping factor
Rate power,63Hz
>1500
Controlled slew rate
1KHz Tone burst,40dB Gain
>100V/us
Input impedance
Rate power,1KHz,Balanced input
20kohm
Lowest loaded impedance
Stereo
>1.6 ohm
Bridge
>3.2 ohm
Dimensions
88mm X 482mm X 400mm
