| Prod Model: |
PAP60H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Power Amplifier |
| Input Sensitivity: |
500mv |
| Power Supply: |
110~125V AC or 220~230V AC, 50/60Hz |
| Rated Power Output: |
60W |
| S/N Ratio: |
105db |
| Frequency Response: |
50~20, 000Hz(±3db) |
| Weight: |
6.58kg |
| Color: |
Black |
| Size(W*H*D): |
210mm X 93mm X 357mm |
| Working Temperature: |
-10 to +40 |
| Application: |
Commercial |
| THD: |
0.005%-0.01% |
| Noise: |
<95dB |
| Certification: |
UL |
Product Description

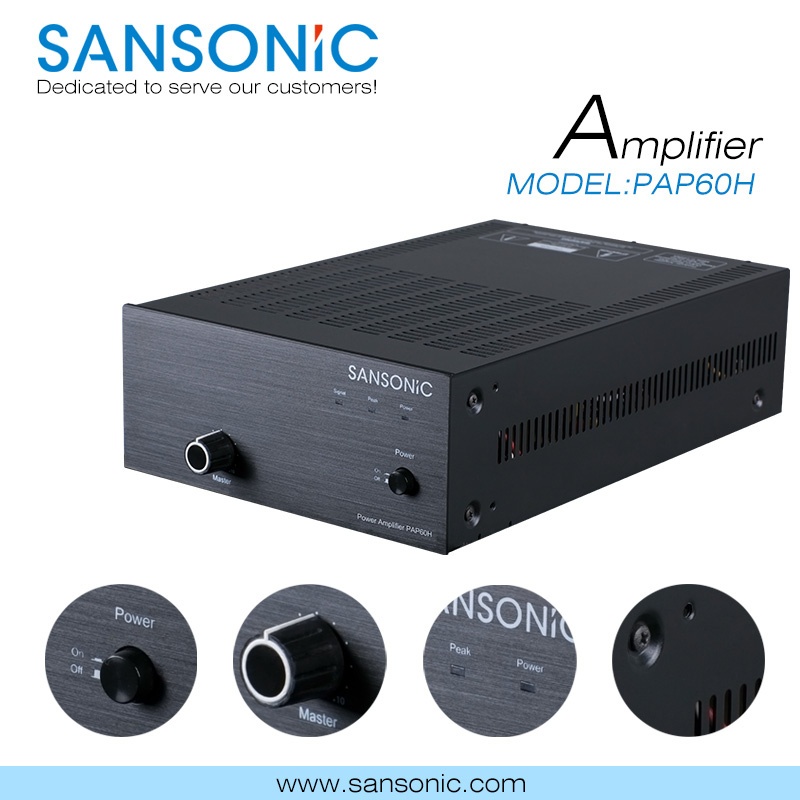

Pro audio amplifier for commercial public address
PAP60H series is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 15W/30W/60W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 25v, 70v, 100v and 40ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. Unbalanced 1 TRS type line input, unbalanced 1 line TRS output
3. Balanced 1 ×LR type line input, balanced 1 ×LR type line output
4. The panel has volume adjustment knob, the back board has switch, turn off the switch when many equipment are connected to eliminate the circuit noise of earth wire
5. Build-in short circuit, overload and overheat automatic protection
6.Two rated power output: Constant pressure output and Scheduled output resistance
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Physic and environment parameter
Input sensitivity: 500mV
Power supply: 110~125V AC or 220~230V AC,50/60Hz
Rated power output: 60W
THD: Less than 1% at 1 kHz
Liner output: Unbalanced 600ΩRCA line
Direct output: 60 watts RMS 4Ω direct coupled/70.7V and 100V transformer coupled
Balanced output: 500mV (6dBV) 20kΩ Balanced Line (Phoenix)
Liner input: 500mV (6dBV) 20kΩ Unbalanced (RCA)
Power supply:
110v~125V or 220~230V switch
Port allocation:
Balanced or RCA input, impedance output, power supply voltage selected by switch allocation;
Specification
MODEL
PAP15H
PAP30H
PAP60H
Power Requiement
110~125V AC or 220~230V AC,50/60Hz,
Rated output
15W
30W
60W
Distortion
Less than 1% at 1kHz
Frequency Response
50~20,000Hz(±3dB)
Outputs
Line Out
Unbalanced 600Ω RCA line.
Direct Out
60 watts RMS 4Ω direct coupled
70.7V and 100V transformer coupled
Inputs
Balanced Line Input
500mV (–6dBV) 20kΩ Balanced Line (Phoenix)
Line In
500mV (–6dBV) 20kΩ Unbalanced (RCA)
Operating Temperature
-10 to +40
Color
black
Dimensions(W*H*D)
210mm x 93mm x 357mm
Weight
5.3kg
5.6kg
6.58kg
