Prod Model: |
TJSUN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
1800mm: |
58mm |
Structure: |
Separate Type |
Pressure: |
Pressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Composition: |
Connecting Pipe |
Certification: |
Solar Keymark /SRCC/ SABS |
Product Description

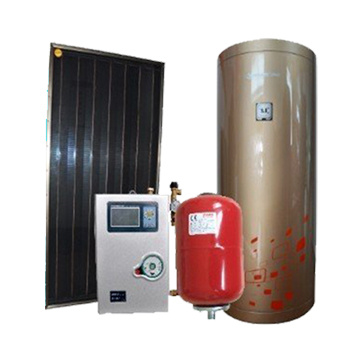

Solar water heaters, split pressure solar water heaters
1) The pipeline is made of red copper and conducted by heat transfer medium liquid. Water can't flow in the vacuum tubes and is operated when confined. The crust uses aluminum alloy mould material of high strength with airflow design. It is furnished in good style
2) Temperature preservation is equipped with standard electric water heater setting, automatic temperature control exchanger, with increased anode magnesium bar stick to prevent furring. It is the true two-in-one
3) The insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation
4) The product successfully carries out the installation of separation according to fabricating yard and is harmoniously blended with architecture
5) The equipments of separated solar water heater is composed by heat collector, storage tank, electric control device, hot water mix unit and fittings for circulation and installation
Advantages:
1) Use in any time: It adopts advanced design idea and integrates with high efficiency pre-heated patent technique, so it can warm the cold water rapidly when it flows through special pipe. It can overcome the demerit its of traditional SWH, such as slow heating, long waiting time.
2) More Capacity: We adopt special exchanging heat mode, it avoids mixed effect, so cold water can be heated at any moment.
3) High hydraulic pressure: The hydraulic pressure is same as tap water, it is very suitable for tired person.
4) Easy operation: It can supply water automatically, you can take it easy and enjoy good time.
5) Economical and Environment protecting: There is no pollution when it is working since it depends on sunshine, Green and economical
6) Fashionable: The appearance is fashionale and it can great integrate with your fitment.
Split Pressurized Solar Water Heater System |
Item | Stainless Steel Tank | Heat-pipe Tubes | Solar Collector | Solar Station |
Volume | Inner Tank | Outer Tank | Heat Insulating | Length(mm) | Diameter(mm) | QTY(pcs) |
TJH-58/1800-15 | 100L | Mg stick,Electrical heating,Electrical control box,Temperature controller,Switch,P/T valve,Pressure relief valve,one coil or two coils | 1800 | 58 | 15 | TJH-58-1800-15 | 220V voltage,circulating pump |
TJH-58/1800-20 | 150L | 1800 | 58 | 20 | TJH-58/1800-20 | 220V voltage,circulating pump |
TJH-58/1800-24 | 200L | 1800 | 58 | 24 | TJH-58/1800-24 | 220V voltage,circulating pump |
TJH-58/1800-30 | 250L | 1800 | 58 | 30 | TJH-58/1800-30 | 220V voltage,circulating pump |
TJH-58/1800-36 | 300L | 1800 | 58 | 36 | TJH-58/1800-36 | 220V voltage,circulating pump |
