Professional Audio Amplifier,

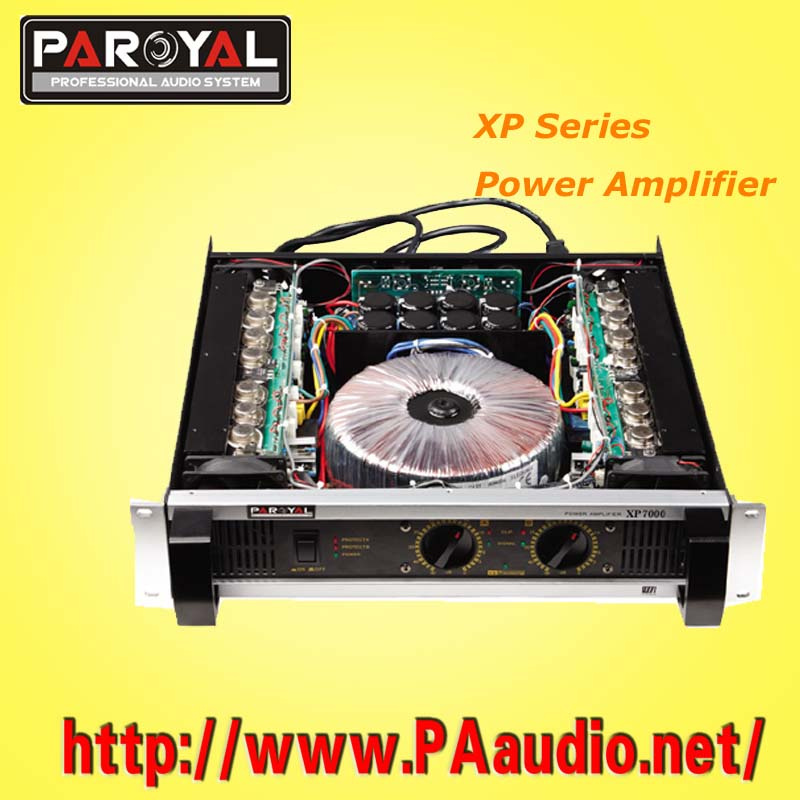

Power Amplifier XP1000, XP2500 Amplifier, XP5000 Amplifier, XP7000 amplifier, Power amplifier XP3500, XP5000(M) moto Tansistor IC, XP7000M Amplifier Moto Tansistor IC, 1100W 8 OHM, 1300W 8 Ohms
|
SPECIFICATIONS |
XP5000 (M) Moto IC |
XP7000(M) Moto IC |
|
|
STEREO MODE (Both Channels Driven) |
|
8 ohms |
|
|
|
FTC 20Hz -20 kHz, 0.1% THD |
1100 W |
1300 W |
|
4 ohms |
|
|
|
FTC20 Hz -20 kHz, 0.1% THD |
1650 W |
1950 W |
|
2 ohms |
|
|
|
EIA 1 kHz, 1% THD |
2600W |
3200 W |
|
|
BRIDGE MONO MODE |
|
8 ohms |
|
|
|
FTC 20Hz-20kHz, 0.1%THD |
3200W |
3800 W |
|
4 ohms |
|
|
|
EIA 1 kHz, 1% THD |
4800 W |
6000W |
|
Signal to Noise, 20 Hz-20kHz |
106 dB |
108 dB |
|
Distortion (SMPTE-IM) |
Less than 0.01% |
Less than 0.02% |
|
Input Sensitivity @ 8 ohms |
1.15V (+3.4 dBu) |
1.16V (+3.5 dBu) |
|
Voltage Gain |
52x (37 dB) |
54x (40 dB) |
|
Power Requirements |
20A |
20A |
|
1/8 power pink noise at 4 ohms |
|
|
ALL MODELS |
|
Distortion (Typical) |
|
|
20Hz -20kHz: 10dB below rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
1.0 kHz and below: full rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
Frequency Response |
20 Hz-20 kHz, ± 1 dB |
|
-3 dB points: 5 Hz - 50 kHz |
|
Damping Factor, 1 kHz and below |
Greater than 300 at 8 ohms |
|
Input Impedance |
10k ohms unbalanced, 20k ohms balanced |
|
Input Clipping |
10 Vrms (+22 dB) |
|
Cooling |
Continuously variable-speed fan, rear-to-front air flow |
|
Connectors, each channel |
Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) |
|
TRS tip and XLR (pin 2 positive) |
|
Output: touch-proof binding posts and Neutrik® Speakon® |
|
Controls |
Front: AC switch, Ch. 1 and Ch. 2 gain knobs |
|
Rear: 10-position DIP switch |
|
Indicators |
Power-On: Green LED |
|
Signal: Yellow LED (1 per channel) |
|
Clip: Red LED (1 per channel) |
|
Amplifier Protection |
Stable into reactive or mismatched loads |
|
Load Protection |
On/off muting, AC coupling , triac crowbar , on each channel) |
|
Power Requirements |
100, 120, 230 VAC, 50-60 Hz |
|
Dimensions |
480*480*100(mm) |
