| Prod Model: |
XLS202 / XLS402 / XLS602 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

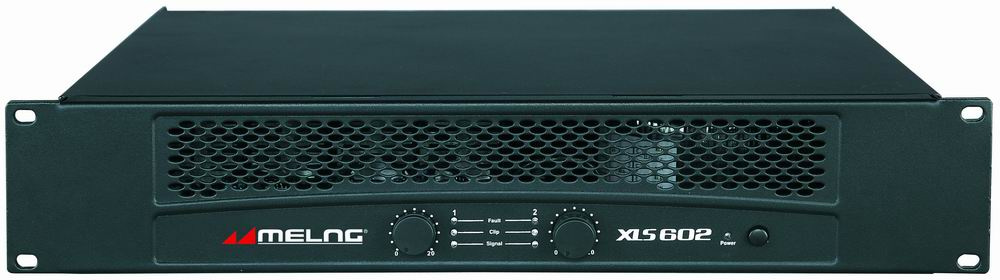

Power Amplifier
*XLS series adopt hard full-steel chassis, designed with high efficient forced-air fans prevent excessive thermal buildup.
*on front fanel, there are 2 accurate level indicated controlling knob, 1 power switch and 4 LED indicators, showing wave cutting on each channel, showing power supply and default state.
*XLS series amplifier are very suitable for long working time environment.
|
Model |
XLS202 |
XLS402 |
XLS602 |
XLS802 |
XLS5000 |
|
8Ω Stereo Power |
200W |
300W |
380W |
500W |
1100W |
|
4Ω Stereo Power |
300W |
450W |
600W |
800W |
1800W |
|
2Ω Stereo Power |
330W |
570W |
840W |
1050W |
2500W |
|
8Ω BTL |
600W |
900W |
1200W |
1600W |
3600W |
|
4Ω BTL |
660W |
1600W |
1680W |
2100W |
5000W |
|
Input Sensitivity |
1.25V with full power output under 4Ω (RMS rated) |
|
Frequency Response |
20Hz-20KHz, +0dB, -0dB |
|
S/N Ratio |
(20Hz-20KHz) A weighted, full power output > 98dB; unweighted, full power output > 93dB |
|
THD+N |
< 0.5% |
|
IMD |
0.3%(-40dB) " > when full power output, 60Hz and 7kHz, 4: 1 two Rectangle Wave, > 0.3%(-40dB) |
|
Damping Factor (8Ω ) |
10Hz-400Hz; > 200 |
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
Load Impedance |
when it' s on stereo output, each channel has rated loaded impedance 2Ω -8Ω , and MONO is 4Ω -8Ω |
Enping S-paul Audio Factory specializes in producing amplifiers, sound-boxes, tune-registers and other facilities of audio. We are located in the famed city (Enping) next to the Pearl River, and very close to Guangzhou, Hk, Macao and the 325 Nation Highway. The traffic is very convenient.
We own advanced technology, first-rated producing facilities and reliant quality guarantee. During the recent years, we invented a loads of new audio products according to the trends of market, which are with high technology and hot sold. Our products are created by special technology. From the raw materials to the made ones, each links are through strict quality inspection to ensure the pretty figures, outstanding performance, and reasonable price of products. Our brands are always dominant and big sold wherever home and abroad and earned the high praises among the consumers.
Our Ideal is " Perfect products, reasonable prices, wonderful service" Welcome all the clients to enter business with us wherever home and abroad.
