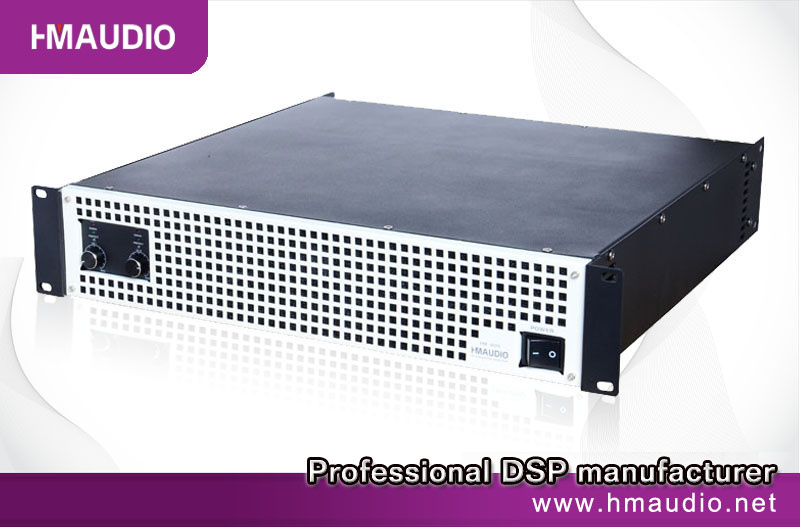

Features:
1. The amplifier is designed for the stage, KTV & Hi-house, disco & other places of Hi-power amplifier.
2. Using the PRO-amplifier circuit high reliability, SUB-THD of the balance, Hi-power Hi-Fi. S/N is fine, hi-damping.
3. With zero THD limiting circuit & perfect overload, over-current, short & excited, overheating, switch machine mute, DC protection & other smart circuit.
4. Strong cold heat system can be to the machine more reliability.
5. Hi-power audio amplifier tube can be to reserve stronger.
6. Has 300-1000W more specifications, Hi-Fi sound, Hi-freq, Hi-Fi Hi-damping.
7. Large transformers with hi-efficiency, Hi-capacity powe supply filtering capacitor to protect the amplifier output at full load is very SUB-THD, SUB-freq control stronger.
|
Technical Parameter |
|
Items |
Parameter |
Test |
|
Output Power |
|
HM400 |
HM500 |
HM700 |
HM800 |
HM306 |
HM408 |
1KHz OdB input |
|
8Ω |
2× 400W |
2× 500W |
2× 700W |
2× 800W |
2× 300W+600W |
2× 400W+800W |
|
4Ω |
2× 600W |
2× 750W |
2× 1000W |
2× 1200W |
2× 450W+900W |
2× 600W+1200W |
|
8Ω |
1000W |
1350W |
1900W |
2400W |
|
|
|
S/N |
> 103dB |
1KHz OdB input |
|
THD |
< 0.01% |
1KHz OdB |
|
Sensitivity |
0.775(0dB) |
|
(Ω )Input impedance |
20KΩ Balance |
damping |
> 200 @ 8Ω |
|
Frequency |
20Hz-20KHz(+0dB~-0.5dB, 1kHz) |
|
Channel resolution |
> 95dB |
cool mode |
|
|
Weight |
NET Weight |
|
|
19.5 KG |
|
21.5 KG |
|
|
|
Total Weight |
|
|
20KG |
|
22.2 KG |
|
|
|
RMS |
|
1300W |
1650W |
2300W |
2800W |
2500W |
3000W |
|
|
Dimensions(W*H*D) |
Unit Dimensions |
480*440*90MM |
|
Pack Dimensions |
615*600*150MM |
Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.
HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
