Popular 10 Ton Block Ice Machine with Gea Bock Compressors

Prod Model:	ZB5T-R4W
Product Name:	10t Tube Ice Maker
Compressor Brand:	Bitzer or Bock
Compressor Refrigeration Capacity:	74.3kw
Operating Power:	29.8kw
Installation Power:	40kw
Tube Ice Temp.:	-10°c
Tube Ice Diameter:	29mm
Condensing Temp:	42°c
Design Ambient Temp:	35°c
Design Water Inlet Temp.:	25°c
Certification:	CE
Condition:	New
Ice Shape:	Tube Ice

Product Description

Popular 10 ton block ice machine with Gea Bock compressors

Snowell Block ice Maker plant advantages:
1.Two options available
A:Freon(R507,R404A,R22)refrigerant is used in small or medium capacity flake ice machines
B:Ammonia(R717) is mostly used in large capacity flake ice system
2.Safety and Sanitation
3.High reliablitity and low breakdwon rate
4.High efficiency and energy saving
5.Simple installment,operation and maintenance
6.Great adaptablility and stable quality
7.Outstanding and smart electroical control system.


Block ice Maker plant Details:

1.Parameters of Snowell Block Ice Machine available from 5T to 20T


Model	Capacity	Refrigerant	TOTAL power	Dimension
--	Ton/hrs	--	kW	Part name	(L*W*H)mm
ZB5T	5	R22/R404A	21.14	Complete unit	1400*1000*1250
ZB10T	10	R22/R404A	40.69	Refrigeration Unit	1800*1000*1450
				Evaporator (Brine tank)	4800*1000*2250
ZB15T	15	R22/R404A	60.60	Refrigeration Unit	2000*1200*1600
				Evaporator (Brine tank)	4800*1000*2250
ZB20T	20	R22/R404A	88.50	Refrigeration Unit	2400*1600*1800
				Evaporator (Brine tank)	4800*1000*2250


Standard condition: Dry ball temperature is 33 °C and water inlet temperature is 20°C.

The optional ice block weight: 5kg , 10kg, 20kg 25kg, 30kg.50kg.100kg

2.Component  Details of Flake Ice Machine
Famous international brand name
Compressor:Bitzer/Copeland/Bock
Italy  solenoid valve and  phase sequence protector
Expansion valve: Denmark Danfoss high/low  pressure controller


Product Description

1). Special design for the Africa, Middle East and Oceania market, perform well in the hot place;

2). Adopt stainless steel SUS304 for the salt water tank and ice moulds, which is  anti -corrosion and anti-rust ,guaranteeing a longer life span.

3). Reasonable and separate design for the structure, save space, easy to install;

4). All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;
5) Ice block size: 5kg/piece, 10kg/piece; 15kg/piece; 20kg/piece; 25kg/piece

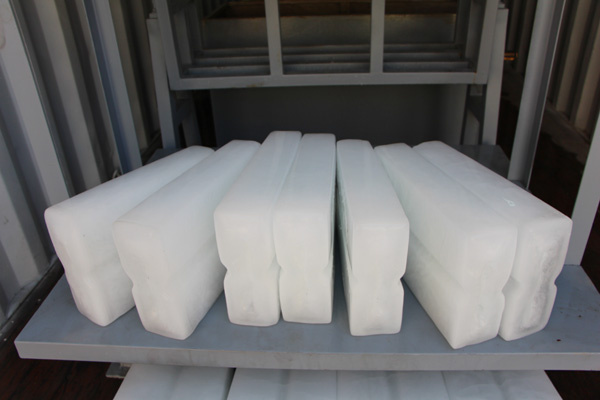

10kg ice block


B-5T Block Ice maker Machine Specification:
NO.	Block ice specification	Ice can (PCS)	Making-icetime (H)	Qty/24h (PCS)	Weight (Kg/PC)
1	L200mm*W100mm*H600mm	126	6	504	10
ZB-5T Block Ice Machine Operation Condition:
1,Max ambient temp.			+400C
2. Related humidity			85%
3. Water temp.			160C
4. Supply power			380V~420V/3Phase/50Hz
5. Refrigerant			R404A
6.Compressor			BOCK  compressor
7. Cooled mode			Water cooled

After-sales Service for the ice block making plant:

1. Two years warranty

2. Offer Spare parts free of charge within the warranty period.

3. Technical Documents

When beyond the warranty, Snowell will supply the parts and service only for factory price.


Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Ice Making Machine,Tube Ice Making Machine,Block Ice Making Machine. The manufacturing is totally different. So the time and affort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity

   2). Different Ice Daily Capacity: we have 1T,2T,5T,10T,20T,25T,30T,40T,50T ice making machines. For small capacity ice making plant(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).


Q2.: What is the payment terms and trder terms?

A2: Normally, we accept T/T,  30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen


Q3: Do I need to install the ice machine by myself?

For small ice plant, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine making plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.

Q4: For Water Cooled and Air cooled Machine, Which one is better?

A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
