| Prod Model: |
FIP-100WH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Certification: |
ISO |
| Condition: |
New |
| Ice Shape: |
Plate Type Ice |
Product Description
Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.
Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetable

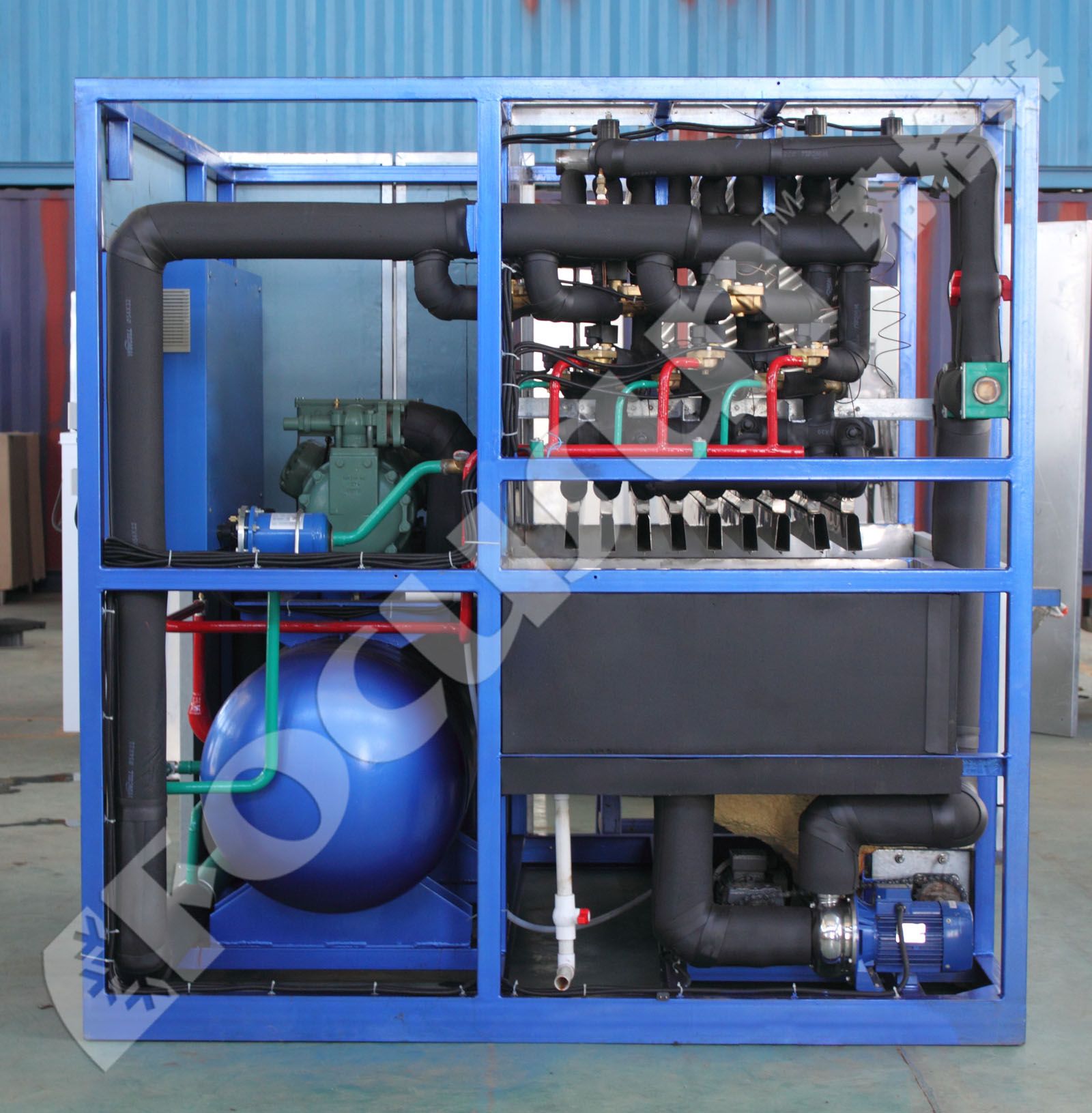

Plate Ice Machine: Cooling mode: Water cooling
Focusun Plate Ice Machine is produced by being passed through a crusher and contains all necessary equipments in a turnkey package. It's easy to handle and appropriate for a variety of industrial applications.
Features of Plate Ice Machine:
1. The amount of ice producing differs with water temperature and varieties in the capacity of the compressor unit.
2. The standard power supply is 3-phase 200/220V, and 3-phase 50 or 60Hz, 380V, or 0440V may also be selected.
3. Plate ice makers are designed to operate solely with fresh water. Ice production may not be possible at sale concentrations in excess of 100ppm.
4. Plate ice makers are all designed for indoor installation. Contact us for information on models designed for outdoor installation.
5. The evaporator is the direct expansion type. The standard evaporation temperature for R-22 is set at-15 degrees.
6. Ammonia (NH3) may be selected as the refrigerant if required. Please contact us for specification of this refrigerant!
Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 10000 |
| Cooling way |
| Water cooling |
| Temperature | Ambient temperature | celsius | 35 |
| Waterinlet temperature | celsius | 20 |
| Operating power | Cooling water pump | Kw | 1.1 |
| Warm water pump | Kw | 0.75 |
| Ice cutter | Kw | 1.1 |
| Cooling tower fan | Kw | 1.1 |
| Cooling water pump | Kw | 2.2 |
| Total running power | Kw | 39.07 |
| Installment power | Kw | 48 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 71 |
| Operating power | Kw | 32.82 |
| Compressor COP/EER | Kw/kw | 2.16 |
| Horse power | Hp | 25×2sets |
| Type of compressor |
| Semi-hermetic screw |
| Dimension | Size of machine unit | (L×W×H)(mm) | 1600×1200×1800 |
| Number of evaporator |
| 1PC |
| Size of evaporator | (L×W×H)(mm) | 2200×1700×2200 |
| Size of ice outlet | (L×W)(mm) | 1500×300 |
| Size of cooling tower | (O.D.×H)(mm) | 2000×2410 |
| Size of water feeding pipe of cooling tower |
| 3/4" |
| Size of cooling water pipes |
| 2-1/2" |
| Size of water feeding pipe |
| 3/4" |
| Operating weight | Unit | Kg | 1150 |
| Evaporator | Kg | 1460 |
| Cooling tower | Kg | 670 |
| Water supply pressure requirement | Bar | 1 |
