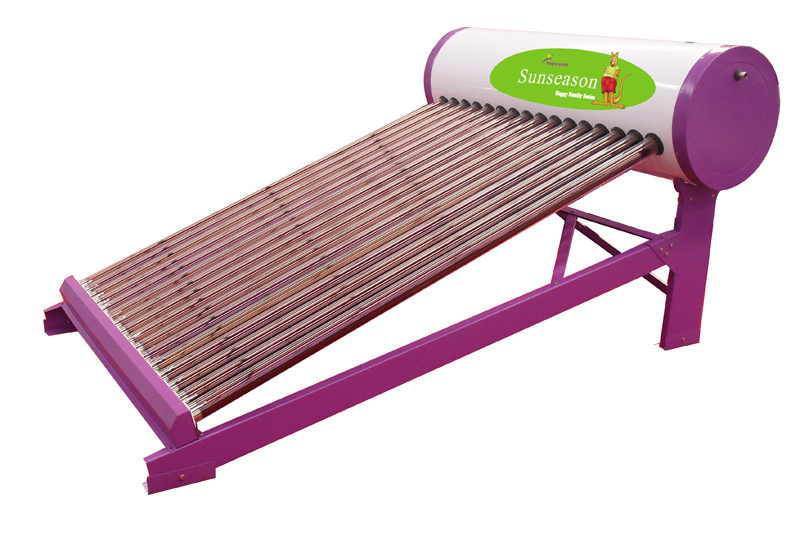

Passive Non-Pressure Solar Water Heaters

Passive Non-Pressure Solar Water Heaters
Price: US $ 90-280/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: YJ-DP150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Collector Components: Glass Vacuum Tube
Pressure: Unpressurized
Structure: Compact Type
Interior Material: Stainless Steel
Certification: CCC

Product Description

1. Specification of non-pressure solar water heaters:
Vacuum tube:
1. 1.6mm thickness borosilicate glass 3.3
2. AL-N-AL or Cu-AL-SS coating
3. Tube pressure: 5× 10-3PA; Absorptance≥ 0.91
Water Tank:
1. Inner tank: 0.4mm thickness SS304 stainless steel
2. Outer tank: 0.4mm thickness SS304 stainless steel or color steel
3. Absorbing layer: High-pressure polyurethane foam with 50mm thickness
4. Foaming density: 35g/cm3; Closed-cell foam rate: 95%
5. Capacity: 100L-360L
Bracket:
1. Galvanized steel or aluminum alloy with 1.5mm thickness;
2. Angle of stand: 18° , 20° , 38° , 45°

2. Working principle:
There is water in the vacuum tubes and free to flow into tanks. When the water in the tubes is heated by the sun's rays firstly, this makes water in the tubes lighter. Therefore, the cold water in the tank move downwards and hotter water move upside into the top of the tank. It is an open circuit since the air vent and the overflow pipe is open to the air.

3. Applications and features:

1. Solar water heater use the free energy-sunshine to supply hot water, it could help us to save money.
2. The heat preservation of water storage tank is 72 hours, so if there is no sunshine, it also could supply hot water.
3. Non-pressure solar water heaters are widely used in family supplying hot water: Washing machine, kitchen, shower and so on.
4. Also, the non-pressure solar water heaters could be used for all kinds of projects, such as, community projects, school projects, hotels, factories.
 Model  quantity of tubes diameter of tank(inner tank/outertank)  capacity
 YJ-15DP1.5-H47  15 pcs  345/445mm  100L
 YJ-15DP1.8-H58  15 pcs  365/465mm  150L
 YJ-20DP1.8-H58  20 pcs  365/465mm  200L
 YJ-24DP1.8-H58  24 pcs  365/465mm  240L
 YJ-30DP1.8-H58  30 pcs  365/465mm  300L
 YJ-36DP1.8-H58   36 pcs  365/465mm  360L

Established in 2002, Shandong Sunseason New Energy Co., Ltd. is one of the earliest and biggest manufacturers in producing solar water heaters and other photovoltaic products. We are one of National High Technology and New Technology enterprises and one of the first AAA credible enterprises in solar industry.
Our 200, 000 square meters, ISO 9001: 2008-certified factory can produce up to 610, 000 units annually. Thirty-five QC officers with an average of five years' experience help ensure our high standards of quality. Our products have been approved by Solar Keymark, ISO9001, ISO14001, CCC, and CE.
We always put much emphasis on innovations and protections of intellectual property. We have different series of solar water heaters to satisfy various needs of customers. Take integrated non-pressure series, pressurized series and split series as samples, they are suitable for different areas and constructions. Furthermore, we make large solar water heating systems, the capacity can be from 1 Ton to 1000 Tons.
With the gradual exhaustion of non-renewable energy resources and increasing pressure of environmental contamination, the advantages of solar energy become more and more prominent. In order to create a harmonious, environment-friendly and energy-saving earth for our later generations, we will do our utmost to develop more solar products with high quality and efficiency.
Our company has networks throughout whole world, including European, South American, Africa and Asia. We accept OEM orders. Welcome both domestic and overseas clients to visit our factory and do business with us.
