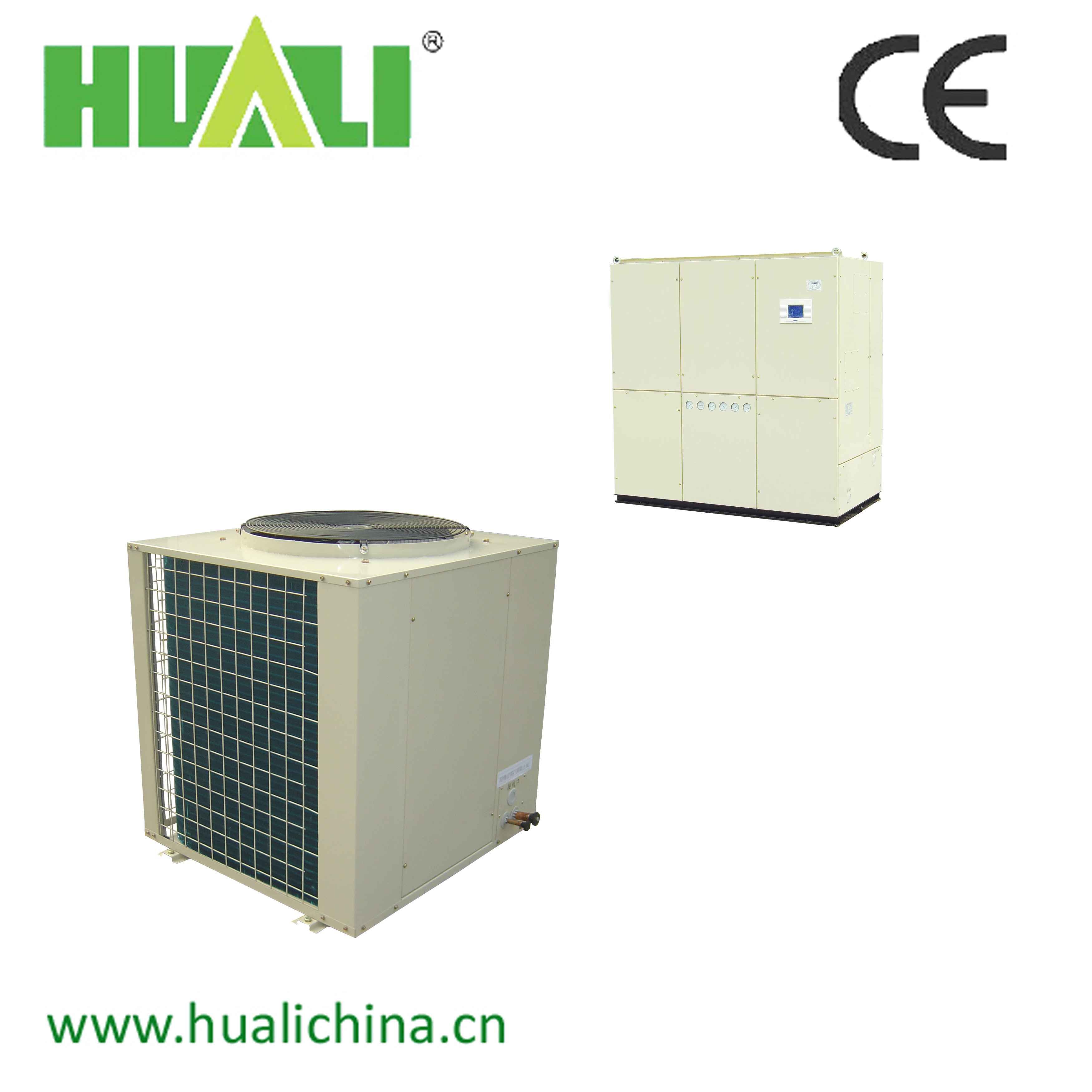

Air Cooled Thermostatic and Humidistatic Control Unit
Detailed Product Description
Huali Air Conditioner is one of the leading manufacturers in China for HVAC & R equipment. We professionally design and make miscellaneous commercial and industrial central air conditioning units, water cooled chiller and heat pump, air cooled chiller and heat pump, water to water heat pump, water / air source heat pump, low temperature water chiller, packaged air conditioners, thermostatic and humidistat air conditioners, and ancillary equipments like air handling units, fan coil units, cooling tower, compatible parts like shell and tube heat exchangers (nickel-copper tube), electrical heating equipment, screw air compressor, etc.
| Model HLLA~ | 18F | 21F | 26F | 35F | 50F | 70F |
| Cooling capacity | KW | 17.5 | 21 | 26 | 35 | 52.5 | 70 |
| Cooling power | KW | 6.4 | 7.8 | 9.6 | 12.9 | 16.7 | 20.4 |
| Heating capacity | KW | 19.3 | 23.0 | 28.5 | 38.5 | 57.8 | 77.0 |
| Heating power | KW | 6.3 | 7.4 | 9.5 | 12.4 | 16.2 | 19.6 |
| Air flow | m3/h | 3700 | 4200 | 5200 | 6600 | 9200 | 12300 |
| CFM | 2100 | 2470 | 3060 | 3880 | 5410 | 7240 |
Static pressure(Max) | Pa | 80 | 80 | 80 | 300 | 300 | 300 |
Compressor | Type | / | Scroll |
| Quantity | set | 1 | 1 | 2 | 2 | 2 | 2 |
| Power supply | V/PH/HZ | 380V,3PH,50HZ |
| Refrigerant | / | R22 |
Refrigerant charge | KG | 3.8 | 4.2 | 6 | 9.2 | 13.8 | 16.4 |
| Noise | dB(A) | 59 | 61 | 61 | 63 | 65 | 70 |
| Net dimension (mm) | LXWXH | 1240X1000X810 | 1150X1050X1043 | 1310X1050X1193 | 2210X1210X1210 | 2210X1800X1210 | 2148X2140X1123 |
Packing dimension (mm) | LXWXH | 1270X1050X865 | 1250X1150X1143 | 1410X1150X1293 | 2310X1310X1310 | 2310X1900X1310 | 2248X2240X1223 |
| Net weight | KG | 205 | 280 | 340 | 520 | 800 | 950 |
| Gross weight | KG | 225 | 320 | 380 | 550 | 845 | 1030 |
| Loading Qty 20"/40"/40HQ | Unit | 16/36/54 | 16/36/36 | 6/14/28 | 4/9/18 | 2/6/12 | 2/5/10 |
| Model HLLA~ | 90F | 110F | 125F | 150F | 170F | 190F |
| Cooling capacity | KW | 87.5 | 105 | 122.5 | 150 | 170 | 190 |
| Cooling power | KW | 31.5 | 38.5 | 43.8 | 56.5 | 65.5 | 74.8 |
| Heating capacity | KW | 96.3 | 115.5 | 134.8 | 156 | 177 | 195 |
| Heating power | KW | 31.1 | 37.2 | 43.4 | 52 | 70 | 90 |
| Air flow | m3/h | 15200 | 18300 | 21600 | 26400 | 28700 | 32400 |
| CFM | 8950 | 10770 | 12700 | 15529 | 16882 | 19059 |
Static pressure(Max) | Pa | 300 | 300 | 300 | 700 | 700 | 700 |
Compressor | Type | / | Scroll compressor |
| Quantity | set | 2 | 4 | 4 | 4 | 4 | 4 |
| Power supply | V/PH/HZ | 380V,3PH,50HZ |
| Refrigerant | / | R22 |
Refrigerant charge | KG | 16 | 26 | 30 | 36.5 | 41 | 47.5 |
| Noise | dB(A) | 72 | 75 | 78 | 82 | 82 | 82 |
| Net dimension (mm) | LXWXH | 2803X2195X1123 | 3385X2193X1127 | 3800X2193X1127 | 3850×2200×2200 | 4000×2200×2200 |
Packing dimension (mm) | LXWXH | 2903X2300X1223 | 3485X2300X1227 | 3900X2300X1227 | 3950×2300×2350 | 4100×2300×2350 |
| Net weight | KG | 1240 | 1420 | 1610 | 1850 | 2100 | 2250 |
| Gross weight | KG | 1330 | 1520 | 1720 | 1960 | 2250 | 2400 |
| Loading Qty 20"/40"/40HQ | Unit | 2/4/8 | 1/3/6 | 1/3/6 | 1/2/3 | 1/2/3 | 1/2/3 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
