Air conditioner

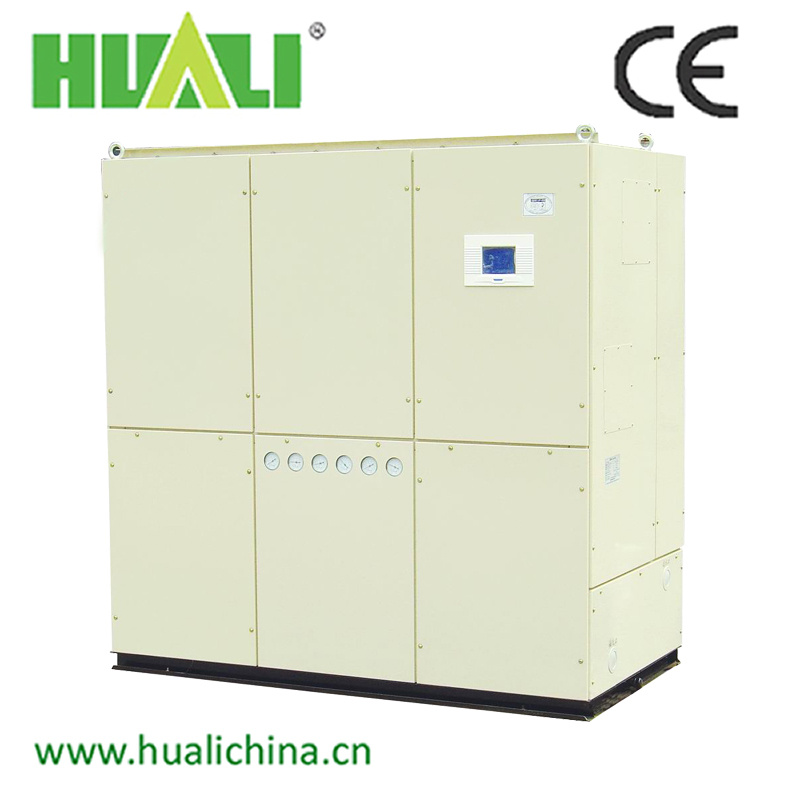

Water Cooling (Heating)Packaged Unit
Feature:
1. The chiller adopt high-quality compressor and Italy pump, so it is very safe and noiseless, economical in power and durable
2. The chiller is deployed with Italy temperature controller, it can control the temperature between -35~+35 degree exactly
3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high
4. The chiller is designed to be with current off-load protector, high voltage and low voltage construction and electric time-delay safeguard, when malfunction happened, it can alarm and show the cause of the problem in time
5. It is designed to be with anti-phase & lack-phase protector and anti-icy protector
6. The temperature of ultra cod chiller can be below -15 degree
|
Water Cooling (Heating)Packaged Unit |
|
|
HLW/HR- |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
|
Cooling capacity |
KW |
26 |
32.5 |
52.3 |
65.9 |
77.8 |
97.2 |
125.3 |
154.5 |
171.8 |
|
kcal/h |
22360 |
27945 |
44970 |
56670 |
66900 |
83630 |
107750 |
132850 |
147720 |
|
Heating capacity |
W |
12.9 |
17.2 |
24 |
38 |
42 |
51.5 |
67 |
84 |
108 |
|
Power supply |
3N AC380V 50Hz |
|
Power input |
KW |
6.5 |
8 |
12.5 |
17.5 |
18.5 |
23.5 |
32.5 |
40 |
52 |
|
Rated load amps |
A |
13 |
16 |
25 |
35 |
37 |
47 |
65 |
80 |
106 |
|
Compressor |
Type |
Scroll |
|
Power*quantity |
HP |
4× 2 |
5× 2 |
5× 3 |
10× 2 |
12.5× 2 |
12.5× 2+5 |
12.5× 2+10+5 |
12.5× 4 |
12.5× 5 |
|
Fan |
Type |
Outside rotor air blower |
Belt drive centrifugal |
|
quantity |
1 ,2 |
1 , 2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Power*quantity |
KW |
0.45 , 0.5 |
0.55 , 0.5 |
0.55×2 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
|
Air flow |
CFM |
2350 |
3000 |
4600 |
6250 |
7630 |
9170 |
13000 |
17000 |
20000 |
|
m 3 /h |
4000 |
5100 |
7800 |
10600 |
13000 |
15600 |
22140 |
27700 |
33500 |
|
Ext.static.press |
Pa |
150 |
150 |
200 |
250 |
300 |
300 |
320 |
350 |
450 |
|
Noise level |
dB(A)less than |
62 |
62 |
65 |
68 |
70 |
70 |
75 |
76 |
76 |
|
Condenser |
Type |
Shell-and-tube |
|
condensing water rate |
m 3 /h |
5.2 |
6.9 |
11.0 |
14.5 |
16.5 |
21.5 |
27.5 |
34 |
44 |
|
ID of water in&out pipe |
in. |
1-1/2 |
1-1/2 |
2 |
2 |
2-1/2 |
2-1/2 |
3 |
3 |
3 |
|
condensation water pipe |
in. |
1 |
1 |
1 |
1 |
1 |
1-1/4 |
1-1/4 |
1-1/4 |
1-1/4 |
|
Drain-pipe |
in. |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
|
Dimension |
Width |
mm |
960 |
1200 |
1700 |
1700 |
1700 |
1880 |
2050 |
2450 |
2450 |
|
Depth |
mm |
520 |
600 |
600 |
750 |
750 |
1090 |
1150 |
1300 |
1300 |
|
Height |
mm |
1730 |
1730 |
1780 |
1830 |
1830 |
1910 |
1910 |
1990 |
1990 |
|
Weight |
kg |
300 |
360 |
480 |
660 |
700 |
890 |
1100 |
1560 |
1630 |
|
Feature |
1. The chiller adopt high-quality compressor and Italy pump, so it is very sate and noiseless, economical in power and durable
2. The chiller is deployed with Italy temperature controller, it can control the temperature between -35~+35°C exactly
3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high
4. The chiller is designed to be with current off-load protector, high voltage and low voltage construction and electric time-delay safeguard, when malfunction happened, it can alarm and show the cause of the problem in time
5.It is designed to be with anti-phase & lack-phase protector and anti-icy protector
6.The temperature of ultra cod chiller can be below -15°C |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
