pa subwoofer dual 18inch speaker system
SS2 sub-woofer utilize two brand-special and long stroke woofers, its voice coil and magnetic circuits is double of normal sub-woofers, its 1200W high power of each driver. There is no airflow noise which may occur in ordinary ones when working with ultra-high power.
SS2 is a vented enclosure,this design has excellent enhanced the vented tube's output efficiency,increased the output of LF,and also decreased the non-linear distortion; And it effectively reduces temperature under high power and eases driver's power compression. The unit resonance frequency is low to 26HZ with 30HZ enclosure tuning frequency which makes thick and elastic sound.
Feature:
1200W (AES) LF driver
Thick and elastic hearing
Low frequency low to 28Hz
Mounted wear-resisting Nylon bar
Applications:
Touring performance
Stadium
Theatre
| TECHNICAL SPECIFICATION |
| FREQUENCY RESPONSE: | 28 Hz ~ 180Hz (±3dB ), 23 Hz ~ 250Hz (-10dB ) |
| NOMINAL COVERAGE (-6dB): | Omnidirectional |
| SENSITIVITY(@1w/1m): | 101 dB SPL |
| POWER RATING (AES): | 2400W |
| NOMINAL IMPEDANCE: | 4 Ohm |
| MAXIMUM SPL: | 136 dB (continuous) 142 dB (peak) |
| DRIVERS: | LF 2x18 waterproof paper cone driver |
| |
| PHYSICAL DATA |
| DIMENSIONS(H x W x D): | 575 x 1240 x 680(mm) |
| WEIGHT: | 90 (kg) |
| CONNECTORS: | 2xWP4 connectors |
| SPEAKER CABLES: | 1-2+ |
| MATERIALS: | 24mm,30mm birch plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated cloth |

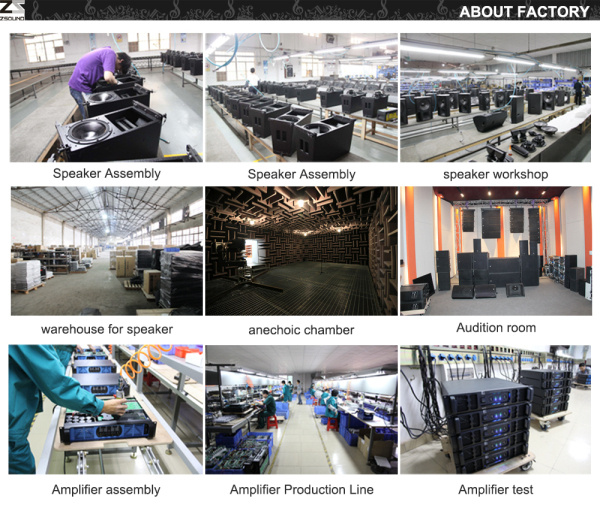

1) Global leading professional Manufacturer of professional speaker and amplifier.2) Product quality: Superior speaker and amplifier, top technology and quality.3) Certificate: CE,RoHS,GS,SGS,ISO90014) Monthly Production Capacity: 2000pcs5) Fast delivery: Get your order when you need it.6) 4000 square meters workshop, with about 200 workers and 20 professional engineers7) Convenient Transportation: 1 hour to Baiyun Airport8) 24 hours on line service.
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
