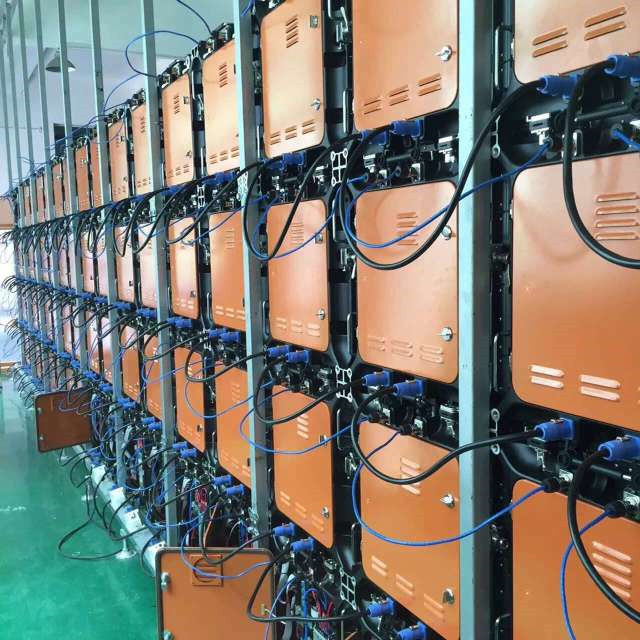

P8mm LED Outdoor Billboard Screen Display

P8 Outdoor SMD LED Display Module with Cree Chip  (Free Sample)

1) Relatively low cost (factory)
2) Stable capability
3) High brightness, high definition of displaying image.
4) Easy installment and low maintenance cost
5) Good heat emission capability
6. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping.

Contact Us Now to know more: mobile: +86 13538127671


PH8 Outdoor LED Module Datasheet
No.	Item	Specification
1	Pixel Pitch	8 mm
2	Chip of LED	Cree
3	LED per pixel	SMD
4	Resolution	15625 pixel/sqm (uniformly spread over the surface, to ensure homogeneity)
5	LED Number per/m²	15625
6	Single Module Dimension/Pixel(W x H)	256mm x 128mm / (32dots * 16dots)
7	Driver IC	MBI5124
8	Optimal View Distancing	8m
9	Vertical Viewing Angle	140° (Standard LEDs Viewing Angle)
10	Horizontal Viewing Angle	140° (Standard LEDs Viewing Angle)
11	Brightness	7500cd/m² - 8000cd/m² to Ensure brilliant images
12	Grey Scale	14 bits
13	Contrast	2000
14	Operating Temperature	-30ºC~+60ºC , 20%~60%RH
15	Temperature Checkup	When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection
16	LEDs Lifetime	>1,000,000 Hours
17	Warranty	2 years
18	Input Voltage	AC220V±15%
19	Input Power Frequency	50/60Hz
20	Screen Power Consumption	Max:≤700W/sqm  ;  Average:250w/sqm
21	Refresh Rate	1000Hz
22	Frame Rate	> 60 frames/sec
23	Defect Rate	≤0.0002
24	Water proof	IP65
25	Control Method	Synchronized with computer monitor
26	Way of Drive	1/4 constant driving
27	MTBF	> 100,000 hours
28	Color Temperature	6500K±500
29	Signal Interface	DVI
30	Source Compatibility	YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI
31	Control Distance	120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km
32	Systems Operating Platform	WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development.

LED Display /LED Screen/LED board/ LED display screen/LED sign/LED video wall
1. Model No.: P1.9, P2.5, P3, P4, P5, P6, P7.62, P8, P10, P12, P12.5, P13.33, P16, P20, P25 etc
2. Display Color: 256*256*256
3. LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4. Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5. Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, special cabinet with Southco Lock, for hung and rental and etc.
6. OEM&ODM: design and produce your customized requirements.
7. Package: Flight case, wooden box package & carton box and etc.
8. Guarantee: 2 year

Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

Trade Terms:
1. Package: anti-shaking wooden package, air flight case or carton package.
2. Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery.
3. Free to support and train your operator.
4. Shipping port: Shenzhen, Mainland China.
5. Warranty time: 2 year
6. Delivery time: 10 working days.

Our Service
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.

3. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other experts' suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.

4. Additional service
(1) We provide you the some other information such as flight box, structure information for your reference for free.

Why Chengxinguang(CXG) LED Display

1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.

2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.

3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
