| Prod Model: |
SMD p8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Physical Pixel Pitch: |
8mm |
| Brightness: |
≥ 3000 CD/M 2 |
| Control System: |
Linsn/Xixun/Colorlight/Nova/Listen |
| Module Size: |
256*128mm |
| Operating Temperature: |
-20°c~50°c |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
RoHS |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots/Sqm |
Product Description

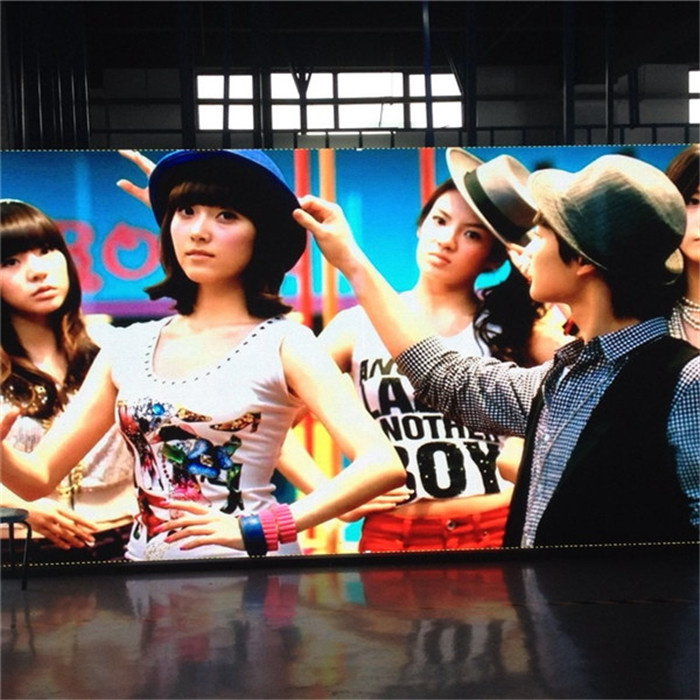

High resolution indoor full color SMD P8 LED display
1. Long lifespan
2. Large view angle
3. Hi-brightness
4. Good after-sales
Application: Entertainment center, stage background,
Rain station, exitbition, shopping center, stadium etc.
Application and Market
1) Widely application field and short ROI time. Commercial advertising Led display screen, Stadium perimeter Led display screen, mobile trailer led display, led screen for mobile media, shopping mall led display, screen for logo showing, led display for bank or stock exchange rate showing, led moving sign for train and bus station, Led display screen for air port, telecommunication led display screen for information showing and instruction and etc.
2) High contrast ratio: 4000: 1. Which is a pretty high level to ensure vivid image of Led display screen system.
3) First-level Led chip. Supplied by Nicha of Japan, CREE of USA, and other high strictly selected Led chip to ensure long lifespan and high brightness of Led display screen system.
4) Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more audience to get short ROI of your Led display screen's investment.
5) Long term brightness. 7500 nits brightness for outdoor full color led display, 2000 nits brightness for indoor full color led display capacity throught products lifetime of Led display screen.
6) Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the Led display screen system.
7) Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
8) Available models. PH10mm, PH12mm, PH12.5mm, PH14mm, PH16mm, PH20mm, PH25mm, PH31.25mm, PH37.5mm, PH40mm, PH100mm, PH125mm and etc.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days
Item |
Parameter |
|
Pixel |
Physical pixel pitch: 8 mm |
Pixel configuration: 1R1G1B |
|
Chip |
Wave |
Brightness |
Packing |
R |
Opto |
620-625nm |
250-350mcd |
SMD3528 |
G |
Silan |
525-530nm |
600-700mcd |
SMD3528 |
B |
Silan |
465-470nm |
100-150mcd |
SMD3528 |
Module |
Module resolution: 32*16 pixels |
|
| Module size: 256*128 mm |
Cabinet |
Physical resolution: 128*98 pixels |
Cabinet size: 1024*768*(100-120) mm |
Physical density: 12288 pixels/cabinet |
Module quantity: pcs = 4 (w) x 6 (h) |
Material: Steel |
Weight: 32 Kg |
Electricity parameter |
Brightness: ≥ 3000 cd/m 2 |
Brightness adjusted: 100 grade by software, or by Auto-optic induced |
Color processing: 16bit |
Display color: 280 trillion |
Color temperature(k): 5000_ 9500 (choice by user) |
Physical density: 15625 pixels/m 2 |
Whole display flatness: ≤ 1mm juncture |
Best view distance: ≥ 13m |
Best view angle: Horizontal ± 140° , Vertical ± 140° |
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C |
Driving method: Constant driving current Scan: 1/8 |
Refresh frequency: ≥ 2000Hz |
Frame rate: ≥ 60Hz |
Humidity(RH): ≤ 90~95% |
Protection grades : IP65 |
Working Voltage: DC 5V |
Power supply: AC 110 / 220V, 50/60Hz |
Average power consumption: 400 w/m 2 |
Max power consumption: 800 w/m 2 |
MTBF: 10, 000 hours |
Screen lifetime: 100, 000 hours |
Control system |
Control system: Linsn |
Signal interface: DVI |
Communication distance: Internet cable: ≤ 100m Fiber cable: 1000m |
Signal transfer mode: Pixels to pixels display synchronized |
