P8 Outdoor Front Access Full Color LED Display

P8 Outdoor Front Access Full Color LED Display
Price: US $ 820-860/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: P8 outdoor
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: P8 Outdoor Front Access Full Color LED Display
Maintenance Way: Front
Cabinet Size(W*H*D): 1024W(mm)*1024 H(mm)
Cabinet Weight: 55kg/Sqm
Brightness (White Balance): 5000CD/Sqm
Refresh Rate: 2000Hz /S
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Pixel Pitch: 8mm

Product Description

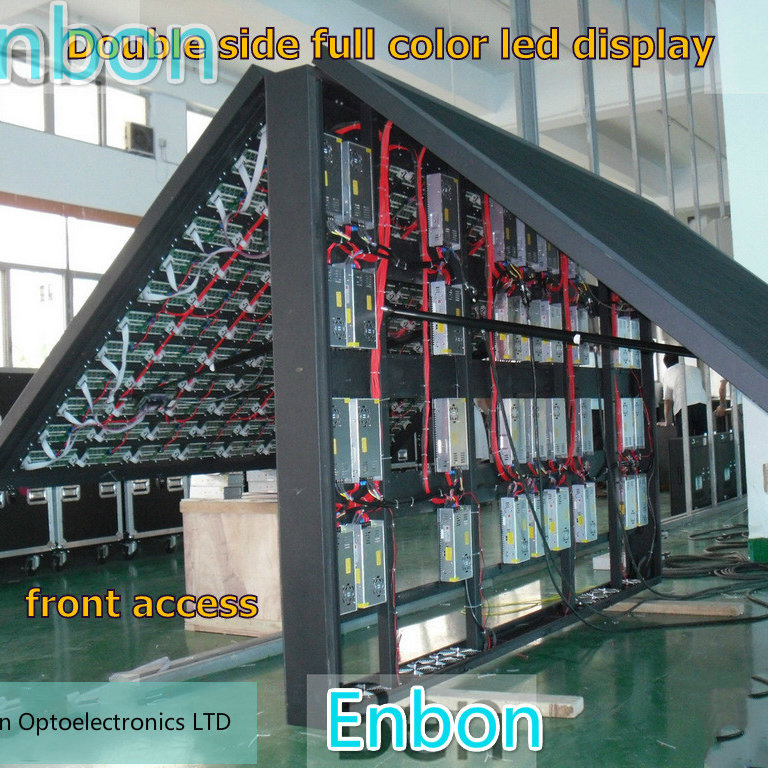

Front Access full color led display


Description:

For some LED billboard installation , there is no room for maintenance from the rear side . In this case , The LED screen should be front access .Enbon is very professional in this . Welcome to get back for more details .

The features are as below:

1. Front access wtih special cabinet design . The cabinet can be open very easily
2. SMD3535 led encapsulation confirm wide view angle and high brightness,
anti-corrosion,antifogging
3. High pixel density, High definition, Good uniformity
4. Good waterproof IP65,suit to any weather(rain,sunny,daytime, night)
5. Can be fixed on the wall, on the street, or  for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want
6. Widely used for commercial advertising. It's new trend and soon it may take the place of DIP LED billboard

Specifications:


Model
P8 outdoor front access full color led display
Pixel pitch8mm
Pixel density15625 dots /sqm
Module size(W*H)256 mm(width)*128 mm(height)
Module pixels(W*H)32 dots *16 dots
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving 1/4 scan
LED lamp typeWater-proof SMD3535
Cabinet size(W*H*D)1024mm*1024mm,  it can be customized
Color scale65,536 degree
View angle(H/V)140/120 degree
Brightness (White balance)about 5500cd/sqm.
Power consumption(one cabinet)Max:1000W/sqm.     Average:300W/sqm.
Operating VoltageAC100V±10% or 220V ±10%;   50---60HZ
Net weight55Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet)
Operating temperature-30°C----+60°C
Operating humidity10%-95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.5mm Juncture
Frame frequency25-60 Hz/s
Refresh rate≥2000Hz /s
Control distance
100m (without repeater), single mode fiber:20km,
multi mode fiber: 500m

Power
110V/220V±15%  47--63Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protection gradeIP65
Maintenance wayRear  Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI


ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
