P8 DIP Newest Outdoor LED Display for Advertising
| Price: |
US $ 615-640/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
P8/DIP 3 in 1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
P8 Outdoor LED Video Panel |
| Module Size: |
256mm*128mm |
| Brightness: |
7500CD/M2 |
| Optimal Viewing Distance: |
10m~50m |
| Optimal Viewing Angle: |
160°(W) /120°(H) |
| Maximum Power Consumption: |
700W/M2 |
| Refresh: |
2200Hz |
| Display Mode: |
800*600/1024*768/1280*900 |
| Grey Scale: |
RGB Each 256 Grade, Can Display 16.7m Colors) |
| Module Weight: |
0.55kg |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,EMC,Ios9001 |
| Pixel Pitch: |
8mm |
| Pixel Configuration: |
DIP 3in1 |
| Pixel Density: |
15625dots/M2 |
Product Description
Main Features:User can arrange any display modes at will, like display text, graphics,images,animations, video information, with unlimited display amount
· With super-high brightness LED, high contrast
· High frame frequency, wider view angel
· With module development and distributed scan
· technology, high reliability
· Universal AC input / full range
· exhibition modular design makes installation and maintenance more easier
· PC synchronous or asynchronous control(optional)
· Use common video play software, easy to use
· 2 years warranty
Parameter
The specifications of modules |
|
| Items | Parameter |
| Product Model | P8 Outdoor Full Color LED Module |
| Module size | 256mm*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 25W |
| Module Thickness | 2.8CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4scan |
| Interface | HUB75 |
| Brightness | ≥7500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 768mm*768mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 8M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 330W/H |
| Maximum power consumption | ≤600W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900
|
Advantage:1. High brightness and be adjustable. Built-in functional card support brightness automatically adjustment.
2. A turn-key solution including professional sports software and hardware.
3. Rich advertising LED display screen engineering experience both in domestic and oversea market.
4. Elnor product stability through strict quality control system.
5. Price Advantage: Best competitive price for Elnor p8 led display outdoor.
6. Performance Advantage: Best equality, high consistency, High refresh rate, high consistency, Best brightness, big viewing angle...7. Quality advantage: From material to finished product, from design to produce, we control all steps, include the guarantee of the quality and reliability.
8. Service advantage: with professional service team for 24 hours service, Better service at same situation, better cooperation at same service.
Service:1. Your inquiry related to our products or price will be replied in 24hrs as soon as possible.
2. Protection of your sales information,ideas of design and all your private information
3. Top quality+ reliable price+responsible after service=successful Technology Training:1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing:1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
We are looking for distributor, please join us!
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

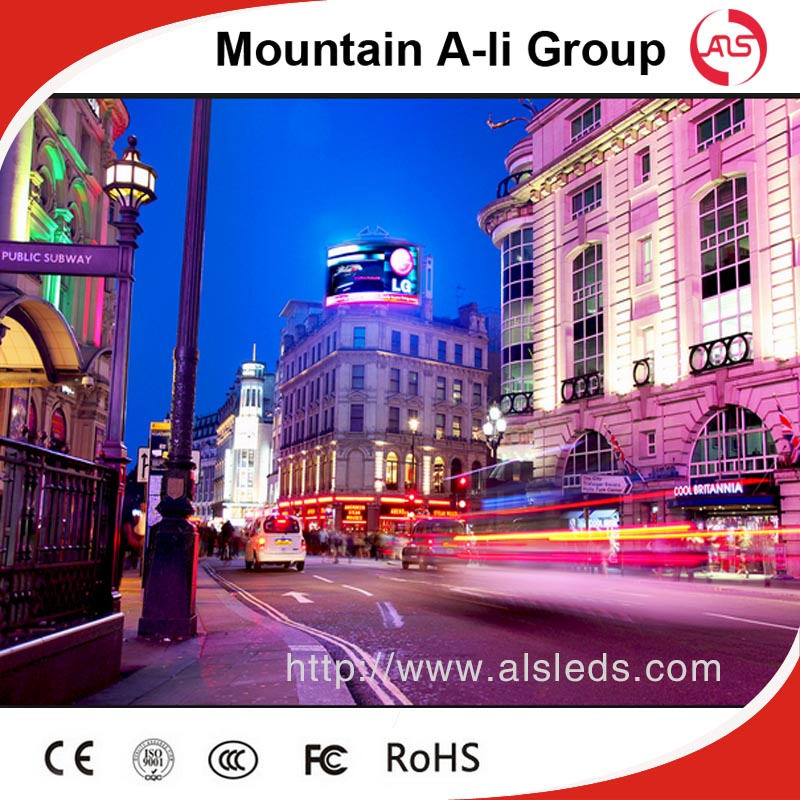

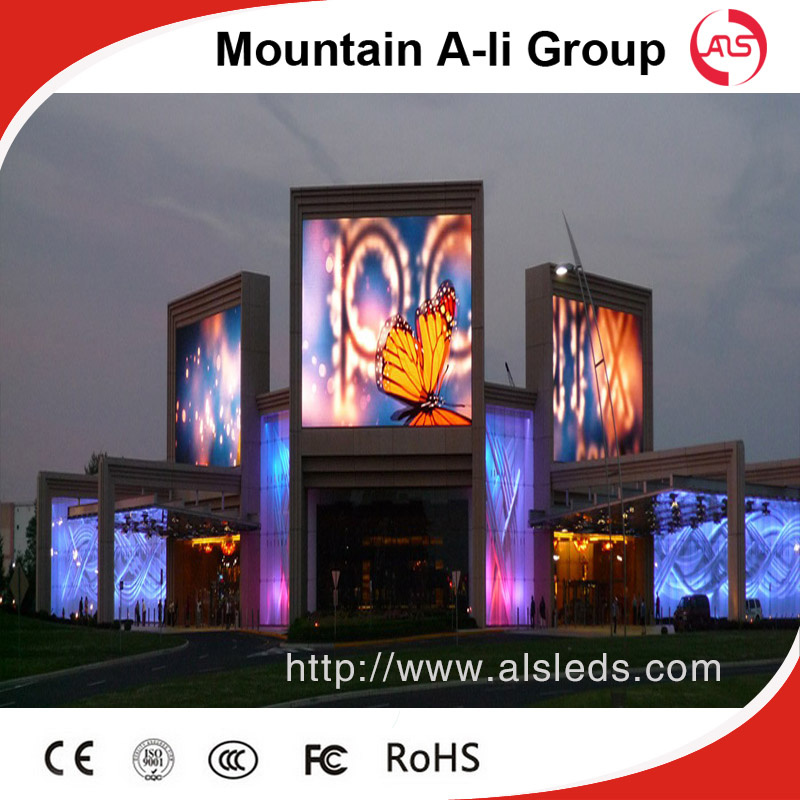

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
