Hongkong Mountain A-Li Electronics Group Co., Limited >> P5 Outdoor Full Color SMD 160mm*160mm LED Video Display

P5 Outdoor Full Color SMD 160mm*160mm LED Video Display

P5 Outdoor Full Color SMD 160mm*160mm LED Video Display
Price: US $ 1270-1300/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
Prod Model: P5 Outdoor Full Color LED Video Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 160mm*160mm
Driving Method: Constant Current Driving
Interface Way: Hub75b
Optimal Viewing Distance: 5m-30m
Cabinet Size: 640mm*640mm
Control Mode: Synchronization with PC
Module Resolution: 32dots*32dots
Delivery Time: 10-15 Working Days
Warranty: 2 Years
Max Power Consumption: 25W /30W
Tube Chip Color: Full Color
IP Rating: IP67
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: 1/8 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC
Pixel Pitch: 5mm
Average Power Consumption: ≤1180 ≤300
Pixel Density: 40000

Product Description



                          P5 Outdoor Full Color SMD 160mm*160mm LED Video Display

Product Features :


   1.Light,color can be custeomaized.

   2.No color difference , concentrating well, good veiwing angle .

   3.Better waterproof , better radiation ,better dust proof  ,good quality modules ,under the same

      conditions ,using two more years than SMD .

   4.High brightness , high refresh  ,the biggest advantage of a comprehensive reflection of outdoor HD          LED display .

   5.Simply installation , easy to maintain  ,easy to use .


 Using Range:

   Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government

agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,

eletric power, galleries and other publicity, advertising, information diseemination, the guide places.


Specifications:

Unit ModuleItem parameter
Model ALS - P5 - 8S
Module size 160mm*160mm
Pixel Pitch5mm
Pixel Density40000dots/m2
Pixel Configuration 1R1G1B
Package modeSMD2828
Module Resolution 32dots(W)*32dots(H)
Max power consumption 25W
Module Thickness14.27mm(without magnet)  26.6mm (with magnet )
Module Weight 0.21kg
Driving MethodConstant Current Driving
Scan Method  1/8scan
Interface WayHUB75-B
Brightness≥1600cd/m2
Unit Moduledimension 640mmx640mm
Quantity of Module16
Thermal dischargefan 2pcs
Power supply Mode 5V/40A* 2pcs
Pixel per cabinet 128mm*128mm
Thickness 85mm
Optimal Viewing Distance5M-30M
Optimal Viewing angle160°(W)120°(H)
Enviroment TemperatureStorage :-35ºC-+85ºC
work :-20ºC-+50ºC
PowerRelative Humidity10%-95%
Operating Voltage AC220V±10%
Average power consumption ≤1180W/m2         /   ≤300W/m2
Max power Consumption ≤500W/m2           /    ≤500W/m2
Current ≤20mA (Single LED )
Control systemCPUPentium4 or above P4 or above
Operate systemWIN98/2000/NT/XP
Control ModeSynchronization with PC
Main technical parameter Driving DeviceIC Constant current driving
Refresh Rate≥400HZ
Gray/ColorRGB each 256 grade, can display 16.7M clolor
MTBF≥9000hours
Power SwitchAutomatic Switch
Display Mode 800*600/1024*768


Why choosed us:

   1.Price Advantage: No.1 cost effective

   2.Quality advantage: serious QC control system  , best material

   3.Service advantage: after service dept& Tech Dept. Perfect after sales system

   4.ISO9001,CE , CCC,ROHS Certificates


Trade Terms:


   1.Packing: Anti-shaking wooden cabinet /Air flight case/carton

   2.Shipping port: Shenzhen. China

   3.Shipping freights are quoted according to your requests

   4.Delivery time:10-15 working days

   5.2 years warranty ,lifelong maintaining.

 After-sales service:

1. Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top

quality+reasonable price+responsible after service=successful & win .

2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;

After Maintenance period, only charge the material costs fees free of manual work fees.

3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can

response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big

project, such as stadium, exhibitions, squares and so on .


Pre-sales service:

1.Our company can arrange professionals to conduct site installation and debugging in strict accordance with the

requirements of the schemes and the original manual.If there is any special requirement, it is necessary to make

changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence of

completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with

client to find solutions.

2. Our company can train the users based on the manual.The training include system use, system maintenance

and equipment protection


3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.

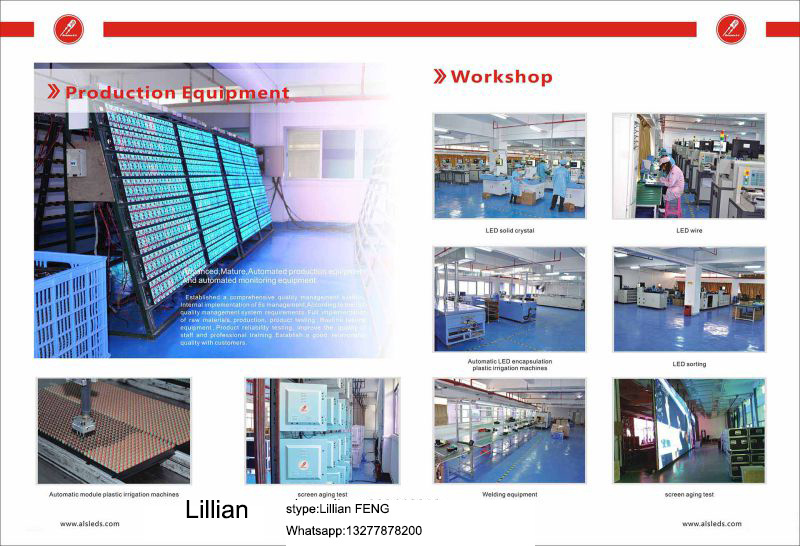

Our company:










Certificates part






HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
