| Prod Model: |
LS80P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Display Type: |
LED Dot Matrix Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Pitch: |
5mm |
Product Description

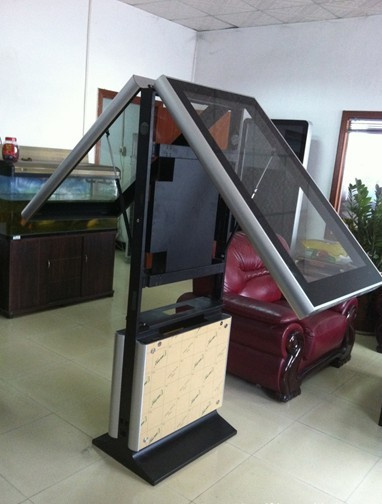

P5 Double Sides Outdoor Full Color Led Display Quick Details
1) Video display for advertisement
2) Live broadcast for news, sport, concert
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
Specifications
Module | Item: | LS80P5 |
Model: | P5mm outdoor Full color led Module |
Pixel Pitch: | 5mm |
Pixel configuration: | 3in1 (1R1PG1B) |
Module Size: | 160mm*160mm | |
Module Resolution: | 32dots(W)*32dots(H) |
Module Thickness: | 15.07 CM |
Module Weight: | 0.6KG /0.3 KG |
Package LED mode: | SMD2727 |
Max Power: | 18W | 12W |
Pixel Density: | 40000 dots / SQM |
Driving Method: | Constant Current Driving |
Scan Method: | 1/8scan | |
Interface Way: | HUB 75 |
Brightness: | ≥7500CD /SQM | |
Cabinet | Cabinet Size: | 640mm * 640mm (Customize) |
Cabinet Composing: | 16pcs |
Power Supply Mode: | 5V/40A or 5V60A |
Cabinet Resolution: | 96dots * 96dots |
Optimal Viewing Distance: | 6-40M (according to the big screen size) |
Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 120 degree |
Environment Temperature: | Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
Relative Humidity: | 10% ~ 95% |
Power | Operating Voltage: | AC:100V~120V AC:220~240V |
Average Power: | 160W/ SQM | |
Max Power Consumption: | ≤ 300W/SQM | |
Current: | ≤ 20mA (single LED) |
Control System | Computer: | Pentium4 or above P4 or above |
Operate System: | Win98/2000/NT/XP |
Control Mode: | Synchronization with PC |
Main Technical Parameter | Driving Device: | IC Constant Current Driving |
Refresh Rate: | ≥ 600Hz |
Gray/Color: | RGB each 256 grade, can display 16.7color |
MTPF: | ≥ 9000hours |
Power Switch: | Automatic Switch |
Display Mode: | 800*600\1024*768\1280*960 |
