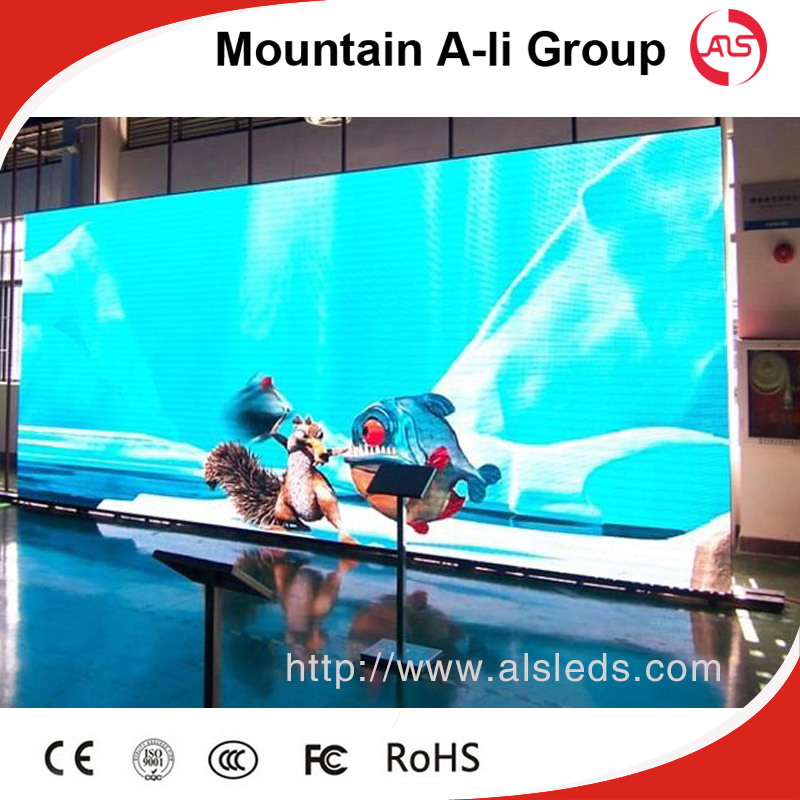

P3 Indoor Full Color LED Display

Prod Model:	P3 Indoor Full Color LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	192mm*96mm
Cabinet Size:	576mm*576mm
Cabinet Resolution:	192*192dots
Brightness Of White Balance:	≥1500CD/M²
Interface Way:	Hub75-a
Drive Method:	Constant Drive
Optimal Viewing Distance:	3m~20m
Optimal Viewing Angel:	160°(W)120°(H)
Grey Scale/Colors:	RGB Each 256 Grade
Display Mode:	Can Display 16.7m Color
Tube Chip Color:	Full Color
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Hall/Advertising/Information Dissemnation
Certification:	FCC, EMC, ISO: 2008
Display Function:	Hall/Advertising/Information Dissemnation
Pixel Pitch:	3
Pixel Configuration:	SMD 3in1
Pixel Density:	111111dots/Msup2
System Operating Platform:	Win98/2000/Nt/XP
IP Rating:	IP31

Product Description

Unit module	Item	Parameter
	Module Number	ALS-P3-16S
	Module size	192mm*96mm
	Pixel pitch	3mm
	Pixel density	111111dots/m²
	Pixel configuration	1R1G1B
	Package mode	SMD 2121
	Pixel resolution	64dots(W)*32dots(H)
	Max power consumption	18W
	Module thickness	14.75mm(without magnet) 26.63mm(with magnet)
	Weight	0.16kg
	Drive type	Constant Drive
	Scan mode	1/16scan
	Interface way	HUB75-A
	Brightness of white balance	>=1500cd/m²
Unit cabinet	Cabinet size	576mm*576mm
	Quantity of Module	8
	Thermal discharge	fan 2pcs
	Power supply mode	5V/40A*3pcs
	Pixel per cabinet	192mm*192mm
	Optimal viewing distance	3M~20M
	Optimal viewing angel	160°(W)120°(H)
	Working Temperature	Storage:-35 ºC ~+85 ºC Work:-10ºC~+50ºC
	Relative humidity	10%-95%
	Thickness	85mm
Power	Operating voltage	AC220V±10%
	Average power consumption	<=180W/ m²
	Max power consumption	≤360W/m²
	Current	≤20Ma(sign LED)
Control system	CPU	Pentium4 or above
	Operation system	WIN98/2000/NT/XP
	Control method	Synchronization with PC
Main technical parameter	Driving device	IC Constant Current Driving
	Refresh frequency	≥400HZ
	Grey scale/colors	RGB each 256 grade, can display 16.7M color
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display mode	800*600/1024*768

Products Features

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc


What can we provide with you ?

   We are Shenzhen Mountain A-Li Group Electronic Technology Co.,LED. We have opened many sub-office in different provinces and cities in China. And we also have already have office in Kazakhstan, Russia, Thailand , Turkey, India, South Africa, Belgium, Singapore, Malaysia, Indonesia, Colombia, Brazil. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.

1. Formal company, 8 years of experience ,courteous service

2.Manufacturers delivery,higher quality at low price than trade company

3.Products can be customized, professional design, your satisfaction is guaranteed

4 Satisfied with the consulting services and after-sales service.

Installation

   We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.

How about your quality warranty?

    It is 2 years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.

Trade Terms

1. Trade terms: EXW, FOB, CIF, etc.

2. Payment terms: 30% deposit, balance before shipping

3. Payment methods: T/T, West Union, MoneyGram,

4. MOQ:1(1 square meter)

5. Delivery:7-15days after deposit.

6. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
