Prod Model: |

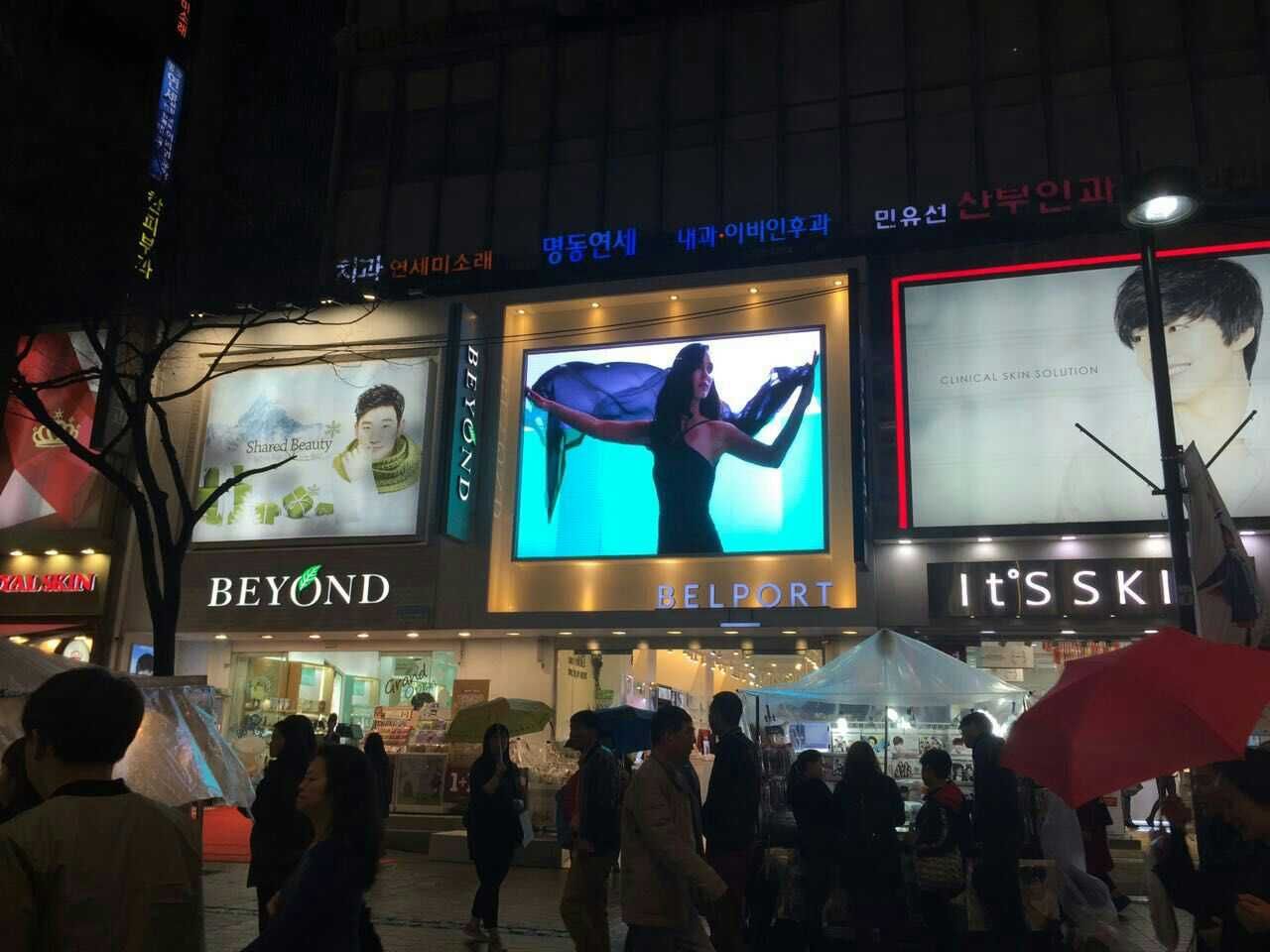

P12Full Color LED Display for Outdoor Installation |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
192*192 |
Cabinet Size: |
960*960 |
Cabinet Material: |
Iron or Aluminum |
Brightness: |
More Than 5000 CD/Sqm |
Best Viewing Distance: |
10-120 M |
Packing Manner: |
Wooden Case/Flight Case |
The Way Of Fix Installation: |
Fix Installation |
Warranty: |
Two Years |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Pitch: |
12mm |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Average Power Consumption: |
180W / m² |
Pixel Density: |
6944 dot / m² |
Scanning Mode: |
1/2 Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
CCC |
Product Description
Full Color Full Color LED Display for Outdoor Fix Installation Series:
Item | Outdoor DIP LED display |
Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
LED Type | DIP346 |
Viewing angle: | H:120°,V:60° |
Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
Drive Method | 1/4 | Static |
Color Depth(nits) | 16384 |
Refresh Rate(Hz) | 2200 | 2800 |
Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
Cabinet Material | Steel |
Cabinet weight(kg) | 50 | 55 | 68 |
Voltage | 110/220V |
Average.power(W / m2) | 250 | 170 | 250 | 220 |
Max.power(W / m2) | 750 | 500 | 750 | 650 |
IP Grade | IP65/IP54 |
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
Lifetime(h) | ≥50000 |
Compliant Standard | CCC,CE,Rosh |
Application:
Fix Installation Outdoor LED Displays are widly used in air port ,wharf,station,culture square,stadium,hotel,traffic,party etc.
Export Markets: South America,North America,Oceania,Western Europe,Mid East,Southeast Asia,Africa,Eastern Asia etc.
Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightning accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
Description:LED Display /led display screen/LED sign/LED video wall
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm (DIP LED)
2). Display Color: 256*256*256
3). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
4). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
5). Package: Flight case, wooden case
6). Guarantee:2 year
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful &win
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
