P10 RGB Outdoor LED SMD Module 2016 1.High quality best price
2.Since 1998
3.OEM
4.professional factoryP10 RGB Outdoor LED SMD Module Parameters| Data Sheet |
| Unit module | PCB | 1 layers |
| Module size | 320mm(W)*160mm(H) |
| Pixel pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| LED specification | SMD3535 |
| Pixel resolution | 32dots(W)*16dots(H) |
| Weight | 0.6kg |
| Optical parameter | Best viewing distance | 10~30m |
| Best viewing angle | 140°(H)/140°(V) |
| Pixel configuration | 1R1G1B |
| Brightness | 6000cd/SQM |
| Brightness Adjustment | Auto 256 level |
| Electrical parameter | Working voltage | 5V |
| Avg Power consumption | 212W/m2 |
| Max Power consumption | 750W/m2 |
| Current | ≤45mA (single LED) |
| Driving device | Constant Current driver |
| Drive type | 1/4 Scanning |
| Refresh frequency | ≥60Hz |
| Control system | Control system | HDplayer |
| Operating system | Windows |
| Control method | Asyn-synchronous control |
| Communication distance | ≤100m(UTP-5 CABLE) |
| Main technical parameter | Operating environment | Outdoor |
| IP Grade | IP65 |
| Storage temperature | -30°C~60°C |
| Working temperature | -20°C~50°C |
| Operation humidity | 10%~90% |
| MTBF | ≥10000 hours |
| Life span | ≥100000 hours |
| Malfunction dot rate | ≤1/10000 |
| Blind Dot Rate | <0.0003 |

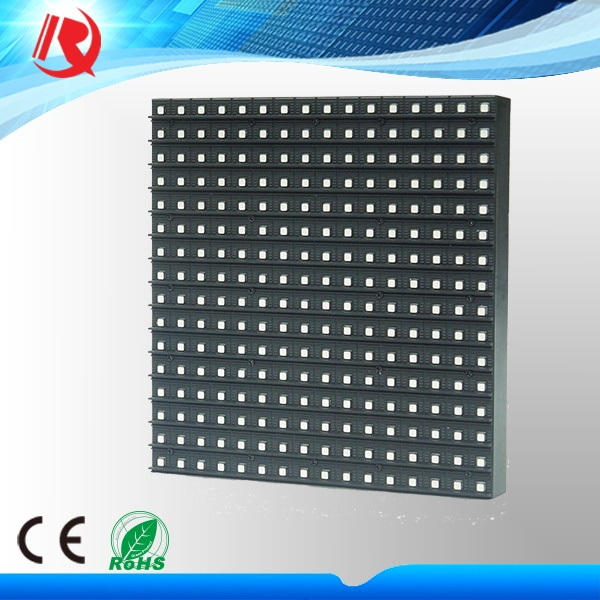

P10 outdoor LED display module for LED sign
P10 RGB Outdoor LED SMD Module Product Features:
Ultrahigh definition display effect, 0.1mm high-precision splice seam
New structure design, meet the Hanging&wall mounted assembly requirements, and meet indoor & outdoor requirements
With ultra high refresh rate, to ensure clear graphics
Fast and convenient assembly and dismount system
P10 RGB Outdoor LED SMD Module Range of Application
Widely used in the large meeting place, stadium, bank, post & telecommunication bureau, governmental organizations, terminal, wharf, station, securities market and other transaction markets, medical system, electrical power
P10 RGB Outdoor LED SMD Module Main advantages
1.Energy Conservation, No need for external force to dissipate heat.
2.High Contrast Ratio, Contrast Ratio is up to 5000:1.
3.High Grey Scale, grey scale is 16bit
4.High Refresh Rate, refresh rate is up to 2880Hz
5.Brightness is adjustable, adjustable range is from 200-1500cd/sqm, to meet different situation.
6. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
7. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
8. Using fishbone bus line greatly reduces the contact problem;
9. IP65 grade for high performance waterproof and dustproof capability;
10. -20°C - 50°C working environment for outdoor display, adapted to the harsh environment.
Product show

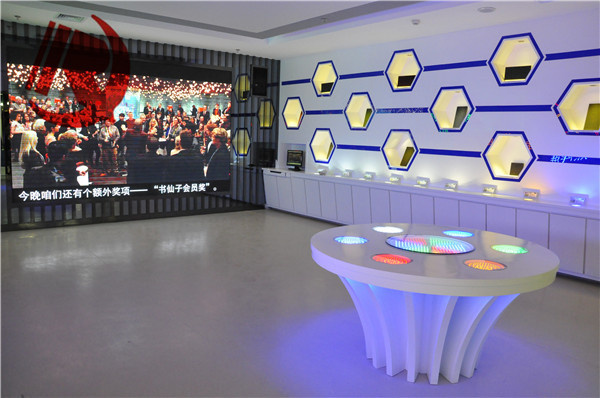

Exhibition Room
Factory Show
Production Line
Packing and shipping
