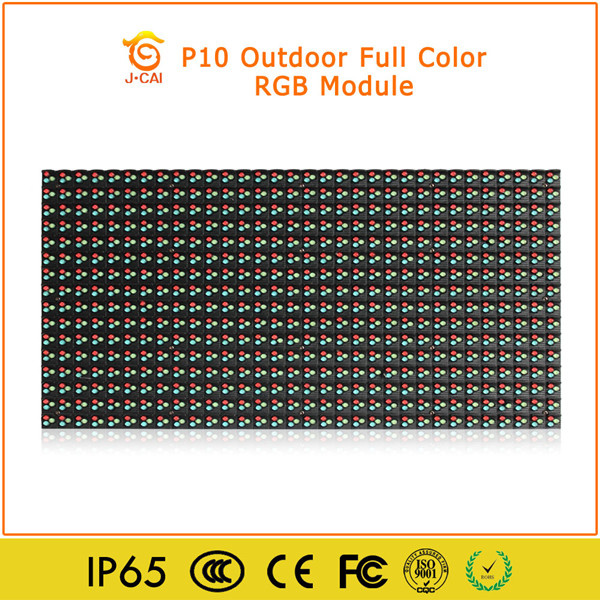

P10 4s DIP RGB LED Display
| Price: |
US $ 14-15piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chip Spec: |
DIP346 |
| Control Mode: |
Synchronous Control |
| Scan Mode: |
1/4 Contant Current |
| Life Span: |
100, 000h |
| LED Chip: |
Epistar |
| Module Size: |
160*160mm |
| Brightness: |
More Than 7000CDS/Sqm |
| View Distance: |
10-150m |
| View Angle: |
V110 Degree, H90 Degree |
| Max. Power Consumption: |
35W |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ISO9001:2008 |
Product Description
Company info
√ Own Factory == √ FOB Competitive Price (customer only need pay for the truck fee, the rest our company share) == √Good news (our company price will be adjusted price in every 1 or 2 months ) == √Quality Control == √Short Delivery Time == √Own Technology Product info1. P3\P4\P5\P6...indoor full color led display; 2. P10/P12/P12.5/P16/P20/P25...outdoor full color led screen; 3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
| No. | Items | Specs |
| 1 | Pixel Pitch | 10.0 mm |
| 2 | Pixel Resolution | 10,000 dots |
| 3 | Pixel Configuration | 1R1G1B |
| 4 | Unit Board Size(W*H*T) | 320*160*26.8mm |
| 5 | Unit Board Resolution | 32*16=512Dots |
| 6 | Input Voltage (CC) | 4.8-8.5V |
| 7 | Brightness | ≥5600cd |
| 8 | Horizontal Viewing Angle | 110±5 degree |
| 9 | Vertical Viewing Angle | 50±5 degree |
| 10 | Application Environment | Outdoor |
| 11 | Flatness | Between adjacent pixels≤0.5mm |
| 12 | Driving IC | MBI5120P |
| 13 | Scan Mode | 1/4 constant current |
| 14 | Max. Power Consumption | ≤35W |
| 15 | Module Net Weight | ≤800g |
| 16 | Grey Level | 16384 levels |
| 17 | Display Color | 16777216 kinds |
| 18 | Best Viewing Distance | 10~150 m |
| 19 | Frame Rate | ≥60 Hz/s |
| 20 | Refresh Rate | >230 Hz (All grey level field) |
| 21 | Brightness Adjustment | 256 level manual/automatic |
| 22 | Continuous Working Hours | >72 hours |
| 23 | Uniformity | Strong pixel light, even module brightness |
| 24 | Malfunction Dot Rate | <0.01‰ |
| 25 | IP | IP65 |
| 26 | Average Power Consumption | ≤380W/m2 |
| 27 | Max. Power Consumption | ≤540 W/m2 |
| 28 | Working Voltage | AC220/380V±10%,50Hz |
| 29 | Storage Temp. | -30ºC ~ 90ºC |
| 30 | Working Temp. | -20ºC ~ +50ºC |
| 31 | Relative Humidity | 25%~95% RH |
| 32 | MTBF | ≥10,000 hours |
| 33 | Screen Life-span | ≥100,000 hours |
| 34 | Transmission Distance | Network Cable: <100m
Multi-mode Optical Fiber:<300m
Mono-mode Optical Fiber:300m-10km |
| 35 | Operating System | WINDOWS 98,WINDOWS NT,
WINDOWS 2000 ,WINDOWS XP |
| 36 | Control System | Synchronous & Asynchronous Control |
| 37 | Control Mode | WINXP Computer + Control Software/hardware
+ Display Software/hardware |
| 38 | Protection | Moisture/dust/ Resistant, electrostatic prevention,
shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage |
| 39 | Display Content | Word, Image & Video |

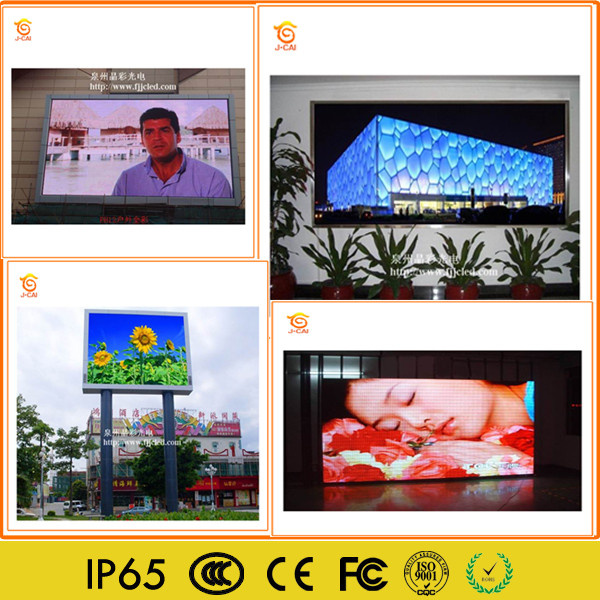

Project info Cabinet-power supply-HD control card( we are general agent of the HD control card factory)
Production infoOur service
1). Price: we have the best competitive High Cost-effective of Price/ features.
2). Automatic: From selecting LED chip, led encapsulation, PCB soldering, LED module, are operated by Automatic machine, improve showing effect of led screen.
3). Quality: From material to product finished, from design to produce, all steps are controlled by our workshop, that's the guarantee of the reliability.
Especially we have the strictly 24 hours old ageing test to ensure the quality of the products.
4). Service: Warranty is up to 2 years, Service time is 24hours x 7 days.
A great news This month we adjusted the price for full color module, it is lower than before. Then it is maybe necessary for you to know. Let me know which item you are intereted in, I can offer it and we can first have a trial order for you to check our quality. i will send the indoor and outdoor full color modules price to you.
We can talk futher, I also will send the our company info such as
price adjusted and develop the new produts to you in the future. Thanks for your time, welcome to contact us for more informations. mobile phone:+86 155 0595 0576
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
