| Prod Model: |

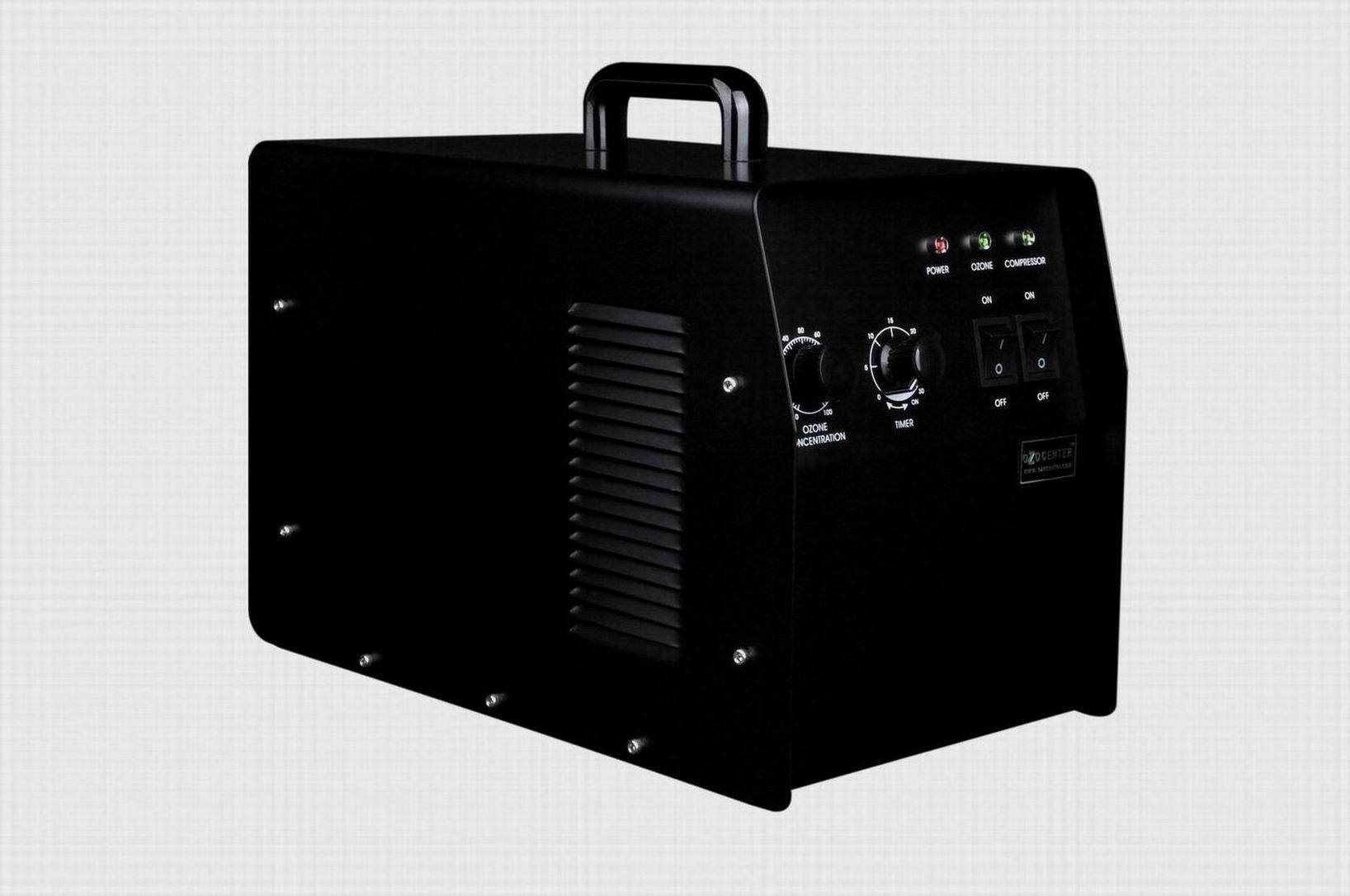

Portable ozone generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1.Tconnect Outside Air Source Or Oxygen: |
Ozone Output Adjustable: 20%-100%. |
| Two Options Of Timer: 5-30 Minutes Or Co: |
Sterilization: Destroy a Variety of Bacteria and V |
| Detoxification: Effectively Remove The R: |
Deodorization: Eliminate Mould, Smoke etc |
| Oxygen Increasing: Improve The Oxygen Le: |
Health: Air Purification, Expedite Human Metabolis |
| Certification: |
CE |
| Usage: |
Home |
| Purifying Technology: |
Ozone |
| Type: |
Ozone |
| Structure: |
Portable |
Product Description
CH-BP
Features:
1. Connect outside air source or oxygen tank.
It can meet with different requirements of ozone output & concentration for different application.
2. Ozone output adjustable: 20%-100%.
3. Two options of timer: 5-30 minutes or continuously.
Functions:
1. Sterilization: Destroy a variety of bacteria and viruses efficiently but without secondary pollution.
2. Detoxification: Effectively remove the residual pesticides from vegetables and fruits.
3. Deodorization: Eliminate mould, smoke etc.
4. Oxygen increasing: Improve the oxygen level for air and water.
5. Health: Air purification, expedite human metabolism.
Applications:
1. Air purify for room, such as house (Living room; Kitchen; Bathroom; Garage; Basement; Indoors garden; Pet room) hotel, Karaoke, club, public house, Internet bar, game center, bus station, supermarket, office buildings, Vehicle and boat, fishing shop, flower shop.
2. Washing fruits & vegetables, meats to kill bacteria, viruses and decompose pesticides.
3. Water Purifying and Sterilizing. (Small swimming pool and SPA, Domestic/waste water sterilizing)
4. Sterilize and disinfect for daily supplies, such as clothes, pillow towel, tool etc.
|
Item |
Unit |
CH-BP 3G |
CH-BP 5G |
CH-BP 6G |
|
Air flow rate |
LPM |
5~10 |
10~20 |
15~30 |
|
Ozone output |
G/Hr |
3 |
5 |
6 |
|
Power |
Kw |
≤ 0.17 |
≤ 0.18 |
≤ 0.21 |
|
Fitting diameter |
mm |
4× 8 |
|
Fuse of power supply |
A |
3 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
390× 200× 310 |
|
Package size |
mm |
450× 240× 350 |
|
Net Weight |
Kg |
7.10 |
|
Suggested Water flow |
M 3 /Hr |
0.2~1.0 |
1.0~2.0 |
2.0~3.0 |
|
Suggested Space |
M 3 |
300~600 |
600~800 |
800~1000 |
We are located in Guangzhou City, Guangdong Province, China. It's a Professional ozone generator manufacturer specializing in R & D, design, Manufacture and processing of ozone products. We also provide professional Service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are portable Ozone Generators with the brand Of "oZocenter", CH-PT & CH-PTF series of Ceramic Ozone Tube, and CH-PC enamel Ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing and pharmaceutical industry. Our products, which seek for greater perfection and for th e quality goal of excellence, are reflected in the portable machine and patent parts. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new needs.
