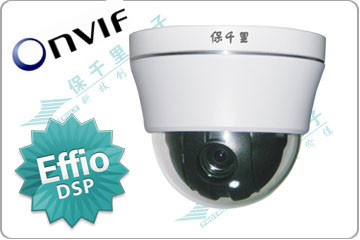

OEM IP Surveillance Camera with FCC and CE Certificate

Name: OEM IP Surveillance Camera with FCC and CE Certificate
Brand: ec-portal.com
SKU: 719329455
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Protruly

Special function: Support the mobile phone for remote monitoring, Support 3G network transmission, WiFi wireless transmission, network search function and WEP/WPA/WPA2 cipher mode,
, front-end SD card for memory. AWB, MASK, DNR, Strong light inhibition, Mirror, 8 languages, take high-performance DSP to realize complete digital and ultra-high speed focus function

Protruly ip surveillance Camera Key Features:
1. Support D1, 2CIF, CIF, QCIF, (704*576, 704*288, 352*288, 176*144) resolution;
2. Support H. 264, MJPEG image compression encoding;
3. Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
4. Support any PTZ protocol; It can definite PTZ protocal document to upgrade and update;
5. Two-way voice Talkback, support external audio input and output;
6. Complete network protocol, support RTSP, VLC(PS/TS) Media Protocol;
7. Support the mobile phone for remote monitoring;
8. Support 3G network transmission;
9. Support WiFi wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
10. Support front-end SD card for memory

Protruly ip surveillance Camera Operating system:
Windows2000server/professional/XP
Network protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/video card support zoom/DirectX8.0+

Protruly ip surveillance Camera Advantage:
> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.
> It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot, Can automatically adapt to the environment and target distance changes in light and dark.
> Level of 360 ° Rotation, a precision stepper motor drive, smooth operation, accurate positioning
> built-in full-screen OSD menu, compatible with a variety of control protocols, baud rate is adjustable

Focal length / rotation speed automatic matching technique:
Manual adjustment, in long focal length situation, high speed reflect makes image quickly move when a slight touch of joystick, resulting a data loss. Based on a humanized design, the PTZ camera can automaticly adjust horizontal and vertical rotation speed according to focal length, so that manual operation is simple and easy to track targets.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.

4" mini IP intelligent high speed dome series (Fseries)
Key Features: 1.Support D1, 2CIF, CIF, QCIF,(704576 \ 704288 \ 352* \ 176*144) resolution; 2.Support H.264, MJPEG image compression encoding; 3.Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions; 4.Support any PTZ protocol ; it can definite PTZ protocal document to upgrade and update; 5.Two-way voice Talkback, support external audio input and output; 6.Complete network protocol, support RTSP, VLC ( PS/TS ) Media Protocol; 7.Support the mobile phone for remote monitoring; 8.Support 3G network transmission; 9.Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode; 10.Support front-end SD card for memory System : Operating system : Windows2000server/professional/XP Network protocol: TCP/IP Client PC : P4/128MRAM/40GHD/video card support zoom/DirectX8.0+
Madel No.	BQL/FeX39-10/N
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	480TVL
Effective Pixel	PAL:500(H)X582(V) NTSC:510(H)X492(V)
Minimum Illumination	0.001Lux-0.05Lux, Color to B/W
Application Environment	Indoor
Installation way	Ceiling Mount
Housing protection	IP50
S/N Radio	≥ 50dB ( enhanced )
Filter	single filter, IR sensor
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds
Lens	3.8-38mm
Optical zoom	10X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Rotation Speed	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Camera protocols	supported SONY or Samsung
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	AWB,MASK,DNR,Strong light inhibition,Mirror
Compression standard	Video: H.264/MJPEG Audio: G.711
Output code rate	Video: 32K ~ 4Mbps/1M ~ 16Mbps Audio: 64Kbps
Image	Image size :704576 ; 704288 ; 352288 ; 176144;704480 ; 704240 ; 352*240 Frame Rate: 1-30f/s Image Setting : Brightness,contrast,saturation,hue,Exposal control
Function	Support: Mobile phone monitoring / Two-way Talkback for optional / Video frequency / Audio frequency / Motion detection / Area shield / SD Card local storage for optional / With WIFI for optional (it is optional to use high power WIFI module) / With 3G module for optional / With POE power supply for optional / Serial interface / Alarm interface
Network protocol	PPPoE \ DHCP \ TCP/IP \ HTTP \ UDP \ RTP/RTCP \ RTSP \ UPNP \ SMTP \ FTP \ SIP \ DDNS \ DNS
Video frequency	One-way video input
Audio frequency	One-way linear audio input/output; one-way microphone input; one-way earphone output
Serial interface	1 for input and 1 for output
Alarm interface	1 RS-232 interface (for parameter setting, equipment maintenance and transparent transmission) 1 RS-485 interface (for PTZ control or transparent transmission)
Power Supply	DC12V/1.5A
Material	Aluminum shell
Work Environment	-20 Celsius degree~+50 Celsius degree (select temperature control accessories), < 95%RH

Prod Model:	BQL/FeX39-10/N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor:	1/4" Sony CCD
Lens:	3.8-38mm
OSD:	Full -Screen Chinese / English Menu
Optical Zoom / Digital Zoom:	Optical Zoom 10X / Optional 10X
Main Functions 1:	Support The Mobile Phone for Remote Monitoring
Main Functions 2:	Support 3G Network Transmission
Main Functions 3:	Support WiFi Wireless Transmission, Support Networ
Main Functions 4:	Support Front-End SD Card for Memory
Sensor:	CCD
Feature:	Awb,Mask,Dnr,Strong Light Inhibition,Mirror
Technology:	Pan / Tilt / Zoom
Horizontal Resolution:	480tvl
Type:	PTZ IP Camera
Style:	Mini IP Camera
Kind:	Auto/Manual

Overview:
Shenzhen Protruly Electronics Co., Ltd. is a state-level high-tech enterprise focuses on the research and development of optical-electro-mechanical core technology relates to image, mainly develops high-end image acquisition, processing, display technology, and applies high-grade technology in the field of security and protection, education, commerce and high-end home video products. Since its founding, Protruly insists innovation and become a leader in core technologies, take surpassing the world's leading enterprise as development principle and "technology create value" for the enterprise mission. Protruly uses self-developed high-end technology and make complete made-in-China intelligent spherical night vision camera, LCD video wall and home security products, and enjoys good reputation in the security market with its high-end performance and top quality. From 2011, Protruly will take the value of technology further into the commerce, education, household and other industries to create wider market prospect.

Founded in 2006, Protruly's production base is located in Longhua New Area, Shenzhen. The company has a professional R&D center, brings together top international research and development of light mechanical engineers, spending hugh sums for R&D investment, is commuted to high-end image acquisition, processing, display of core technology development and innovation; Company has a stable, professional, high-quality technical services and marketing team.

Protruly is the executive director units of China Security Association, vice president unit of Association of Guangdong security and member untit of many associations in the field of security and protection. The company has software copyrights, inventions and utility models, design patents and many other intellectual property protections.

Protruly has gained a lot of results by using high-end technology in the security industry. In 2008, Protruly launched zoom camera with completely independent intellectual property rights and high cost effectiveness! And it was also the pioneer in R&D of high speed dome camera and the first domestic enterprise to be able to compete with international top technology. In 2009, Protruly launched high cost-effective SLCD monitors with core technology, includes the original "dual-splicing" technology, which fulfills 4 in 1 monitor and make Protruly the inaugurator of big screen monitoring, and the launch of 6.7mm bezel LCD video wall in 2010 even gained its firm foothold in this industry.

In 2011, Protruly keep the leading position of security and protection technology, while formally move into commerce, education and household market! Currently, the company has developed interactive educational facilities, commercial TV, advertising player, digital signage, portable displays, night vision cameras, burglar alarms and other products, and reserves R&D and production strength of the above high-end video equipments.
The company passed the ISO9001 international quality management system, all products got through the test form Chinese Ministry of Public Security and Police Electronic Product Quality Testing Center, China 3C compulsory certification, CE certification, the U. S. FCC certification and the Chinese energy-saving certification. And it is top-100 enterprise in security manufacturing, top-10 security camera companies, Trustworthy Enterprise cited by Guangdong Provincial Administration for Industry and independent innovation brand. Cited as advanced enterprise implementing ISO international management system and gained AAA grade credit rating. Protruly's enterprise mission: Science and technology create value!

Protruly's business purposes: Promises, reputation, integrity, ensure customer's best profit and long-term cooperative relations with customers.

Protruly's operating principle: To be the outstanding student of customer, strive to achieve "good quality, good price system and good sales service.
