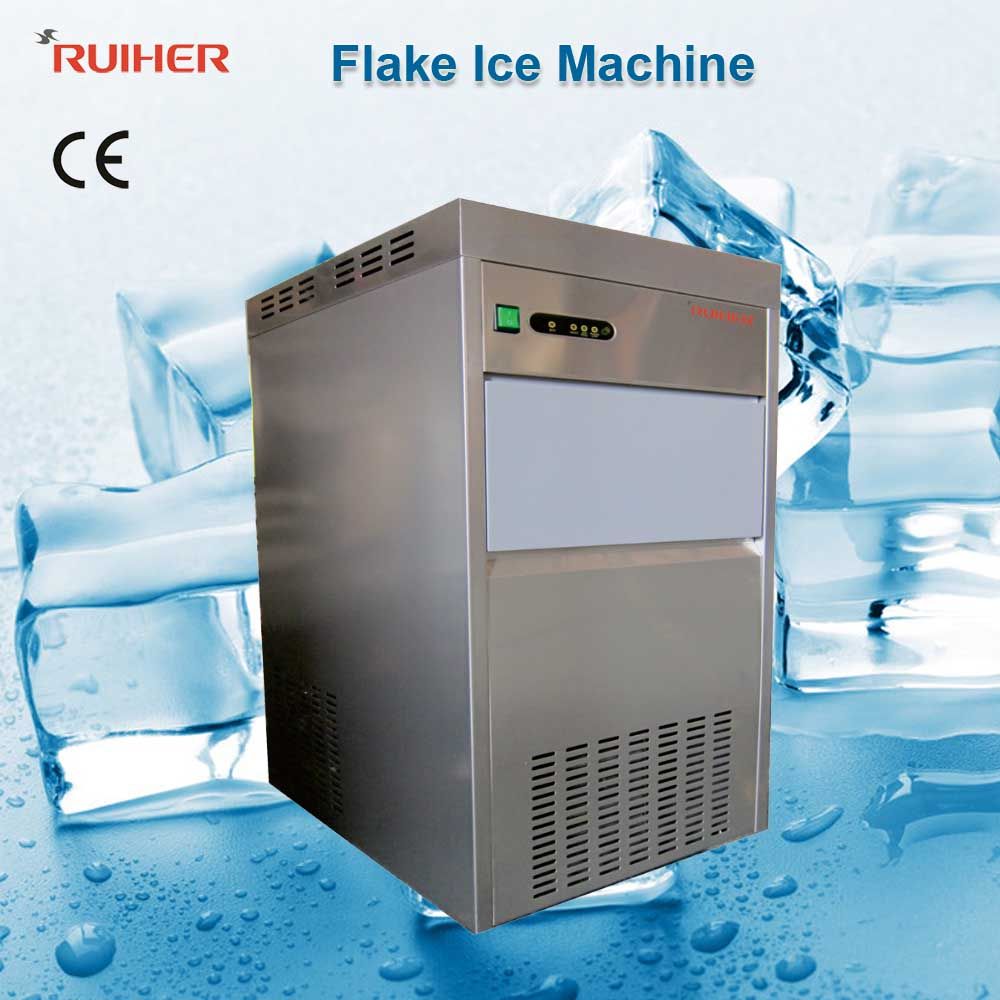

Flake Ice Machine
Working principle:
Ruiher have our own patented auger-type evaporator cylinders. Water is sprayed on the inner surface of the cylinder and begins to freeze into a thin layer. A spinning auger chops the thin ice into small flakes. The rotating auger blades force the loose ice flakes up to the top of the cylinder and out, where it falls over the edges of the auger like snow.
Flake ice also called Nugget ice, Cubelet ice, Chewblet ice and Pearl Ice.
Applications:
The soft tiny flakes are the ice easy to pack and shape. Therefore, flake ice is often chosen by supermarkets to display fresh seafood and meats without damaging the food items. Restaurants with salad bars also find flake ice most suitable to keep plates and bowls of salad ingredients cool.
Hospitals and other health care facilities also commonly use flakers since the flake ice is soft and melts quickly, so patients can be hydrated without worrying about choking on ice. Flake ice is also great for shaping and packing around injured extremities, so sports facilities and rehab facilities also rely on flake ice.
Features:
- Produces edible crushed ice (snow ice) at a stable and continuous speed
- Food grade SUS 304 stainless steel exterior.
-Italy Haitec auger roller bearings and ZD motor are used, low noise and stable performance.
-Flake ice in a uniformed, small, soft and compacted shape with a slow melt rate. Without bruising and holds in place without tipping/spilling.
-Due to the anger system the water consumption is equal to the ice production.
-Water inlet system controlled by water float in water tank, less water consumption and no dead water.
-Foodsafe, anti-mirobial Ice bin made of foaming polyurethane, good insulation.
- Advanced diagnostics computerized control
- Front panel in & out airflow for built-in installation
- Easily accessible front panel mount ON-OFF Switch
- Routine Maintenance visible alarm light on front panel
- Ergonomically designed ice storage access with sliding door
- Low energy consumption
- Protection against phase deficiency, water shortage, full-ice.
- CFC-free R-134a Refrigerant
-Fully automatic running and easy to use
|
SPECIFICATION |
|
Item |
IMS-85 |
IMS-100 |
IMS-120 |
|
Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
|
Type of Ice |
Nugget Ice |
Nugget Ice |
Nugget Ice |
|
Max Ice Production(24 hours) |
187 lbs/ 85kgs |
220 lbs/ 100kgs |
264 lbs/ 120 kgs |
|
Ice Storage |
70 lbs/ 32kgs |
70 lbs/ 32kgs |
70 lbs/ 32kgs |
|
Production per Cycle |
1280g |
1416g |
1650g |
|
Cooling System |
A |
A |
A |
|
|
|
Voltage Standard |
200-240VAC/50-60Hz |
200-240VAC/50-60Hz |
200-240VAC/50-60Hz |
|
100-120VAC/50-60Hz |
100-120VAC/50-60Hz |
100-120VAC/50-60Hz |
|
Power |
460W |
490W |
530W |
|
Type of Refrigerant |
R134A |
R134A |
R134A |
|
Machine Dimensions(W*D*H) |
548*611*873mm |
548*611*873mm |
500*612*900mm |
|
Net Weight |
46 kgs |
58 kgs |
60 kgs |
|
|
|
Packing Dimensions(W*D*H) |
625*690*922mm |
625*690*922mm |
625*690*922mm |
|
Gross Weight |
52 kgs |
64 kgs |
66 kgs |
