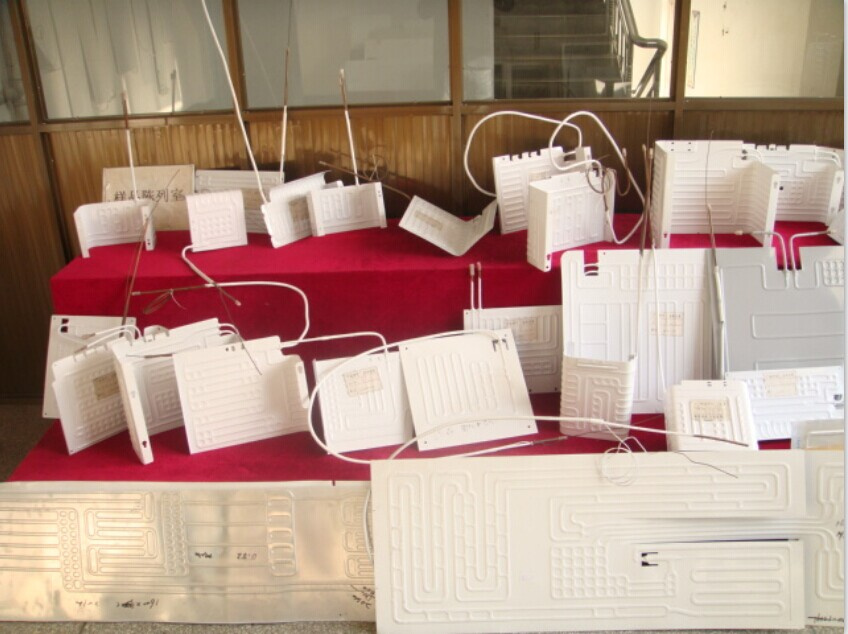

No Frost Roll Bond Evaporator for Freezer, Refrigerator, Solar
Certificate: Rohs, ISO9001
Brand: Jretek
Detailed Product
Which widely applied to refrigerator, freezer, showcase, water dispenser, wine cabinet and solar panel and so on.
Application: Refrigeration parts
Structure:
Double side roll bond evaporator
Single side roll bond evaporator
Part single side roll bond evaporator.
Key process:
Preparing materials cleaning printing rolling annealing - blowing up punching folding and sharpening adding the capillary assemble welding leakage testing cleaning and drying coating - inspection packing.
Max dimension: Width 800mm, length 2000mm.
We can produce according to your requirement
Raw materials (Al plate)
1. Al plate: The thickness of finished product is 1.1-2.0mm
2. The thickness of raw Al plate: 1.7-2.15mm
Performance:
Surface is treated with powder painting to prevent the corrosion.
Inner cleanness can meet the requirement of R134a&CFC cooling system.
Can satisfy the cooling capability.
Productivity: 3million pieces per year(10000 pieces per day)
We supply roll bond evaporator(evaporator for refrigerator and ice box),evaporator,condenser,refrigeration .
| Raw material | Al-plate: finished products thickness: 1.1 2.0mm,
raw material Al plate thickness: 1.4 2.5mm | | Structure | Double side rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator | | Key process | Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing | | Technical Standards | 1) Size: width 1150 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. | | Performance | 1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements. | | Performance | 3.5 million sets per year (10000 sets per day) |
|
| R134a Cooling System Tube Inside standards |
| Residual moisture | ≤5 /100cm3 | | Residual impurity | ≤1 /100cm3 | | Residual mineral oil | ≤100 /100cm3 | | Residual chlorine | ≤5vloppm | | Residual paraffin | ≤3 / | | Biggest single impurity | ≤0.5mm |
|
| Specification of coating |
| Coating thickness | thickness of coating40 90 μ m | | Hardness of coating | ≥2H | | Impact of coating | 50cm?kg/cm impact, no crack | | Adhesion of coating | ≥two grade | | Flexibility of coating | Around R=3D bend 180?, no crack or no fall off | Color tolerance of powder
painting | E≤1.5 |
|
