NFC Mobile Mate Card Reader/Headphone Jack Card Reader--ACR35
| Price: |
US $ 32/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description

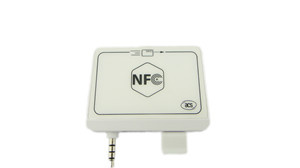

NFC Mobile Mate Card Reader/Headphone jack card reader--ACR35
Overview: ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost. With a rechargeable Lithium-ion battery and standard 3.5 mm audio jack interface, the ACR35 NFC Mobile Mate can seamlessly extend the usefulness of any mobile device. It delivers NFC reader functionality and mobility, which allows you to use NFC and contactless applications, even for mobile readers without built-in NFC functionality. ACR35 NFC Mobile Mate uses AES-128 encryption algorithm and DUKPT Key Management system to secure your data. Portable. Modern. Versatile. Compact. ACR35 NFC MobileaMate Card Reader is a handy and lightweight card reader that is perfect for users who wish to transact securely while on the go. Features:- 3.5mm Audio Jack Interface
- Powered by a Lithium-ion battery (rechargeable through PC-linked mode)
- Smart Card Reader:
- Built-in antenna for contactless tag access, with reading distance of up to 50mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards
- Supports MIFARE
- Supports FeliCa
- Supports ISO 18092 Tags (NFC Tags)*
- Built-in anti-collision feature
- NFC Support:
- Card reader/writer mode
- Magnetic Stripe Card Reader:
- Reads up to two tracks of card data (Track 1 / Track 2)
- Capable of bidirectional reading
- Supports AES128 encryption algorithm
- Supports DUKPT Key Management System
- Supports ISO 7810 / 7811 magnetic cards
- Supports Hi-Coercivity and Low-Coercivity magnetic cards
- Support JIS1 and JIS2
Applications:- Mobile Banking & Payment
- e-Healthcare
- e-Purse & Loyalty
Tech Specs:| Dimensions | 60.0mm (L) x 45.0mm (W) x 13.3mm (H) |
| Interface | 3.5mm 4-pole audio jack |
| Operating Distance | Up to 50mm (depending on the tag type) |
| Power | Lithium-ion battery (rechargeable through USB) |
| Supply Voltage | 3.2 to 3.7 V DC |
| Supply Current | 85 mA |
| Operating Temperature | 0-50°C |
| Card Swipe Speed | Max. 10 IPS (inches per second) |
| Card Swipe Cycles | Min. 500,000 |
| Magnetic Stripe Card Support | ISO7810 / ISO7811 cards
Hi-coercivity and Low-coercivity cards
JIS1 and JIS2 cards |
| Smart Card Interface Support | ISO 14443 Part 4 Type A and B cards
MIFARE
FeliCa
ISO 18092 Tags (NFC Tags) (except Topaz type) |
| Compliance / Certifications | ISO14443, ISO/IEC 18092, CE, FCC, VCCI, RoHS 2, REACH |
| Operating System Support | Android™ 2.0 and above
iOS 5.0 and above |
