| Prod Model: |
topaz512 NFC card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequencys: |
13.56MHz |
| Chip: |
Nfc Chip Topaz512 |
| Free Samples: |
Yes |
| Dimension: |
Cr80 85.60 X 53.98mm |
| Thickness: |
0.84mm |
| Numbering: |
Jet DOT/ Thermo Transfer/ Laser Engrave |
| Materials: |
PVC |
| Printing: |
Yes, on Both Sides |
| Encoding: |
Yes, Optional |
| Lead Time: |
7~10days |
| Function: |
Information |
| Material: |
PVC |
| Frequency: |
High Frequency |
| Application Field: |
Nfc APP, Promotion |
Product Description
1. URL encoding for promotion ,With a website URL,we can realize multifunctions
2.Contact information encoding,Widly used as business card or name card
3.Text encoding ,easy to help us to store the information\
4.Telephone / SMS encoding ,Can dial someone's telephone or send a message directly when we tap the NFC tag
5.Wifi ---Can connect the available wifi diretly ,no need to insert the password,To be widly used for hotel and meeting room.
6. Smart home furnishing--Use our smartphone to control our electrical appliance and other smart home furnishing

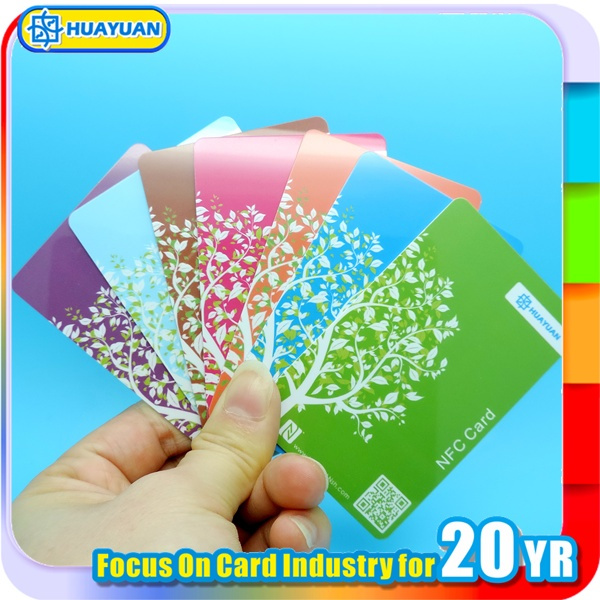

newest 13.56mhz topaz512 NFC card with security url ecoding
Technical Features:
Compliant with the Type 1 tag format,which has been mandated by the NFC Forum
Targeted for operation with NFC devices which work to ISO/IEC 18092(NFCIP-1) and ISO/IEC 21481(NFCIP-2)
ISO/IEC 14443 Type A modulation scheme
Passive RFID tag operating in the unlicensed 13.56MHz band
Read and write(R/W) operation
8-byte read and 8-byte write commands
Fast data communication rate of 106kbps
UID provision to enable collision detectin by use of the Read UID(RID)command.
Data communications are protected by 16-bit CRC integrity checking
EEPROM based user read/write memory area organized as blocks of 8 bytes
7 bytes of Unique Identification(UID) number for use in data authentication/anticloning
480 bytes of user read/write memory
64 bits(8 bytes) of OTP memory
-----------------------------------------------------------------------------------------------
| Size | CR80, 85.5*54mm, other size are available upon request |
| Thickness | Typically 0.82+/-0.02mm. Options 0.6~0.8mm |
| Material | PVC, PET, PETG |
| Finishing | Glossy, Matte, Semi-glossy, Spot UV Varnish. |
| Printing | Full colors offset printing,
silk screen printing |
| Personalization | Chip Encoding,
Ink jet numbers, Thermal numbers,
Laser engraving, Embossing, etc |
| Other feature | Magnetic stripe (300 oe, 2750 oe, 4000 oe),
barcode, Signature Panel,
Hot stamp, Hologram, Hole punching,
Thermal rewritable film |
