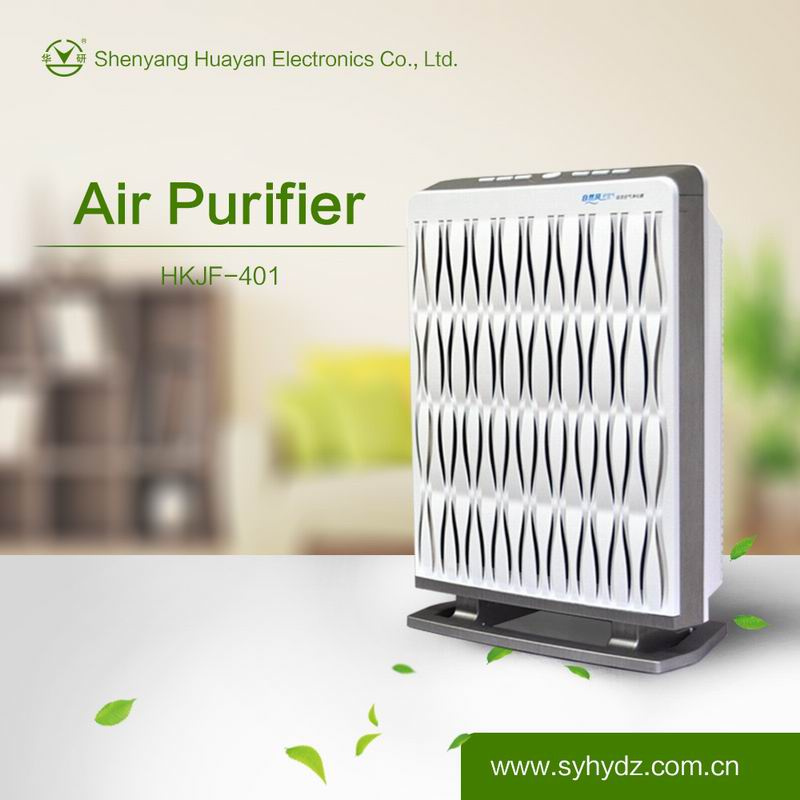

Product introduction
The natural wind laminar air purifier uses many wind machines combined together to work and horizontal laminar flow patent technology which is using large filtering screen to supply wind face to face. It has the working characteristics of large filtration area, fast purification, energy-saving and low noise. It can filter pollutants indoors, such as PM2.5, formaldehyde, toluene, TVOC, bacteria and so on, and give you a clean home space.
Main Features
using laminar flow working principle with large filtering screen to supply wind face to face, which can purify the air efficiently and rapidly.
Using six wind machines with low noise to supply uniform wind and reducing the filtration waste.
Short wind duct, reducing wind energy loss and noise
Adopting low-resistance and high-efficiency filter HEPA, and professional filtering screen combined with high efficiency active carbon adsorption materials and harmful gas decomposition materials.
Huge HEPA unfolding area, and much material adsorbing and decomposing gaseous pollutants, which prolong the life time of the filtering screen.
Using low voltage to supply electricity , safe and reliable.
Technical Specifications
CADR |
411 m³/h |
Power supply |
100-240 50/60Hz
(DC 12V power source adapter ) |
Power |
5.4W(low) 10.8W(high) 25.1W(quick) |
Noise level |
48dB(A) (quick shift) |
Dimension |
460*190 (pedestal 240)*655mm |
Cover |
530*315*735 mm |
Net weight |
12Kg |
Gross Weight |
13Kg |
Formaldehyde removal efficiency |
94% (30m³, per hour) |
Efficiency of purifying particle pollutant |
16.37 |
Area of application |
60m² |
Application |
homes, hotels, apartments, offices, shops |
Shenyang Huayan electronics Co., Ltd., established in 1996, is a high-tech enterprise engaged in the research, development and production of the professional equipment, such as health care and medical equipment, air purification disinfection equipment and so on. We are located in Shenyang, the central city in the northeast of China, registered in Hunnan high-tech development zone.
We have obtained medical equipment production license, medical equipment business license, disinfection equipment production health license and other professional business qualifications, passed the I S O 9 0 0 1: 2 0 0 8 and I S O 1 3 4 8 5: 2 0 0 3 quality management system certification and owned dozens of technology patents.
The main development direction of the company is to produce the equipment related to air, including physical treatment, health care, purification, disinfection and adjunctive treatment equipment. The distribution channels of laminar flow air purifier, bionic negative ion generator, dynamic air disinfector and air purification light have covered all cities and provinces around China. In addition, our products are also exported through agencies to clients all over the world.
We warmly welcome friends around world to cooperate with us in the field of air safety and health, devoted to product innovation and market development, seeking common development.
