| Prod Model: |
N050YL-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Color: |
Black |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description

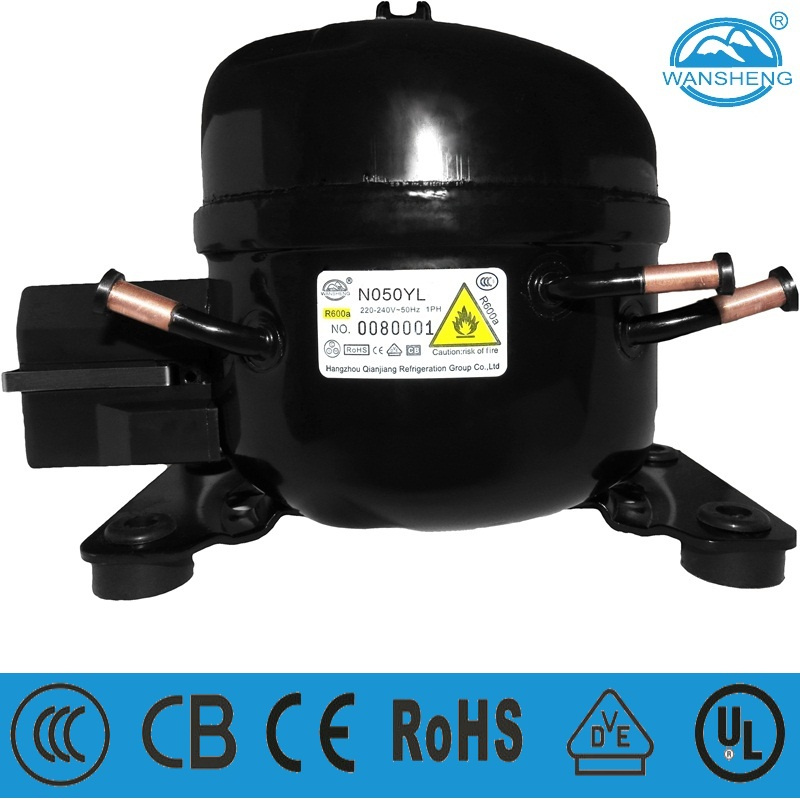

1. N050YL is R600a Compressor
2. Cheap price and good service provided for the compressor N085YL
3. Starting relay is PTC
4. Frequency only for 50HZ
5. Voltage application from 220 to 240V
6. COP is 1.2 when Evap. Temp. Is 7.2° C
7. RSIR Motor
8. Cooling type S
9. Low Back Pressure
10. Several general requirements as below
A. Compressor should be stored in a dry and drafty place.
B. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
C. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
D. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
11. N050YL is our new series compressor
12. N Series used in drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other small-sized refrigeration equipments
13. N Series Compressors is small size
14. High efficiency & reliability
15. Reliable starting performance
16. Low sound & vibration
| R600a WANSHENG Low Back Pressure(LBP) Compressor |
| Wansheng R600a Low Back Pressure(LBP) compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| N series |
| N050YL | 220-240V/50Hz | 3.3 | 53 | 44.2 | 1/15- | 1.2 | RSIR | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
