| Prod Model: |
KJ series |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Material: |
Cast Iron |
| Type: |
Ventilation Fan |
Product Description

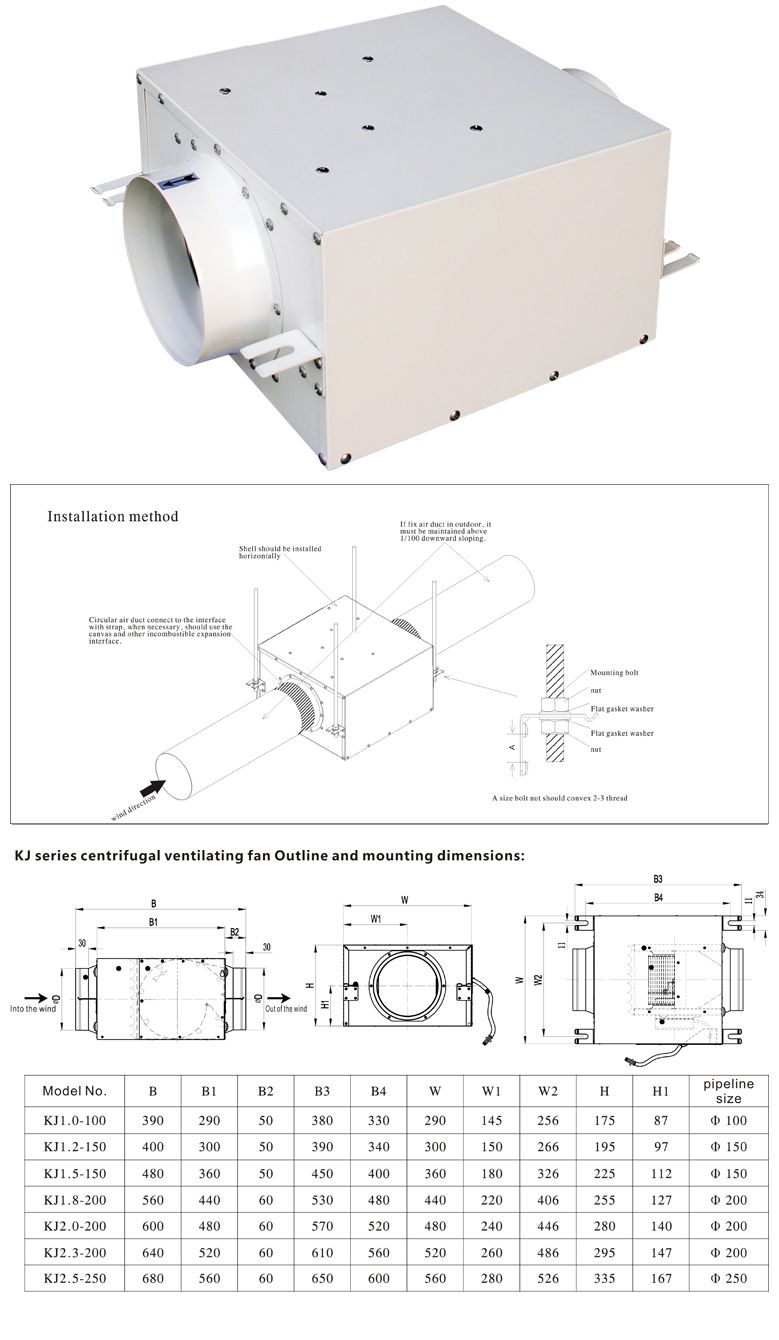

Mute centrifugal ventilating fan is improved on the based on the GDF centrifugal duct fan. It is new design with maintain of powerful airflow, low noise, and further reducing volume and noise.
The features of the mute centrifugal ventilating fan:
1. Motor power in two level stalls
The fan design type is A Straight Alliance, for each model of power have "strong and weak" two stalls. The inlet form is single also the inlet and outlet is the same diameter, and the voltage is 220V, single-phase power, which is suit for customers.
2. New wind direction
The shape of the body's internal sound-absorbing materials according to the air duct sucked into the airflow to design, smooth airflow directed to the built-in fan blades. The the mute type dedicated air duct can reduce the noise. Which is quiet, efficient and compact.
3. A new bidirectional inhalation-type blades
According to the airflow distribution demand in consumer speakers internal and the two sides of fan blade adopts two different characteristics design. Inner side (near motor surface) is the small airflow and high static pressure characteristics, out side is the powerful airflow and low static pressure characteristics. And with the blade-shaped design so that to achieve to small-caliber, high static pressure and low power consumption.
4. The Chiba turbine structure
Bidirectional inhaled Chiba turbine structure make the air from both sides of the inhalation in constant rate, and further reducing noise and volume.
Model.No
|
shift
|
power
|
power consumption
|
Rotational speed
|
air flow
|
Static pressure
|
noise
|
|
|
(V)
|
(W)
|
(r/min)
|
(m³/h)
|
(Pa)
|
(dB)
|
KJ1.0-100
|
powerful
|
220
|
17
|
1320
|
116
|
84
|
18
|
weak
|
220
|
9
|
1080
|
91
|
56
|
16 |
KJ1.2-150
|
powerful
|
220
|
45
|
1320
|
368
|
136
|
21
|
weak
|
220
|
32
|
1120
|
295
|
100
|
17
|
KJ1.5-150
|
powerful
|
220
|
90
|
1380
|
528
|
182
|
27
|
weak
|
220
|
55
|
1120
|
445
|
120
|
24
|
KJ1.8-200
|
powerful
|
220
|
135
|
1400
|
780
|
245
|
34
|
weak
|
220
|
90
|
1220
|
680
|
186
|
31
|
KJ2.0-200
|
powerful
|
220
|
175
|
1400
|
950
|
285
|
36
|
weak
|
220
|
115
|
1220
|
830
|
216
|
32
|
KJ2.3-200
|
powerful
|
220
|
230
|
1400
|
1220
|
390
|
41
|
weak
|
220
|
155
|
1220
|
1060
|
298
|
38
|
KJ2.5-250
|
powerful
|
220
|
400
|
1420
|
2150
|
490
|
45
|
weak
|
220
|
260
|
1230
|
1865
|
370
|
42
|
