| Prod Model: |
NY-UK-REF5004 |
| Markets: |
North America,South America,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Commodity: |
MP3 Player PCB Board |
| Layer Count: |
2 Layers |
| Base Material Details: |
Fr-4 (Tg140) |
| Board Thickness: |
1.0mm |
| Finished Copper Thickness/Weight: |
1oz |
| Laminate Size/Board Size: |
127mm*94mm/Panel |
| Soldermask: |
Lpi Green |
| Silkscreen/Legend: |
White |
| Surface Finishing/Treatment: |
Enig |
| Outline/Contour/Profile: |
CNC Routing, Milling +V-Cutting |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
Product Description

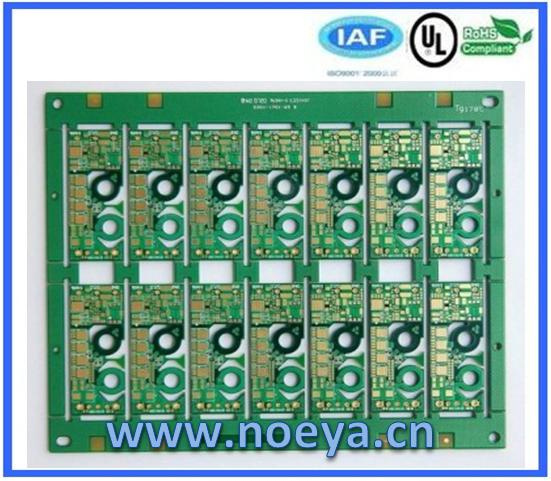

MP3 player PCB board:
Technical details:
1)layer count: 2 layers
2)material details:
1.0mFR-4(TG140),
1oz for finished copper weight
Thickness tolerance: +/-10%
Min. Board thickness:
0.4mm for 2 layers and 4 layers
0.8mm for 6 layers
3)surface finishing/surface treatment: ENIG (Au: 5U")
4)Min conductor line width/space: 5mil
5)Min. Machanical Hole: 0.26mm
Hole tolerance PTH: +/-3mil
Min. Solder bridge: 0.08mm
6)Outline/profile/contour: CNC Routing, CNC milling +v-cutting Drills: CNC
7)Lead time: 5days for prototypes, 7-9 days for mass Production
8)Certification: RoHS&UL
9)Application: MP3 player
10)Board size details and panelized details:
Board size: 127mm*94mm/panel
Panelized details: Each panel with 14PCS
Breaking off strips: 2*10MM(top&bottom) +2*4mm(left+right)
11)circuit characteristic: Simple
Advantages:
1) Best quality and attractive price.
2)Best on time shipping
3)with E-test
4)Customer service
5)Instant quote
6)No minimum lot Requirements
(Prototypes and small qty are both acceptable for us)
7)Ultra modern manufacturing facility
8)Main markets:
United Kingdom and Portugal
Hot-selling time: Mar and Apr in 2012
9) Capacity:
8, 000sqm/month for 6 layers PCB;
10, 000sqm/month for 4 layers PCB;
12, 000sqm/month for 2 layers PCB;
15, 000sqm/month for 1 layer PCB
|
Base material |
FR-1(94v0), FR-4, CEM-1, rogers |
Compliant |
UL, RoHs, ISO9001-2000 |
|
Max Board size |
600*600mm |
Standard |
IPC-A-600F, IPC-D-300G, MIL-STD-105D LEVEL II |
|
Board thickness |
0.4-3.2mm |
Application |
Home appliances, electronics, didital camera, LCD TV sets, medical equipments, telecommunication, LED lightings, street light, mobile phone, computer, laptop test equipment and power meter, electrical weighing scale, desk lamp, microphone, spacer, controller, receiver, transmitter, consumer electronics, etc. |
|
Copper thickness |
0.5-3oz |
Acceptable |
Small quantity and prototypes |
|
Special tech |
BGA, PTH, model punching hole/Outline, filling vias through hot oil perm, Blind and buried vias |
Lead time |
5-7days for prototypes, 9-13days for mass production |
|
Profile/Outline |
V-scoring, V-cutting, model punching, etching, milling, routing |
Available Service |
OEM, 24hrs service for fast prototype |
|
Surface treatment |
HASL, OSP, Immersion gold, gold plated(coating) |
trade terms |
EXW, FOBshenzhen, CIF----------Negotiable |
|
Best price to |
Mid-east(Egypt, Iran, Israel, Syria), USA, South america, India, south Africa and Europ |
shipping terms |
By ocean, By air, By international express(Fedex, DHL, UPS...) |
|
Main markets |
USA, Korea, Mid-east(Egypt, Iran, Isreal, Syria), Europea |
Package |
innerpackage: vacuum+desiccant outerpackage: Carton |
|
Our equipments |
|
1. Drilling workshop |
4 drilling bits of drilling machine: 4 sets |
|
2 drilling bits of drilling machine: 2 sets |
|
2. photo plotting workshop |
Israel “ ORBOTECH” Photo Plotters |
|
3. AOI |
AOI machine |
|
4. IPQC |
“ OXFORD” CMI 700 Copper Thickness Tester |
|
5. Impedance test |
USA “ Tektronix” DSA 8200 Impedance Tester |
|
6. Outline workshop |
CNC routing machine: 7 sets |
|
angle-cutting machine |
|
V-cut machine |
|
7. Testing Workshop |
Surpass X-600: 2sets |
|
WTD FT-2808: 5sets |
|
WTD HV300: 1set |
|
8. X-ray |
X-ray machine |
|
Bare PCB Delivery Time |
|
Layer |
Prototype |
Mass production (Above 30(Square) |
|
1L |
Quick Sample: 12Hours Usual time: 1-2days |
5-7days |
|
2L |
Quick Sample: 24Hours Usual time: 3-4days |
7-9days |
|
4L |
Quick Sample: 48Hours Usual time: 5-7days |
9-10days |
|
6L |
Quick Sample: 72Hours Usual time: 6-8days |
10-12days |
Shenzhen Noeya Technology Co., Ltd. is a professional high-tech PCB manufacturer, which was built in 2003. Over years, our scale has been expanding: More than 300 workers, more than 1, 500m² For day-output, more than 500, 000m² For year-output.
Our main products mainly applied FR-4(TG135-170), CEM-1 and FR-1(94V0). The finished PCB boards including Single and double layer PCB, 4 layers PCB, 6 layer and 8 layer multilayer PCB, High Frequency PCB(HFPCB), HDI PCB, High density PCB with blind and buried-vias. Especially we are strong in single layer, double layer, 4 layers and 6 layers PCB board, which are widely applied in LED lightings, computers, Telecommunications, Auto, digital, home appliance and consumer electronics. Selling well both at home and abroad.
We've got a contingent of producing and sales team. With advanced processed devices and checking and testing technology. We are cooperating with much domestic and abroad branded business, like Gree, FOSS, BYD Auto and Gospell etc. We abide by the national laws and regulations, pay emphasis on environment and environmental production. We have already got ISO9001: 2000. Our products quality can meet IPC-A-600F \IPC-D-600G, MIL-STD-105D LEVEL II \and UL STANDARD. With strictly quality checking and strictly following-up the goods, supply exact lead time and quality products.
We will take a series of special training to improve our staff's professional skills and service quality and speed so that our management system can be enter into normalization and informationization.
