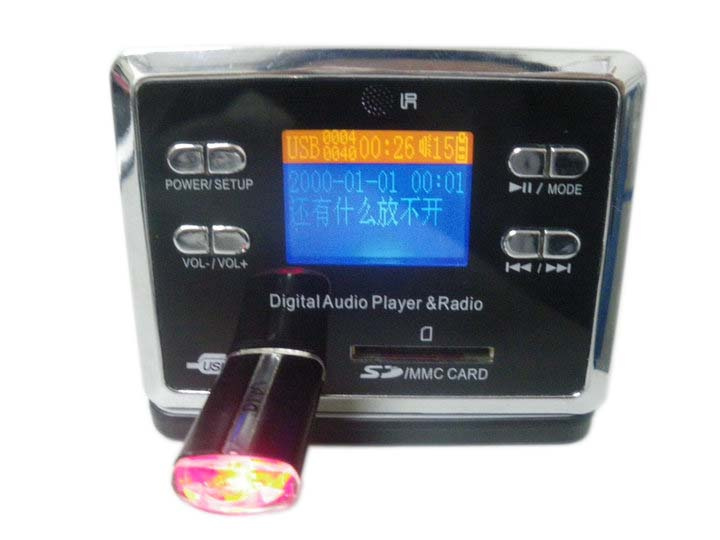

MP3 Player Module (TDK866)

Speaker MP3 player Moulde with USB & SD, remote control. Plays MP3 and wav files. Suitable for HI-Fi system, amplifier

1. Product Features
*With USB / SD / AUX/ FM (AUX, FM Optional)
*Built in RTC clock cirucit with time /alarm function
*MP3 decorder support 32-320kbps.
*Play/Pause, Next, Previous, Vol-, Vol+, Stop, EQ, Repeat, Mute
*FAT16 or FAT32 systems supported

*Memory the song number and volume even power cut down
*With Remote control
*Power supply optional (DC 3.7V / 5V)
*Built in Amplifier Optional
*LED display

2. Keys function on Panel
Previous: Short press for previous song in USB/SD ( or previous channel in FM), and move the position in setting the Time, Alarm, Timing swith off.
Play/Pause: Short press for Paly or Pause for USB and SD state (also for auto-search channels and save them in FM state). Set the alarm time in the Standy status.

Next: Short press for next song in USB/SD (or next channel in FM), and move the position between hour and minute in setting the Time, Alarm in Standby status.

VOL+: Volume down and Plus for setting Time, Alarm in standby status
VOL-: Volume down and minus for setting Time, Alarm in standby status
Mode: Switch order will be USB-SD-AUX-FM-USB (if have USB memory and SD card), Switch order will be USB-AUX-FUSB (if only have USB memory) Switch order will be SD-AUX-FM-SD (if only have SD card ), the Switch order will be AUX-FM-AUX (If no have USB Memory and SD card ), Long press for turn on /turn off (Standby), in Standby status, press for entering into time seting.

3. Remote Control Keys function
Power: ON/OFF (standby )
Mode: Same functions as Mode Button on Panel
PREV: Same functions as PREV Button on Panel
NEXT: Same functions as Next Button on Panel
VOL+: Same functions as VOL+ Button on Panel
VOL-: Same functions as VOL- Button on Panel
REP: For switching one song repeat or all song repeat in USB/SD state, default is all song repeat.
STOP: Press for stop playing, when you press play, it will start form first song again.
MUTE: Press for mute, press again release mute.
EQ: NORMAL-JAZZ-ROCK-POP-CLASSIC-COUN

PLAY/PAUSE: Same functions as Play/Pause button on Panel
Button 0-9: Select song in USB/SD state, if the song number over 9, just input the numbers in series.

4. Time and Alarm settings
In standy status, press MODE enter into time setting, Next and Previous for move setting position between hour and minute, VOL+ and VOL- for hours and minutes numbers puls / minus. Press MODE again for save ane exit setting.
In standby status, Press Play /Pause enter into Alarm setting. Next and Previous for move setting position between hour and minute, VOL+ and VOL- for hours and minutes numbers puls / minus. Press Play /Pause again for save ane exit setting.
