Mono 160X32 Graphic LCD Module Display with St7920 Controller

Mono 160X32 Graphic LCD Module Display with St7920 Controller
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Paypal
Prod Model: YB16032ZA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Format: 160X32 Dots
Outline Dimension: 122*144*14mm
Visual Area: 99*24mm
Active Area: 94.36*19.16mm
Diagonal Size: 4inch
IC Package: COB
IC Or Equivalent: St7920 or Eqv
Appearance: Blue/Yellow Green/Grey
Power Supply(Typ): 3.3V/5V
Backlight Current (Typ): 75mA
Type: LCM
Usage: Small-sized LCM
LCD Drive Mode: Static Drive LCD Module
Digital LCD Module Type: Counting Module
Display Technology: COB
Response Time: 2ms
Customized: Customized

Product Description

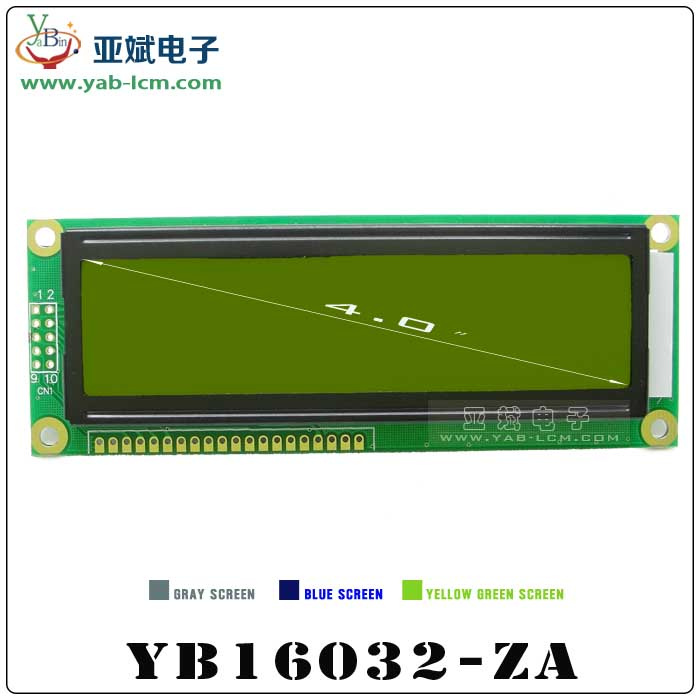

mono 160x32 Graphic LCD module display with ST7920 controller


1.Product Description

ManufacturerYaBin
Series NumberYB16032ZA
Display Format160x32 Dots
Outline Dimension122*144*14mm
Visual Area99*24mm
Active Area94.36*19.16mm
Diagonal Size4'
Dot (Pixel) Size0.55*0.56mm
Dot (Pixel) Pitch0.59*0.6mm
IC PackageCOB
IC or EquivalentST7920 or EQV
Interface8-bit/4-bit Parallel,3-SPI Serial
InterfaceParallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)75mA
Operating Temp-20ºC~70ºC
Storage Temperature-30ºC~80ºC
If accept customizedYes
RoHS Compliance
Yes




2.Interface pin connection:

ITEMSYMBOLLEVELFUNCTIONS
1VSS0VPower Ground
2VDD5.0VPower Supply For Logic
3V0-Contrast Adjust
4RSH/LH:Data  L:Command
5R/WH/LH:Read  L:Write
6EH,H->LEnable Signal
7-14DB0-DB7H/LData Bus
15PSBH/LH:Parallel Interface  L:Serial Interface
16/RESTLReset Signal
17VoutLPower Output For LCD Driving
18LEDA+5VPower Supply For LED Backlight
19LEDK0V
20NC-No Connection
