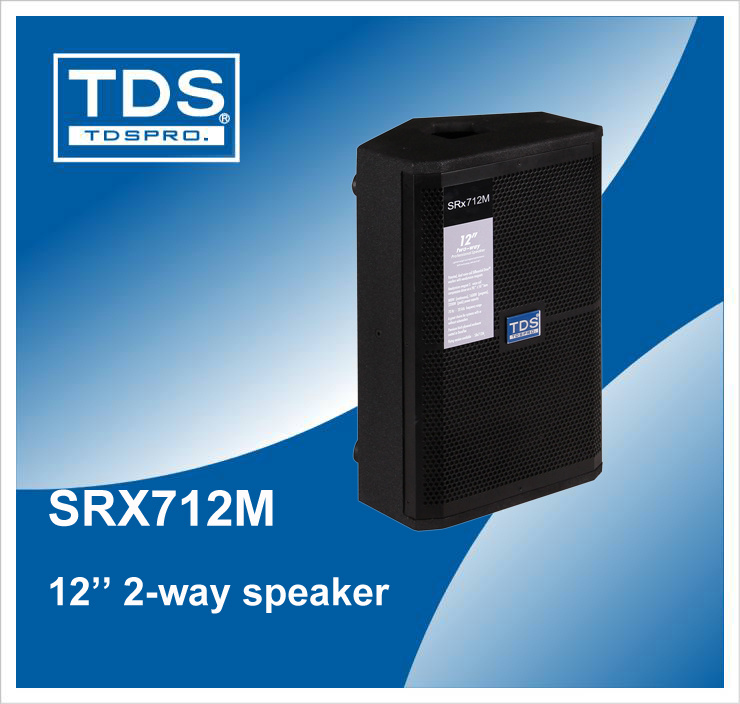

12inch Monitor Speaker SRX712M
SRX712M is a compact 12inch professional stage monitor. It very suitable for small scale performance. Especially for stage monitor usage.
Compact design cooperate the high efficiency transducer will bring you a new impression about stage monitor.
Features
Compact, lightweight enclosures.
Dual-angle pole socket for applications requiring tripod mounting.
High efficiency transducers.
12inch, 2-way professional speaker.
Applications
Monitor usage.
Fixed installation in club.
Background music reinforcement.
| System Type | 12inch, 2-way passive professional speaker. |
| Frequency Response | 83Hz --18 KHz ± 3dB |
| Sensitivity (1W/1M) | 96dB. |
| Impedance | 8 ohm |
| Rated Power | 500W (AES), 1000W (PEAK). |
| Dispersion | 90° (H) X 50° (V) |
| Drivers | LF driver 12' ' transducer (100mm) voice coil |
| HF driver 1' ' exit (44mm) voice coil. |
| Maximum SPL | 131dB continuous, 137dB peak. |
| Connectors | 2 x Neutrik NL4. |
| Dimensions | (W) 349mm x (H) 546mm x (D) 260mm |
| Weight | 15kg |
Why choose TDS products.
1. Raw material quality gurantee, ensure the products durability.
The speaker cabinet adopt 18mm birch plywood(except MP series). The woofer adopt UKM, 7DF paper cone. SUZUKI coil used in voice coil.
2. Delivery the products on time.
For normal speakers we can delivery out within 12 days. The line array system delivery out with in 18 days.
3. After-sale service commitment
When the products had the technical problems during usage, we will give timely answer.
We offer 1 year warranty for speaker and 2 years warranty for amplifiers. We will send the spare parts at the first time.
4. TDS PRO AUDIO FACTORY is a factory who willing to last 99 years old.
Now we have more than 80 customers in China and export to 20 countries. Our products export to Australia, Canada, Italy, Indonesia, India, Korea, Kuwait, Lebanon, Mexico, Malaysia, Myanmar, Mongolia, Spain, Singapore, South Africa , Senegal, Thailand, Uruguay, USA, Vietnam. We still have a long way to go in the next 91 years. We hope to go with you together in the future.
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
