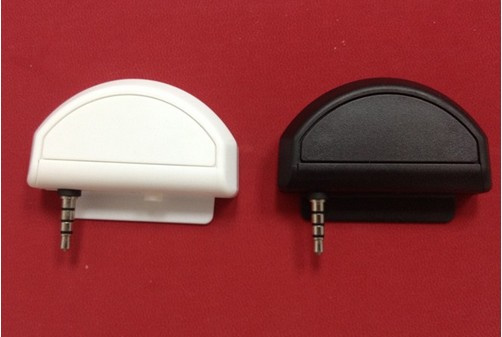

Welcome to use the iMagPay Card Reader. IMagPay is a magnetic stripe
Reader that communicates with mobile devices via the audio headphone jack.
Use your mobile device to read a variety of magnetic stripes, include credit
Cards, signature debit cards, gift cards, loyalty cards, driver's licenses, and ID
Badges. This user's manual provides detailed information about iMagPay,
Include: Key features, specifications, etc.
2: FEATURES
Professional structure design: With the professional structure design,
Beyond the traditional magnetic card reader, perfect combined with mobile
Drivers.
Safe and Secure: Provide safe and secure transactions, provide
Hardware based TDES encryption
Secret key Injection: Support to set up a key injection process and
Software to inject the key through the audio jack into the device
Provide DUKP KEY Management Green Initiative: No external power required
Superior magstripe reading performance: Offers exceptional card
Reading capabilities in a durable form factor
Easy to use: Simple and best to use, with a smart lanyard.
3: SPECIFICATIONS
Electrical
Interfaces: Audio headphone jack
Environmental
Operating Temperature: 0Cto55C (32F to 131F) non-condensing
Storage Temperature: -30Cto70C (-22F to 158F) non-condensing
IMagPay SPEC
Humidity: Maximum 95% non-condensing, dry storage
Reliability
Operating Life: 300, 000 cycles minimum
Warranty: One year, parts and labor
Mechanical
Media Thickness: 0.015 inches (0.381mm) to 0.035 inches (1.12mm)
Media Formats: ISO 7811, AAMVA, and CA DMV
