High performance power amplifer with CE UL approved

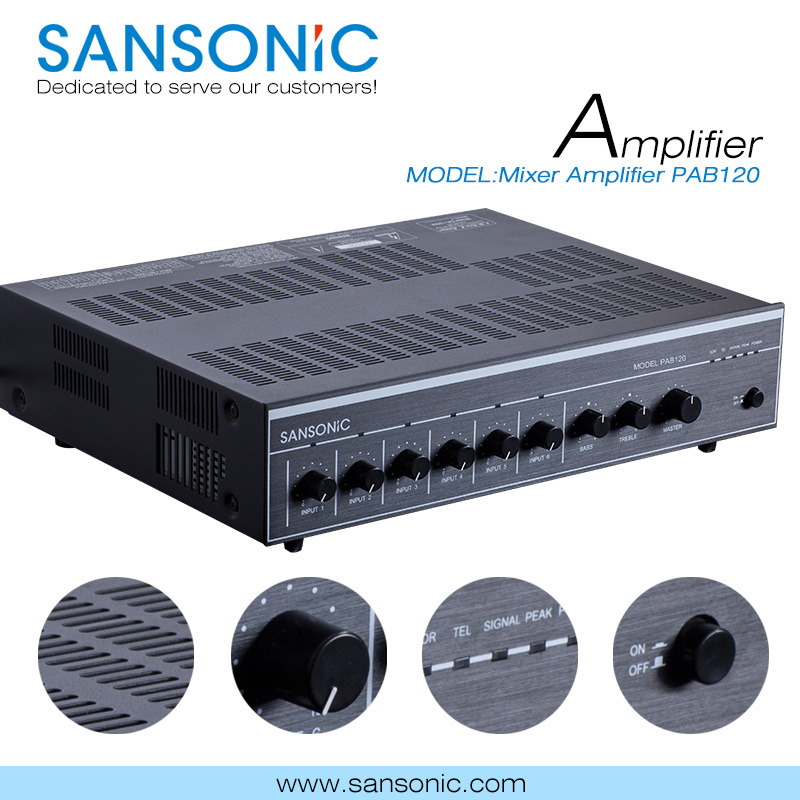

PAB120 mixer amplifier is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 60W/120W/240W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 25v, 70v and 4-16ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC1-6 line XLR microphone balanced or linear balanced input, AUX1-6 line RCA linear input
3. MOH,SOR,POW-in input;
4. MOH,Rec(Tape)Out,Booster out and pre output
5. constant pressure output 25V/70V and rated resistance 4-16Ω;
6. Signal lamp, peak lamp display
7. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Physic and environment parameter
Output
SPEAKER OUTPUTS: 4 ~ 16 , & 25 V, & 70.7 V (Any Combination Not To Exceed Rated Power)
MOH: Transformer-Isolated 600 , 0 ~ 1 V (Adjustable)
REC (TAPE) OUT: 600 , 1 V, Pre Tone Controls
BOOSTER OUT: 600 , 1 V, Pre Tone Controls
PRE-OUT: 600 , 1 V, Pre Tone Controls
TELEPHONE VOX MUTE: -40dB, VOX Sensitivity Adjustable
MIC 1 VOX: -37dB (Via Switch # 7 "Mute Send")
Input
Balanced:MIC XLR-F (1 - 6): 150 , 1 mV, or Line XLR-F (1 - 6):10k , 100 mV (MIC TRIM Adjustable)
Balanced:MIC Phoenix (1 - 6): 150 , 1 mV, or Line Phoenix (1 - 6):10k , 100 mV (MIC TRIM Adjustable)
Balanced:Telephone/Page: Shielded Transformer, 600 , 100mV
Unbalanced:Aux (1 - 6): 2-Channel Audio Electronically Summed to Mono Output, 47k , 100 mV, or DVD/CD (1-6):2-Channel Audio Electronically 47k , 360 mV
Unbalanced:MOH: 47k , 100 mV
Unbalanced:SOR: 47k , 100 mV
Unbalanced:Power-In: 47k , 1 V
Illusion power: (Switchable on Modules 1 thru 6): +24 VDC
VOX(Voice)mute circuit: VOX Sensitivity Adjustable;SOR VOX: -40dB (Via Circuit Board Jumper # 700);Remote Mute Terminal (Use w/ MIC 1), -37dB.
HPF(Switchable): 400Hz, -6dB/Octave (4 ~ 16 , 25 V, & 70.7 V Outputs Only)
