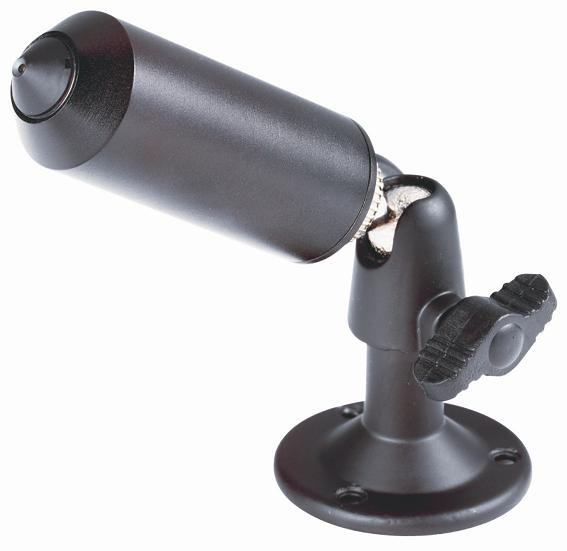

Mini CCTV Camera (MC-WA3142)

Name: Mini CCTV Camera (MC-WA3142)
Brand: ec-portal.com
SKU: 680127465
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Model Number MC-WA3142
Resolution Med-res.
Sensitivity (F1.2) 0.3Lux
Chip SS11
Pick-up Device NEW 1/3" CCD image sensor
Picture Elements NTSC: 512 x 492, PAL: 512 x 582
H. Sync Frequency NTSC: 15.734KHz, PAL: 15.625KHz
V. Sync. Frequency NTSC: 59.94 Hz, PAL: 50 Hz
Synchronization Internal
Horizontal Resolution 420 TV lines
Back Light Compensation Auto
Lens 4.3mm(Standard)
Gamma Correction 0.45
S/N Ratio More than 48 dB (AGC off)
Video Output 1.0 Vp-p, 75 Ohm
Dimension (mm) (ø )24 x 43(H)X128(L)mm
Power Supply (+/-10 %) DC12V
Power Consumption (+/-10 %) 110mA
Weight (g) 135g
Storage Temperature -30oC ~ +60oC
Operating Temperature -10oC ~ +55oC

Prod Model:	MC-WA3142
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor:	CCD
Type:	Digital
Optical Zoom:	CCTV Camera

Hongkong Masrtechina is a branch company of Masrtech in China, which a high-tech manufacturer dedicated to R&D of digital video recording (DVR) products and CCTV cameras. As a high-tech enterprise, has been dedicating to the R&D of CCTV Camera, Digital Video Recorder and Closed-Circuit Security Monitor for over 10 years. Through our unremitting efforts of R&D, manufactureing and marketing, we have become a leading manufacturer and supplier of security equipment in China.
