| Prod Model: |
YY-2200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Sound Field Force: |
Pressure Type |
| Directivity: |
Uni-direction |
| Signal Transmission: |
Wireless |
| Transducer Principle: |
Condenser Microphone |
| Application: |
Voice |

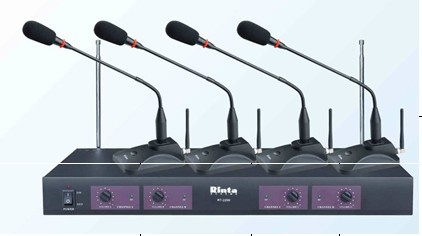

Product Description
Features:
VHF band 610-840 MHz, PLL synthesized.
200 pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.
Automatic Frequency Selection (AFS) with channel scan function.
Automatic Channel Targeting (ACT), the channels of the transmitter and receiver can easily synchronize.
Anti-jamming design with multi-channel, convenience of customers to using multiple systems in the meantime.
Advanced multi-function LCD display showing RF level, AF level, Group and Channel Frequency.
Individual volume controls for each microphone and sensitivity adjustment for system.
ELA 19-inch standard metal case.
XRL Balance outputs & 1/4" Unbalanced outputs.
Specifications:
Carrier Frequency: UHF 610-840 MHz, PLL synthesized
Oscillation mode: Phase-locked Loop (PLL) controlled
Modulation mode: FM
Frequency Response: 40Hz-18kHz(± 2dB)
Sensitivity: 5dBuV
S/N ratio: >105dB ( 1kHz-A )
T. H. D: <0.3% at 1kHz
Peak frequency deviation: 45kHz
Pick up Style: Dynamic
Battery Life: 8 Hours
Power Supply: External DC Power Supply, 0.35A, 12-15V DC
Dimension (mm): 420(W) X 195(D) X 44(H)
Package includes:
Dual channel UHF PLL receiver
Hand-Held Microphones
AC Adapter ( 110V~240V )
1/4" Audio cable
Paper Packing
Enping Mingsheng Electronic Co., Ltd. is located in Enping city which is the Pearl River Delta. GuoYi is an integrated enterprise with the ability to production, sales, engineering services and afte-sales services. The factory is majoring in producing and saling the professional loudspeaker, amplifier, microphone, and audio peripherals etc.
For many years experience, GuoYi has a strong technical force and high-quality staff team, has formed the strength of large-scale production, we use the International Technical in our development, mass-production, such as Italian CLIO measurement system, and before the shippment, the products must be controled by our best QC team, we promise could supply the goods with high quality and best price for you.
GYL is our old brand which is popular at home and a broad now, and the products are widely used in various types of entertainment, nightclubs, DISCO, hotels, restaurants, commercial buildings, factories, community gardens, schools, military barracks, supermarkets, fast food shops, cafes, railway stations, docks, tourist resort, theaters, stadiums, multi-purpose hall, clubs, park, plaza, government buildings and other places in the sound reinforcement system.
Our insist the spirit of "constantly strive for excellence, " and pursuits the purpose of "quality first, credit first, good service, customer"s satisfaction, "
Recruitment: Area agents and welcome OEM cooperation.
