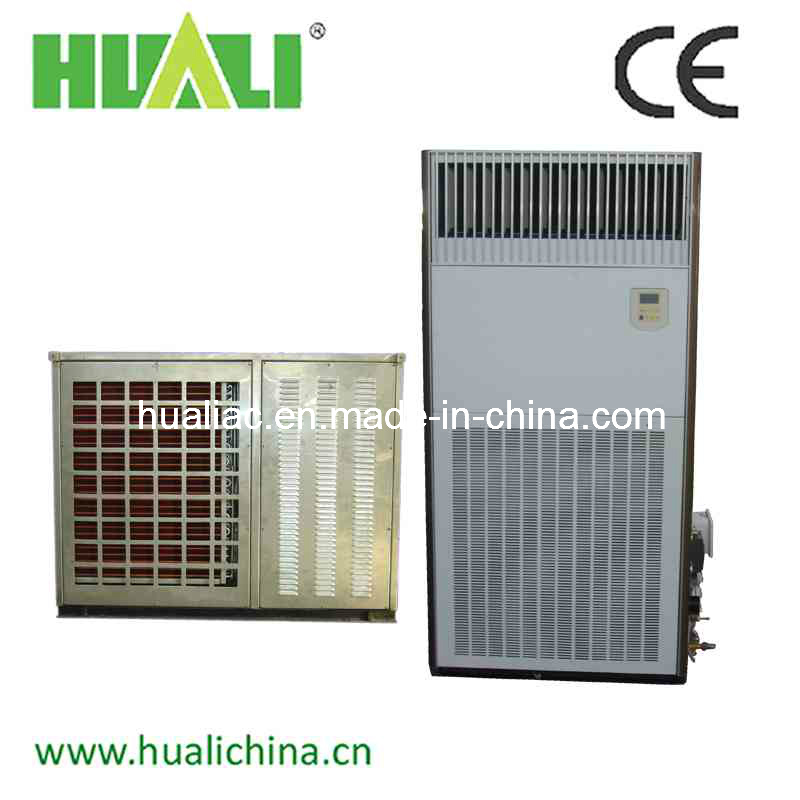

Marine Split Air Conditioner
1. Capacity range: 3.5kw-232kw
2. Marine centrifugal fan of hi-efficiency., l
Low noise and safe running hi-efficiency condensation; Anti-corrosion. Easy and safe operation through the touch screen. The unit is ready for running on turn-on of power.
3. Marine Split Air Conditioner includes water cooled and air cooled.
Marine Split Air Conditioner
| Main Technical Parameter of Navy or Marine Air(Water) Cooled Split Air Conditioner |
| Model / Type | FPAC-5A | FPAC-8A | FPAC-10A | FPAC-20A | FPAC-22A |
| Cooling capacity | 5.8 | 9.3 | 11.6 | 22.8 | 25.7 |
| Heating capacity | 5 | 8 | 9 | 12 | 15 |
| Circulation air volume m3/h | 1000 | 1700 | 2000 | 3800 | 4000 |
| Cooling input power KW | 1.9 | 2.8 | 3.2 | 6.2 | 6.9 |
| Heating input power KW | 5.2 | 8.2 | 9.2 | 12.5 | 15.5 |
| Refrigerant | R22 ( or R404a . R407C etc) |
| Indoor unit weight kg | 140 | 150 | 170 | 235 | 250 |
| Outdoor unit weight kg | 220 | 260 | 290 | 320 | 340 |
| Power supply | AC380V,3Ph,50Hz |
| Indoor(outdoor) unit pipe length m | Standard length of 5m,longer piping (max,15m)can be supplied at request. |
