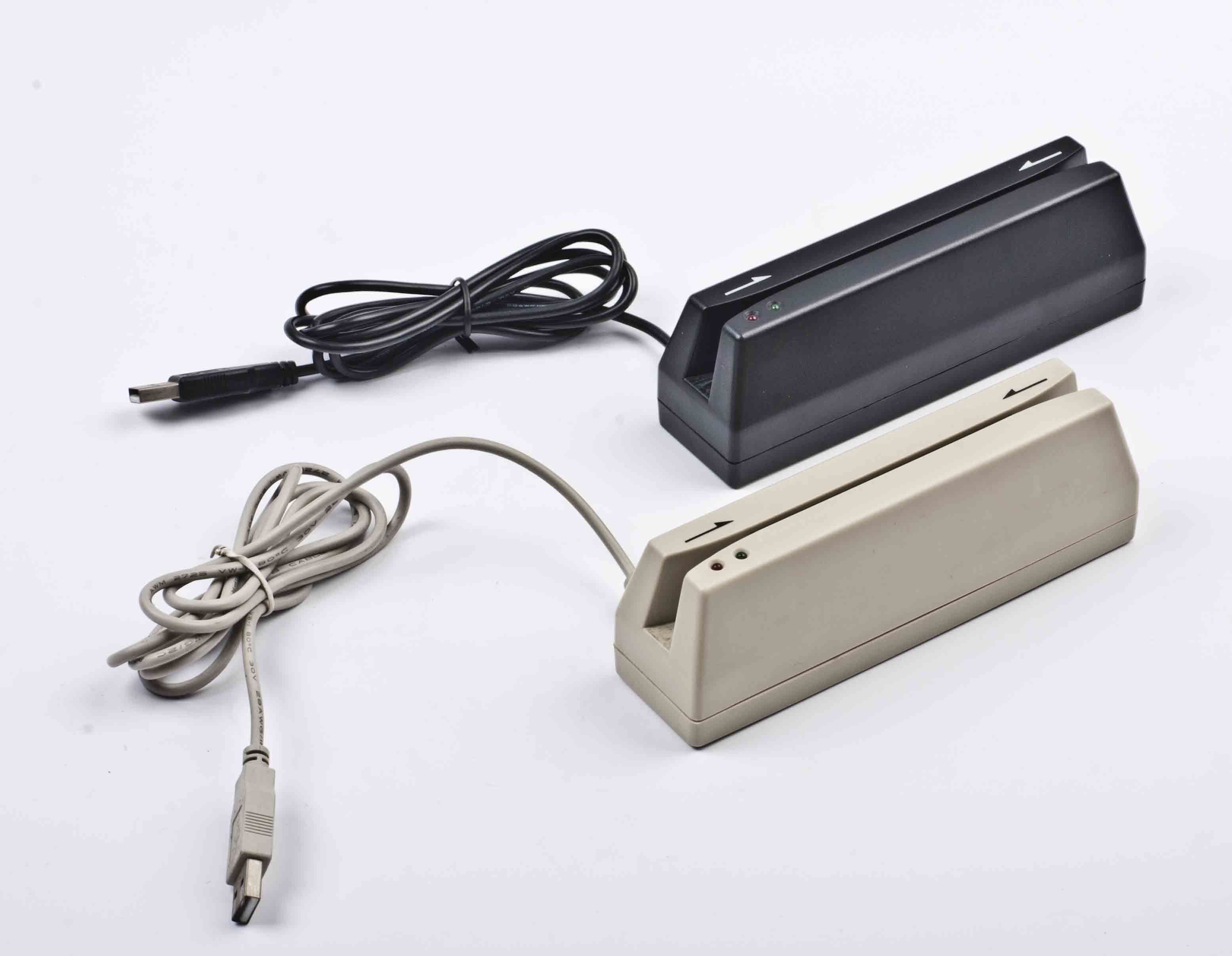

1. Basic specification
Dimensions: 40mm(W) x 154mm(L) x 48.6mm(H)
Weight: 190g(approx. )
Power Supply: +5V DV +/-5%
Ripple: 50MVP-p max.
Power consumption: 65mA (max. )
Operation Locus: Indoor use only
2. Technology datasheet:
Card Standard: ISO7811/7812
Track Position: ISO 1 (IATA) ISO 2 (ABA) ISO 3 (MINTS)
Recording Density 210 BPI 75 BPI 210 BPI
Recording Capacity: 79 Characters (7bits) 40 Characters (5bits) 107 Characters (5bits)
Reading Methods: F2F
Interfaces PS/2, RS232, USB
Card Thickness: Plastic 0.76 +/- 0.08mm
Head Function: Read only 1.5mm
Operation Speed: 10 ~ 150cm/sec
Life of Head: 500, 000 card passes (1 pass: One swipe)
Error Rate: 0.5% Less Than (JSE Test card)
Established in 1994, Shenzhen Expo Hong Trading Co., Ltd. is a professional exporter in computer, computer peripherals and other electornic products. With RMB 8.6 million registered capital, we have our own Import and export qualification.
In 2006, we registered HK company_ComPOS Tech Co., Ltd. and was engaged in POS field from design to assemble. Products range range from all-in-one touch POS PC, thermal receipt printer, barcode scanner, POS monitor and magnetic card reader etc. Portable bluetooth printer is our next main project.
To meet the market request, we are designing POS software which suitable for middle market and fast food field in Chinese and English.
Our mission is to offer our esteemed customers good quality products at favorable price, good communication and good after-sales service. Your choice is our glory and pride. No best, only better is our promise. Thanks for choosing ComPOS Tech!
