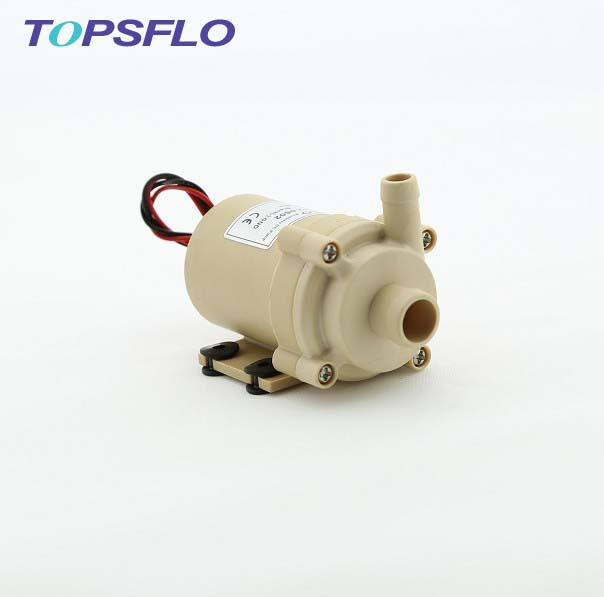

Low power consumption silent coffee maker pump/juice pump
Product Description
1. Life: Magnetic drive way more advanced to avoid the traditional rotor friction, longer life
Can be more than 30, 000 hours of life.
2. Low noise: ≤ 35dB, at 1 meter distance.
3. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work
4. Working conditions: Applying to indoor and outdoor under temperature 40degC.
5. High temperature: 100° C.
6. Advanced magnetically coupled technology, without any leakage for ever
7. Low power consumption.
8. Material: Durable magnetic rotor and fine ceramic shaft.
9. It can be customized according to customer`s technical requirements.
Caution: Do not operate for long time when there is no water in the pump.
Application:
1. Hot water circulating system
2. Water or oil cooling circulating system
3. Tea pot or coffee maker
4. Juice machines
5. Fountain
6. Water dispenser
7. Garden irrigation
8. Aquariums and ponds
9. Hydroponics
|
Model |
Product Code |
Max Flow Rate (L/M) |
Rated Voltage (DC) |
Current (A) |
Max Water Head (M) |
Power (W) |
|
|
TL-B02H-12-0501 |
5L |
12VDC |
0.3 |
1.3 |
3.6 |
|
|
TL-B02H-12-0602 |
6.5L |
12VDC |
0.46 |
2 |
5.5 |
|
TL-B02H |
TL-B02H-12-0803 |
8L |
12VDC |
0.76 |
3 |
9.2 |
|
|
TL-B02H-24-0602 |
6.5L |
24VDC |
0.3 |
2 |
7.5 |
|
|
TL-B02H-24-1205 |
12L |
24VDC |
0.8 |
5 |
19.2 |
|
|
pump itself meet: /H /F /PV (high temperature 100 celsius/ food grade / solar panel driven ) |
|
|
can be customized: /S (submersible) |
Founded in 2001, TOPS Micro Pump & Motor Technology Company is the leading and biggest manufacturer specializing in various precision micro pump and fluid comprehensive solution in China.
Our products includes mini DC brushless centrifugal pump, solar pump, mini diaphragm air pressure pump & vacuum pump, micro gear pump, which are widely used in household appliances, food and beverage industrial, automotive electronics, solar industrial, medical diagnostic equipment, laboratory analytical instruments, machine tool, computer& communications industrial and other fields.
TOPSFLO involves a integrated QA system and have very complete and sophisticated production and testing equipment to ensure quality products, quality is controlled by our 20 QC technicians, each of our products has to go through a series of liability tests from the raw material to the final products. The highest requirement in raw material procurement, manufacturing precision and strictest test regulation, which assured the superior quality of our products as well as the unanimous trust from our clients all over the world.
Our R&D team has more than 10 engineers and 12 years professional experience. They are quite accomplished in the field of electromagnetic, hydromechanics, and modern materials, they pay attention to the newest technology in the world and introduce it to our production, they have great research and development capability, design and develop several hundreds advanced micro DC pumps in TOPSFLO, the same time also according to customer requirements to design and develop new products, they are also ready to work on your customized specifications. Your sample can be ready in 7-15 days.
Our sale team have 10 years overseas experience in customer service, especially like OEM and ODM, and successful service for several Fortune 500 companies, can provide immediate and rapid solution and satisfactory answer to the clients.
We have obtained the ISO9 001: 2000 certification, and our products comply with the EU RoHS Directive and REACH regulations
Now, most of our products are exported to more than 60 countries and region such as: Sweden, Germany, UK, France, Italy, Holland, Poland, Australia, New Zealand, USA etc.
Today, TOSFLO have 10 production lines and 150 skilled workers, our monthly production capacity is 120, 000 PCS brushless DC pumps, 60, 000 PCS diaphragm pumps and 40, 000 gear pumps. Your volume orders are welcomed.
With excellent products and world class service, TOPSFLO has established long-term cooperation relationship with many famous global enterprises, and achieved the good reputation in micro DC pumps industry.
TOPSFLO will build the world-class micro pump enterprise and to be the world famous micro pump brand in the near future, let' S hand in hand to create brighter future together with friends of China and Overseas.
