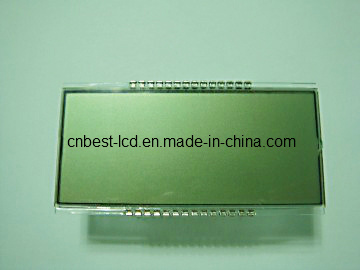

Usage For Car Instruments
Display Type: TN/Positive/Transmissive
Outline Dimension: 74.0*38.0*34.0/1.10mm
Viewing Size: 71.0*31.0mm
Viewing Angle: 12 O'clock
Connector Type: Pin
Pitch: 2.54mm
Driving Method: 1/4duty, 1/3bias
Operate Temp.: -35~65degree
Storage Temp.: -40~75degree
Power Supply Vol.: 5.0V; 75Hz
|
Usage |
For Car Instruments |
|
LCD mode |
TN/Positive/Transmissive |
|
Outline size |
74.0*38.0*34.0/1.10mm |
|
Viewing size |
71.0*31.0mm |
|
Viewing Angle |
12 O’ clock |
|
Driving Method |
1/4Duty 1/3Bias |
|
Pitch |
2.54mm |
|
Connector Type |
Metal Pin |
|
Operate Temp |
-35~65degree |
|
Storage Temp |
-40~75degree |
|
Power supply |
5.0V; 75HZ |
|
RoHS compliant product |
