| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Cooling Method: |
Direct Cooling |
| Certification: |
ISO |
Product Description

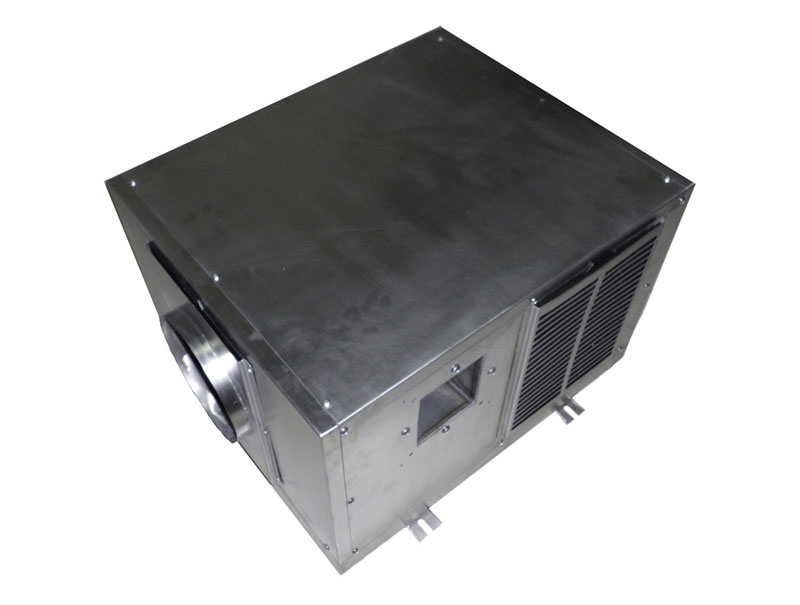

The detailed introduction and features for our lift air conditioner as below:
1. The shell is made of stainless steel, corrosion resistance, life is ten years.
2. Main parts: Adopt famous compressor and motor, Japanese high quality four-way reversing valve, hydrophilic fin, internal thread tube.
3. The functions include cooling, heating, ventilation and dehumidification. We cancel the electric heating device, use heat pump to heat, so the energy efficiency ratio is higher, and it is safer, more reliable.
4. Adopt independent fan on inside and outside, the outside adopt DC inverter motor, realize stepless speed adjustment, low energy consumption, low noise.
5. Adopt electrode type water level automatic control, ensure the effective atomization of condensed water, don't spill water in high humidity environment.
6. Use wireless remote control, LED display, display temperature directly, automatic fault diagnosis.
7. Inside and outside intake air can all be filtered by filter, block inhaling particles, keep the air clean.
8. Installation is simple.
|
Model |
KCR-16/DT |
KCR-20/DT |
|
Power supply |
220V/50HZ/1PH |
|
Refrigerant |
R22 |
Nominal capacity |
cooling |
W |
1600 |
2000 |
|
|
heating |
W |
1700 |
2100 |
Rated input power |
cooling |
W |
680 |
750 |
|
|
heating |
W |
660 |
780 |
Rated current |
cooling |
A |
3.6 |
3.9 |
|
|
heating |
A |
3.5 |
4.1 |
|
Air Circulation |
M3/h |
300 |
320 |
|
Noise in lift car |
db(A) |
≤ 45 |
≤ 48 |
|
Elevator air conditioner Noise |
db(A) |
≤ 52 |
≤ 53 |
|
Net dimension |
mm |
544*500*368 |
544*500*368 |
|
Packing dimension |
mm |
620*533*435 |
620*533*435 |
Shanghai Sealey Refrigeration Equipment Co., Ltd. Mainly specializes in designing and manufacturing refrigeration equipment, own "Sealey" trademark. We can supply normal air conditioner, solar hybrid air conditioner, elevator air conditioner, heat pump and fan coil. Our products have passed ISO9001 international quality management system, CCC and CE certificate. Our elevator air conditioner adopt Chinese advanced technology, has got patent certificate. Our solar air conditioner can meet Australian MEPS.
Our factory with the first-class producing and testing equipments. With good quality, Our air conditioner is recognized by the national quality and technical inspection quarantine bureau and once again won the certificate for the products exemption from quality surveillance in 2005. Besides, we have passed CCECS and been authorized "Contract-observing and trust-worthy unit " by industry and commerce administration.
Sealey company absorbs and digests the world advanced technology and management, pay high attention to quality engineering which lay solid foundation for enhancing enterprise awareness and expanding business. The company has long-term customers in China and overseas countries. We have exported to Australia, Russia, Togo, Pakistan, Egypt, Iran, UAE, Iraq, India and so on. Facing the new century, we strictly implement standardized management, take advanced technology and excellent professionals as the foothold of the company, try our best to develop high-technology and high quality products that meet market demand.
