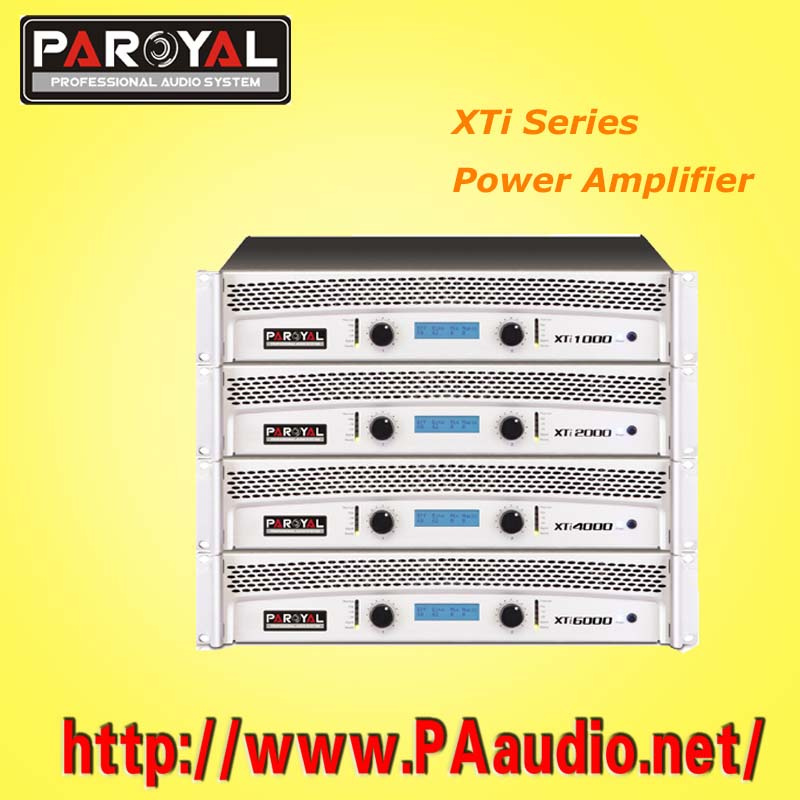

LED Display Amplifier (XTI2000), XTi1000, XTi4000, XTi6000 Power Amplifier, PRO amplifier system
|
SPECIFICATIONS |
XTi1000 |
XTi2000 |
XTi4000 |
XTi6000 |
|
|
STEREO MODE (Both Channels Driven) |
|
8 ohms |
|
|
|
|
|
FTC20Hz -20kHz, 0.1%THD |
300W |
500 W |
800 W |
1000W |
|
4 ohms |
|
|
|
|
|
FTC20Hz -20kHz, 0.1%THD |
500W |
700W |
1100W |
1600W |
|
2 ohms |
|
|
|
|
|
EIA 1kHz, 1%THD |
700 W |
1200W |
1500W |
1800W |
|
|
BRIDGE MONO MODE |
|
8 ohms |
|
|
|
|
|
FTC20 Hz -20 kHz, 0.1%THD |
1150W |
2050W |
2450W |
2900W |
|
4 ohms |
|
|
|
|
|
EIA 1kHz, 1%THD |
1850W |
2400W |
4000W |
4800W |
|
Signal to Noise, 20 Hz-20kHz |
100dB |
102dB |
104dB |
106dB |
|
|
ALL MODELS |
|
Distortion (Typical) |
|
|
20 Hz -20kHz: 10dB below rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
1.0kHz and below: full rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
Frequency Response |
20 Hz-20 kHz, ± 1 dB |
|
-3 dB points: 5 Hz - 50 kHz |
|
Damping Factor, 1kHz and below |
Greater than 300 at 8 ohms |
|
Input Impedance |
10k ohms unbalanced, 20k ohms balanced |
|
Input Clipping |
10 Vrms (+22 dB) |
|
Cooling |
Continuously variable-speed fan, rear-to-front air flow |
|
Connectors, each channel |
Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) |
|
TRS tip and XLR (pin 2 positive) |
|
Output: touch-proof binding posts and Neutrik® Speakon® |
|
Controls |
Front: AC switch, Ch. 1 and Ch. 2 gain knobs |
|
Rear: 10-position DIP switch |
|
Indicators |
Power-On: Green LED |
|
Signal: Yellow LED (1 per channel) |
|
Clip: Red LED (1 per channel) |
|
Amplifier Protection |
Stable into reactive or mismatched loads |
|
Load Protection |
On/off muting, AC coupling , triac crowbar , on each channel) |
|
Power Requirements |
100, 120, 230 VAC, 50-60 Hz |
|
Dimensions |
480*480*100(mm) |
