| Prod Model: |
BZTN900201-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Indoor |
| Type: |
TN |
| Feature: |
Tn Positive |

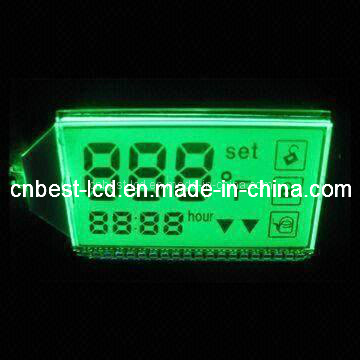

Product Description
Outline Dimension: 42.00x17.80/16.60x1.1mm
V. A. Size: 39.40*14.00mm
Display Type: TN/Positive
Polarizer Type: Transflective
Operative Voltage: 3.0V 75Hz
Driving Method: 1/2 duty 1/2 bias
Operative Temp.: -10 ~50 degree
Storage TEMP.: -20~70 degree
Connector Type: Metal pins.
|
Usage |
For Home Application |
|
LCD mode |
TN/Positive/transflective |
|
Outline size |
42.00*17.80/16.60*1.1mm |
|
Viewing size |
39.40*14.00mm |
|
Viewing Angle |
12 O’ clock |
|
Driving Method |
1/2Duty 1/2Bias |
|
Pitch |
2.54mm |
|
Connector Type |
Metal Pin |
|
Operate Temp |
-10~50degree |
|
Storage Temp |
-20~70degree |
|
Power supply |
3.0V, 75HZ |
|
RoHS compliant product |
